AE82-ELPGE (1983)
Toyota Corolla

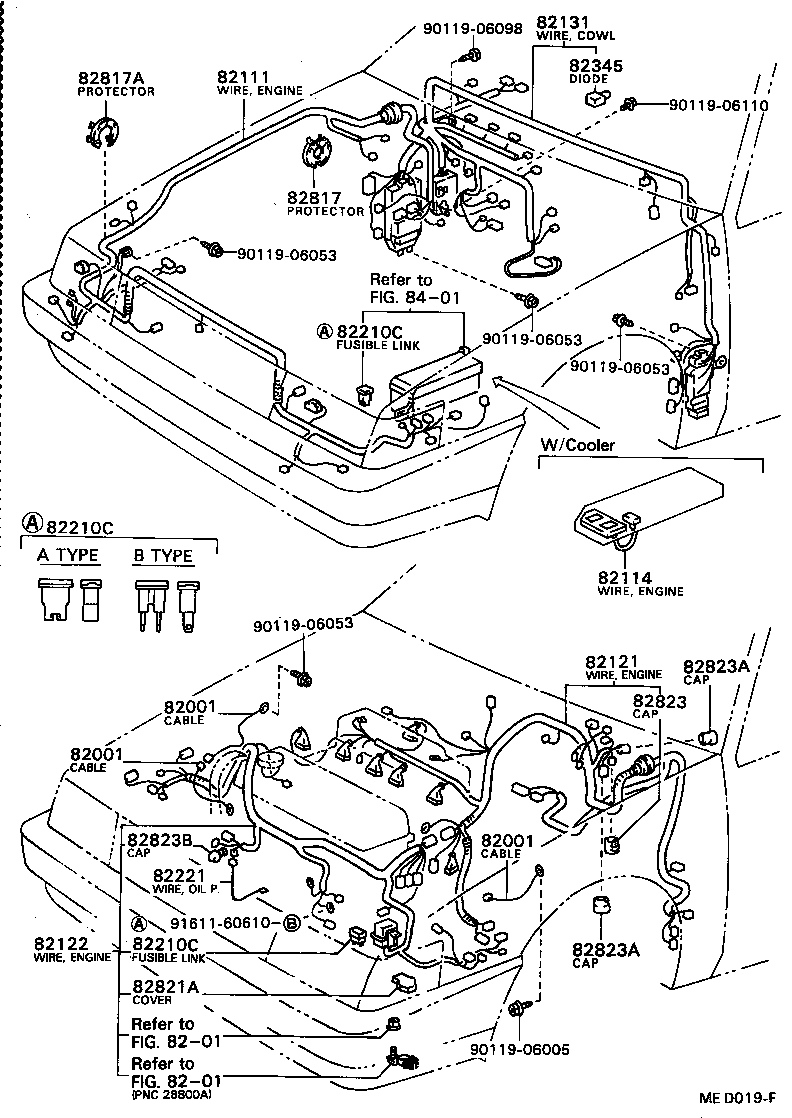

ILLUST NO. 1 OF 4(8305- )AE82..FXR,SE,SR,SX,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX L=170,ENGINE-FENDER,RH |
1 | ||
| 90980-07206 |
AE8# L=150,FENDER,RH & LH |
2 | ||
| 90980-07236 |
AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX L=170,ENGINE-FENDER,RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX L=170,ENGINE-FENDER,RH |
1 | ||
| 90980-07206 |
AE8# L=150,FENDER,RH & LH |
2 | ||
| 90980-07236 |
AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX L=170,ENGINE-FENDER,RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX L=170,ENGINE-FENDER,RH |
1 | ||
| 90980-07206 |
AE8# L=150,FENDER,RH & LH |
2 | ||
| 90980-07236 |
AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX L=170,ENGINE-FENDER,RH |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-12220 |
AE81,82..5D3 |
1 | ||
| 82111-12221 |
AE81,82..FXD,FXG,FXL,FXR,SX,ZX |
1 | ||
| 82111-12670 |
AE82..FXR,SE,ZX |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
AE8#,CE80,EE80 W/COOLER |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12060 |
AE82..4FC..(FXR,SR,SX,ZX) |
1 | ||
| 82121-12510 |
AE82..4FC..(FXR,SE,ZX) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-12270 |
AE82..4FC..(FXR,SE,ZX) |
1 | ||
| 82122-12272 |
AE82..4FC..(FXR,SE,ZX) |
1 | ||
| 82122-12271 |
AE82..4FC..(FXR,SE,ZX) |
1 | ||
| 82122-12220 |
AE82..4FC..(FXR,SR,SX,ZX) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-12420 |
AE82..SR,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 82131-12410 |
AE82 |
1 | ||
| 82131-12421 |
AE82..SR,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 82131-12411 |
AE82 |
1 | ||
| 82131-12422 |
AE82..FXR,SR,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 82131-12412 |
AE82..FXR,SR,SX,ZX |
1 | ||
| 82131-12880 |
AE82..FXR,SE,ZX |
1 | ||
| 82131-12890 |
AE82..FXR,SE,ZX W/DIGITAL SPEEDOMETER |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
AE82,CE80 80A,ｵｽ端子,黒,80A,B TYPE |
2 | ||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 90982-08223 |
AE82 30A,ｵｽ端子,ﾋﾟﾝｸ,30A,B TYPE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
AE82,CE80 80A,ｵｽ端子,黒,80A,B TYPE |
2 | ||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 90982-08223 |
AE82 30A,ｵｽ端子,ﾋﾟﾝｸ,30A,B TYPE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
AE82,CE80 80A,ｵｽ端子,黒,80A,B TYPE |
2 | ||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 90982-08223 |
AE82 30A,ｵｽ端子,ﾋﾟﾝｸ,30A,B TYPE |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16010 |
AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CE80;AE81,82..FXD,FXG,FXL,FXR,FXT,GT,SE,SR,SX,ZX 2-POLE CONNECTOR |
2 | ||
| 82345-12020 |
CE80;AE8#..FXG,FXR,FXT,GL,GT,SE,ZX 2-POLE CONNECTOR,BROWN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14360 |
AE8#,CE80,EE80 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE8#,CE80,EE80 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12180 |
AE82..FXR,SR,SX,ZX |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-12050 |
AE82..FXR,SE,SR,SX,ZX 1-POLE CONNECTOR(PLASTIC) |
1 | ||
| 82823-20010 |
AE82 1-POLE CONNECTOR(RUBBER) |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-14040 |
AE82 2-POLE CONNECTOR |
1 | ||
| 82823-30010 |
AE8#,EE80 4-POLE CONNECTOR |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-14040 |
AE82 2-POLE CONNECTOR |
1 | ||
| 82823-30010 |
AE8#,EE80 4-POLE CONNECTOR |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-22060 |
AE82..FXR,SE,ZX 1-POLE CONNECTOR(RUBBER) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-06098 | ||||
| 90119-06110 | ||||
| 91611-60610 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(8305- )5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12010 |
AE82..ZX |
1 | ||
| 82151-12020 |
AE82..GT,ZX W/*PW |
1 | ||
| 82151-12080 |
AE82..ZX W/DOOR ELECTRIC *RCM |
1 | ||
| 82151-12090 |
AE82..GT,ZX W/*PW & DOOR ELECTRIC *RCM |
1 | ||
| 82151-12150 |
AE82..4D,5D3 W/*PW & DOOR ELECTRIC *RCM |
1 | ||
| 82151-12130 |
AE82..4D,5D3 W/*PW |
1 | ||
| 82151-12140 |
AE8#,CE80..FXG,FXR,FXT,GT,SE,ZX |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82151-12060 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,ZX W/DOOR ELECTRIC *RCM |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12010 |
AE82..ZX |
1 | ||
| 82152-12060 |
AE82..GT,ZX W/*PW & DOOR ELECTRIC *RCM |
1 | ||
| 82152-12020 |
AE82..GT,ZX W/*PW |
1 | ||
| 82152-12050 |
AE82..ZX W/DOOR ELECTRIC *RCM |
1 | ||
| 82152-12120 |
AE82..4D,5D3 W/*PW & DOOR ELECTRIC *RCM |
1 | ||
| 82152-12100 |
AE82..4D,5D3 W/*PW |
1 | ||
| 82152-12110 |
AE8#,CE80..FXG,FXR,FXT,GT,SE,ZX |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82151-12060 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,ZX W/DOOR ELECTRIC *RCM |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-12010 |
AE82..ZX |
1 | ||
| 82153-12020 |
AE82..4D,5D3 |
1 | ||
| 82153-12030 |
AE82..GT,ZX W/POWER WINDOW |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-12010 |
AE82..ZX |
1 | ||
| 82154-12040 |
AE82..4D,5D3 |
1 | ||
| 82154-12020 |
AE82..GT,ZX W/POWER WINDOW |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-12090 |
AE82..ZX |
1 | ||
| 82161-12091 |
AE82..ZX |
1 | ||
| 82161-12520 |
AE82..ZX W/POWER WINDOW |
1 | ||
| 82161-12500 |
AE82..ZX |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12120 |
AE82..4FC..ZX |
1 | ||
| 82162-12400 |
AE82..4FC..(FXR,SE,ZX) |
1 | ||
| 82162-12420 |
AE82..4FC..(SE,ZX) W/POWER WINDOW |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12060 |
AE81,82,CE80..5D3 |
1 | ||
| 82171-12070 |
AE81,82,CE80..SX,ZX W/SUN ROOF |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12020 |
AE81,82,CE80..5D3 W/RR WIPER |
1 | ||
| 82184-12100 |
AE8#,CE80..5D3 W/RR WIPER |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12130 |
AE8#,CE80..5D3 W/RR WIPER |
1 | ||
| 82185-12020 |
AE81,82,CE80..5D3 W/RR WIPER |
1 | ||
| 82185-12070 |
AE81,82,CE80..5D3 W/RR WIPER |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12020 |
AE81,82,CE80..5D3 |
1 | ||
| 82186-12080 |
AE8#,CE80..5D3 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12080 |
AE8#,CE80..5D3 |
1 | ||
| 82187-12020 |
AE81,82,CE80..5D3 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-20320 |
AE82..ZX FR DOOR |
2 | ||
| 82817-20320 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,ZX FR DOOR |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-20320 |
AE82..ZX FR DOOR |
2 | ||
| 82817-20320 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,ZX FR DOOR |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20330 |
AE82..GT,SE,ZX RR DOOR |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20330 |
AE82..GT,SE,ZX RR DOOR |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-16100 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 4 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12250 | ||||
| 82711-12540 | ||||
| 82711-12740 | ||||
| 82711-12760 | ||||
| 82711-12790 | ||||
| 82711-16180 | ||||
| 82711-1A040 | ||||
| 82711-1A060 | ||||
| 82711-1A150 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-1A210 | ||||
| 82711-1A220 | ||||
| 82711-1A300 | ||||
| 82711-1A310 | ||||
| 82711-1A330 | ||||
| 82711-1A340 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-32060 | ||||
| 82711-32110 | ||||
| 82711-89104 | ||||
| 90461-08187 | ||||
ILLUST NO. 4 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-16460 | ||||
| 82711-1A350 | ||||
| 82711-1A390 | ||||
| 82711-20490 | ||||
| 82711-22090 | ||||
| 82819-32060 | ||||
ILLUST NO. 3 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AE8#,CE80,EE80 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82983-12010 |
AE8#,CE80,EE80 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-30010 |
AE8#,CE80,EE80 |
1 | ||
| 82982-12030 |
AE8#,CE80 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AE8#,CE80,EE80 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12010 |
AE82,CE80 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12010 |
AE82,CE80 |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-12030 | ||||
| 82983-12010 | ||||
| 82983-30010 | ||||
| 82984-22010 | ||||
| 82991-12010 | ||||
| 82991-12020 | ||||
