AE82-EHPXE (1984)
Toyota Corolla
Production
Oct 1984
-
Apr 1987
Engine
4AELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )3D,5D2

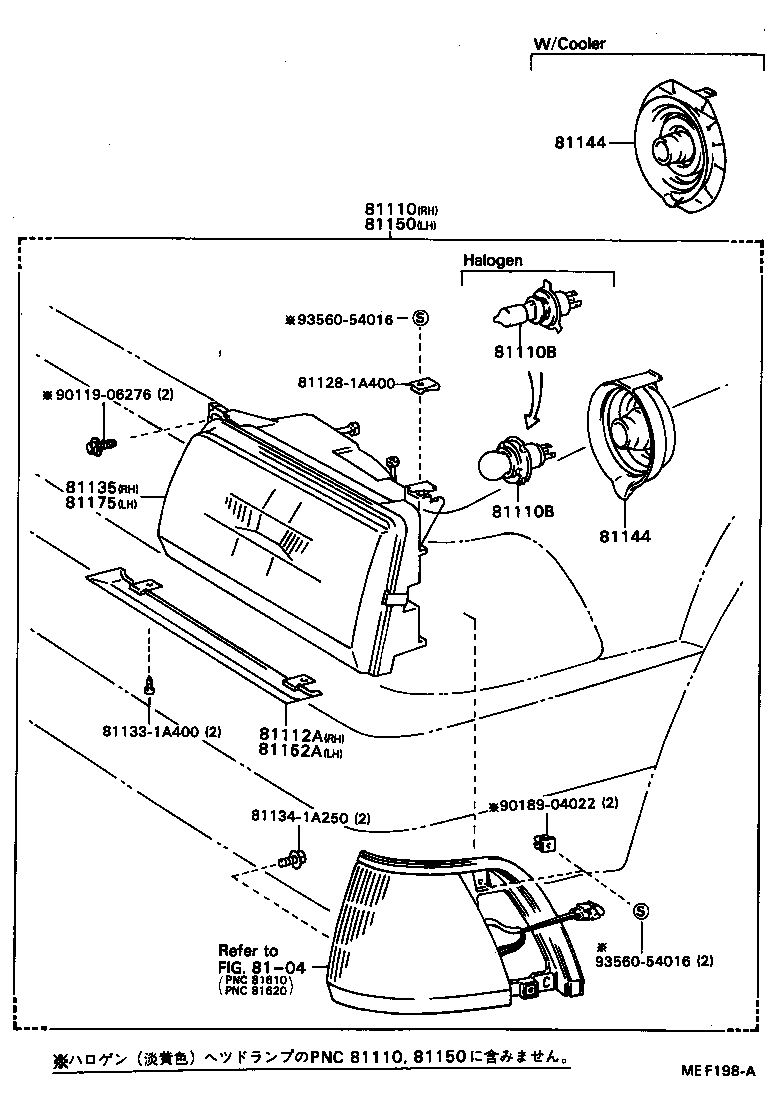

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80440 |
AE81,82,CE80,EE80..3D,5D2 HALOGEN(WHITE) |
1 | ||
| 81110-1A560 |
AE82..FXR,FXT HALOGEN(YELLOW) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
AE8#,CE80,EE80 12V 60/55W,*HAL *WH,HALOGEN(WHITE),12V 60/55W |
2 | ||
| 90981-13016 |
AE82..FXR,FXT,GT 12V 60/55W,*HAL *YE,HALOGEN(YELLOW),12V 60/55W |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
AE8#,CE80,EE80 12V 60/55W,*HAL *WH,HALOGEN(WHITE),12V 60/55W |
2 | ||
| 90981-13016 |
AE82..FXR,FXT,GT 12V 60/55W,*HAL *YE,HALOGEN(YELLOW),12V 60/55W |
2 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81112-1A400 |
AE81,82,CE80,EE80..3D,5D2 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81135-1A410 |
AE81,82,CE80,EE80..3D,5D2 HALOGEN |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-20730 |
AE8#,CE80,EE80 |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-20730 |
AE8#,CE80,EE80 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80432 |
AE81,82,CE80,EE80..3D,5D2 HALOGEN(WHITE) |
1 | ||
| 81150-1A390 |
AE82..FXR,FXT HALOGEN(YELLOW) |
1 | ||
| 81152A - RIM, HEADLAMP, LH | ||||
| 81152-1A300 |
AE81,82,CE80,EE80..3D,5D2 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81175-1A310 |
AE81,82,CE80,EE80..3D,5D2 HALOGEN |
1 | ||
| Common parts | ||||
| 81128-1A400 | ||||
| 81133-1A400 | ||||
| 81134-1A250 | ||||
| 90119-06276 | ||||
| 90189-04022 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 8104 | ||||
