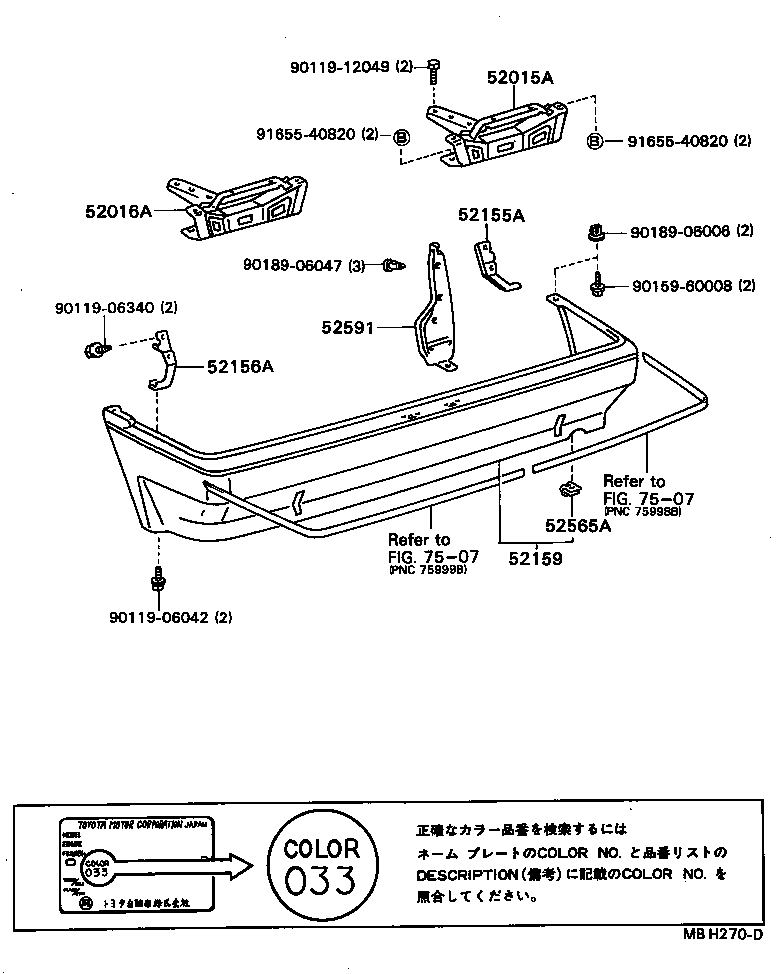

Toyota Corolla AE82 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12141	AE8#,CE80,EE80..3D,5D2	05/1985 - 04/1987	1
52015-12140	AE80,82,CE80;AE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX	05/1983 - 04/1985	1
52015-12141	AE8#,CE80	04/1985 - 05/1985	1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12140	AE80,82,CE80;AE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX	05/1983 - 04/1985	1
52016-12141	AE8#,CE80,EE80..3D,5D2	05/1985 - 04/1987	1
52016-12141	AE8#,CE80	04/1985 - 05/1985	1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12130	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12110	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
52159 - COVER, REAR BUMPER
52159-12280	AE81,82..3D,5D2 BLACK(041,147,3E6,4D2,8B7)	10/1984 - 05/1985	1
52159-12280	AE8#,CE80,EE80..FXD,FXL,FXR,FXT BLACK(4G5,6J4,8D4);BLACK(041,147,3E6,4D2)	05/1985 - 05/1986	1
52159-1290203	AE82..3D SILVER-M,SILVER METALLIC,147	10/1984 - 05/1986	1
52159-1290213	AE82..3D SILVER-M,SILVER METALLIC,164	05/1986 - 08/1986	1
52159-1290202	AE82..3D RED,RED,3E6	10/1984 - 04/1987	1
52159-12280	AE8#,CE80,EE80..FXD,FXL,FXR,FXT BLACK(8D7);BLACK(041,164,3E6,4G8)	05/1986 - 04/1987	1
52159-1290208	AE82..3D WHITE,WHITE,041	10/1984 - 04/1987	1
52159-1290223	AE82..FXT LIMITED,GRAY-M,DARK GRAY METALLIC,155	06/1986 - 04/1987	1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040	AE81,82,CE80,EE80..3D,5D2,5D3	04/1985 - 04/1987	8
52565-12040	AE80,82,CE80;AE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX	05/1983 - 04/1985	8
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12030	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
Common parts
90119-06042
90119-06340
90119-12049
90159-60008
90189-06006
90189-06047
91655-40820
Linked diagrams
7507

AE82-EGPQF (1984)

(8410- )3D,5D2
