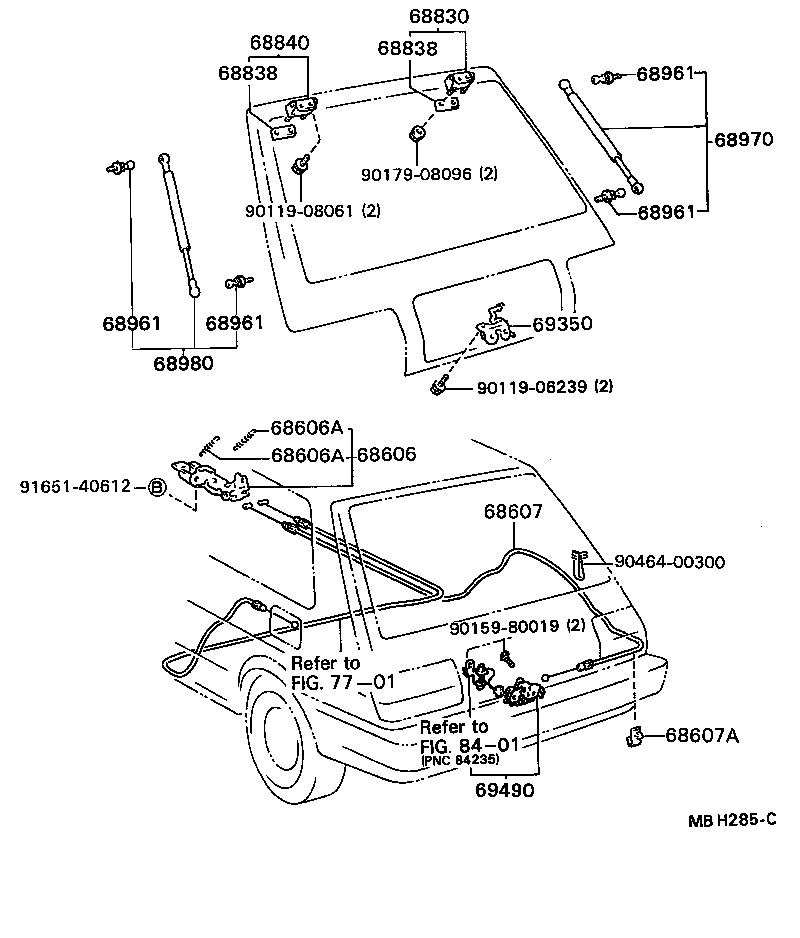

Toyota Corolla AE82 BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12060	AE81,82,CE80,EE80..3D,5D2,5D3	05/1983 - 04/1987	1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	AE81,82,CE80,EE80..3D,5D2,5D3	05/1983 - 04/1987	2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	AE81,82,CE80,EE80..3D,5D2,5D3	05/1983 - 04/1987	2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-12280	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010	AE81,82,CE80,EE80..3D,5D2,5D3	05/1983 - 04/1987	1
68830 - HINGE ASSY, BACK DOOR, RH
68801-12020	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021	AE81,82,CE80,EE80..3D,5D2,5D3	05/1983 - 04/1987	2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021	AE81,82,CE80,EE80..3D,5D2,5D3	05/1983 - 04/1987	2
68840 - HINGE ASSY, BACK DOOR, LH
68801-12020	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
68961 - BOLT, BACK DOOR STAY
68961-16010	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	4
68961 - BOLT, BACK DOOR STAY
68961-16010	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	4
68961 - BOLT, BACK DOOR STAY
68961-16010	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	4
68961 - BOLT, BACK DOOR STAY
68961-16010	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	4
68970 - STAY ASSY, BACK DOOR, RH
68950-19545	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
68980 - STAY ASSY, BACK DOOR
68950-19545	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
69350 - LOCK ASSY, BACK DOOR
69350-12090	AE81,82,CE80,EE80..3D,5D2	10/1984 - 04/1987	1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-16100	AE81,82,CE80,EE80..FXG,FXL,FXR,FXT	10/1984 - 04/1987	1
Common parts
90119-06239
90119-08061
90159-80019
90179-08096
90464-00300
91651-40612
Linked diagrams
7701
8401

AE82-EGMQF (1984)

(8410- )3D,5D2
