AE82-EEPQF (1984)
Toyota Corolla
Production
Oct 1984
-
Apr 1987
Engine
4AGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )FXT,GT

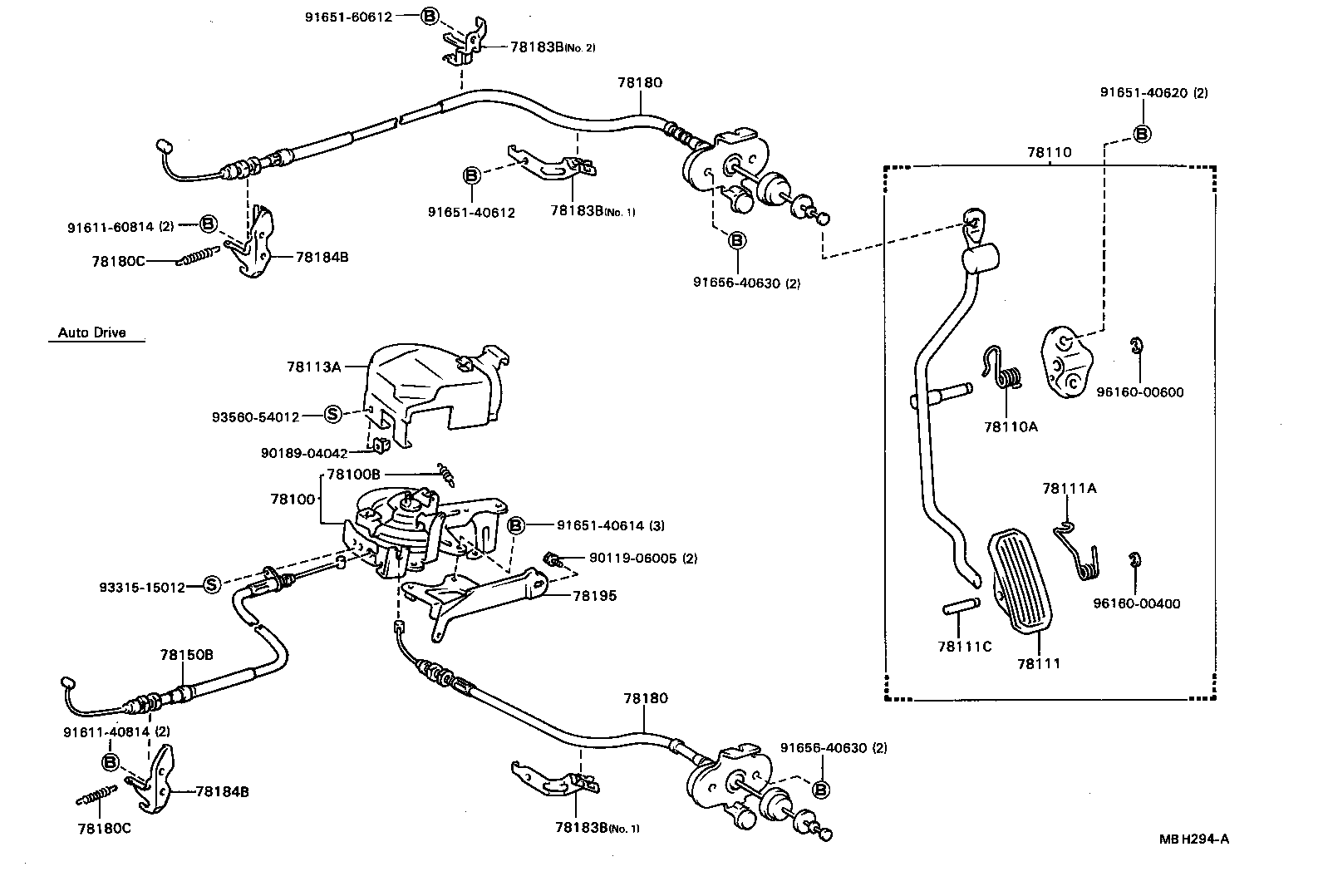

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-12050 |
AE82..FXR,FXT,GT,SE,SR,ZX |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
AE82..FXR,FXT,GT,SE,SR,ZX |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12020 |
AE82..4FC..(FXT,GT) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
AE82..4FC..(FXT,GT) |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE8#,CE80,EE80 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-20056 |
AE8#,CE80,EE80 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE8#,CE80,EE80 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-20120 |
AE82..FXR,FXT,GT,SE,SR,ZX |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-12080 |
AE82..FXT,GT |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12540 |
AE82..FXR,FXT,GT,SE,SR,ZX W/AUTO DRIVE |
1 | ||
| 78180-12660 |
AE82..FXT,GT W/O AUTO DRIVE |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12540 |
AE82..FXR,FXT,GT,SE,SR,ZX W/AUTO DRIVE |
1 | ||
| 78180-12660 |
AE82..FXT,GT W/O AUTO DRIVE |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-10016 |
AE82..FXT,GT |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-10016 |
AE82..FXT,GT |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12080 |
AE82..FXT,GT NO.2 |
1 | ||
| 78183-12060 |
AE82..FXT,GT NO.1 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12080 |
AE82..FXT,GT NO.2 |
1 | ||
| 78183-12060 |
AE82..FXT,GT NO.1 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12080 |
AE82..FXT,GT NO.2 |
1 | ||
| 78183-12060 |
AE82..FXT,GT NO.1 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12190 |
AE82..FXT,GT |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12190 |
AE82..FXT,GT |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-12010 |
AE82..FXR,FXT,GT,SE,SR,ZX |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90189-04042 | ||||
| 91611-40814 | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-60612 | ||||
| 91656-40630 | ||||
| 93315-15012 | ||||
| 93560-54012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
