AE82-EEPQF (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 4AGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

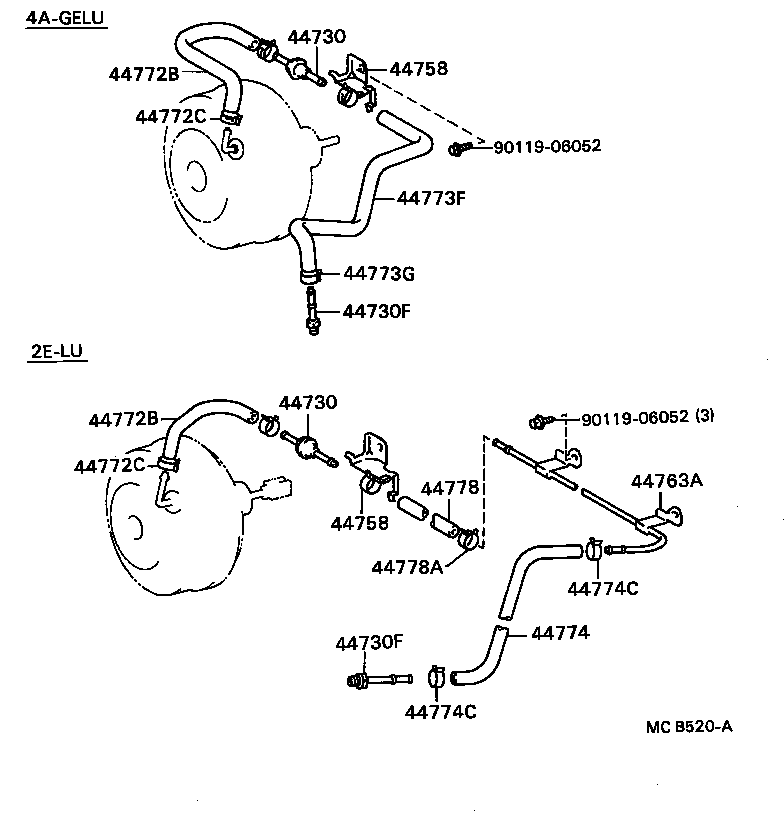

ILLUST NO. 2 OF 2(8410- )FXT,GT ; (8505- )EE80

Click highlighted areas on diagram

diagram 44730 44730 44730F 44730F 44758 44758 44763A 44772B 44772B 44772C 44772C 44773F 44773G 44774 44774C 44774C 44778 44778A 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE8#,EE80

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE8#,EE80

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51028

AE8#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51028

AE8#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12260

AE82..FXT,GT

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12260

AE82..FXT,GT

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12300

AE82..FXT,GT

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12300

AE82..FXT,GT

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AE8#,EE80

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

AE8#,EE80

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-12350

AE82..FXT,GT

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

AE82,CE80

 2
Common parts
90119-06052
