AE82-EEMQF (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

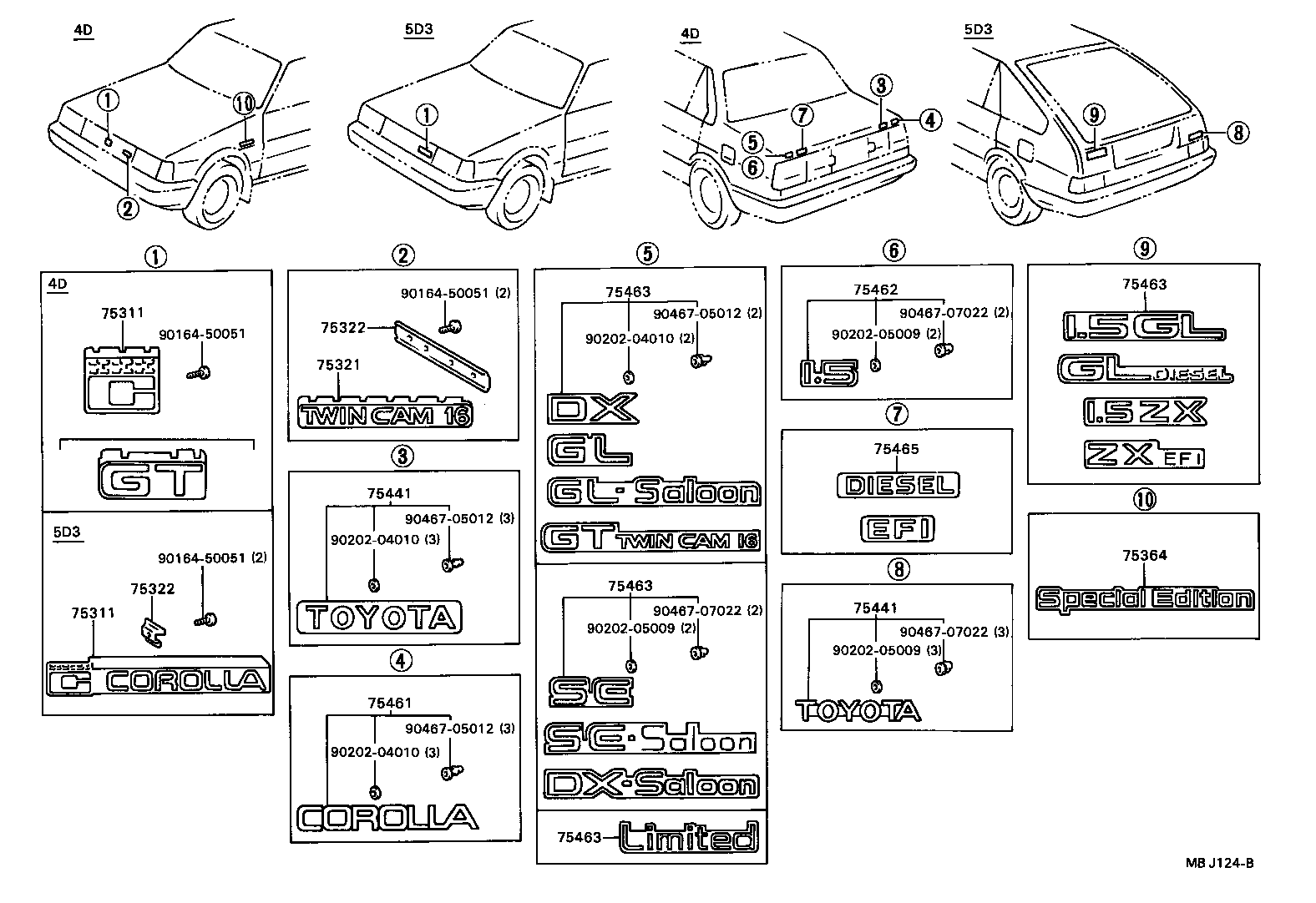

(8305-8505)4D,5D3

Click highlighted areas on diagram

diagram 75311 75321 75322 75441 75441 75461 75462 75463 75463 75463 75463 75465 9016450051 9016450051 9020204010 9020204010 9020204010 9020205009 9020205009 9020205009 9046705012 9046705012 9046705012 9046707022 9046707022 9046707022
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80028

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
75311-1A230

AE82..GT

 1
75311-1A370

AE82..GT

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-12170

AE82..GT

 1
75321-12110

AE82..GT

 1
75321-12171

AE82..GT

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-12030

AE82..GT

 2
75324-12040

AE82..GT

 1
75441 - PLATE, REAR NAME, NO.1
75441-12290

AE81..4D..MTM;AE80,82,CE80..4D;AE81..3FC..(GL,SE)

TOYOTA

 1
75441-12341

AE8#,CE80,EE80..4D

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75441-12290

AE81..4D..MTM;AE80,82,CE80..4D;AE81..3FC..(GL,SE)

TOYOTA

 1
75441-12341

AE8#,CE80,EE80..4D

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-12811

AE8#,CE80,EE80..4D

COROLLA

 1
75442-12770

AE81..4D..MTM;AE80,82,CE80..4D;AE81..3FC..(GL,SE)

COROLLA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
Common parts
90164-50051
90202-04010
90202-05009
90467-05012
90467-07022

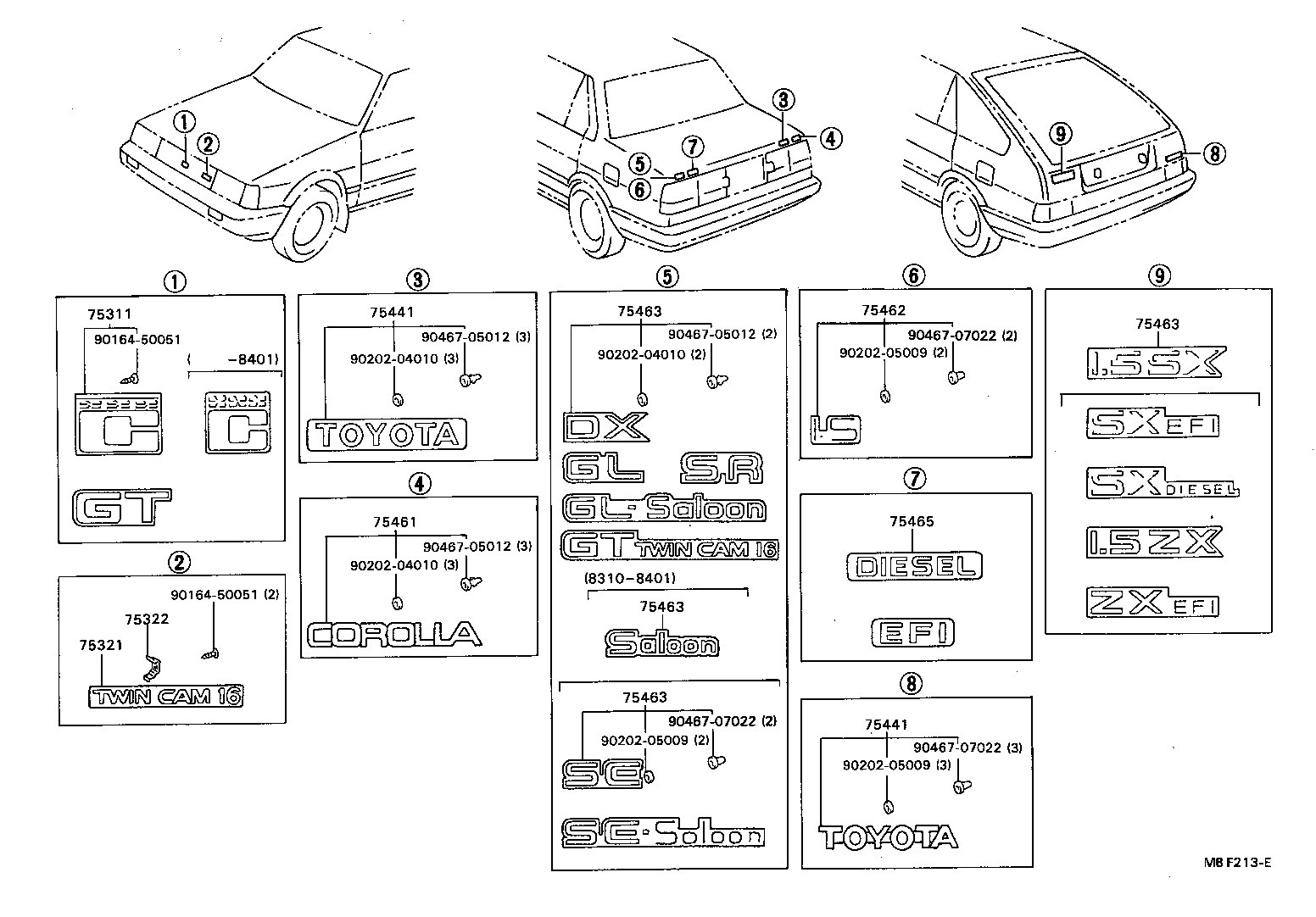

(8505- )4D,5D3

Click highlighted areas on diagram

diagram 75311 75311 75321 75322 75322 75364 75441 75441 75461 75462 75463 75463 75463 75463 75465 9016450051 9016450051 9016450051 9020204010 9020204010 9020204010 9020205009 9020205009 9020205009 9046705012 9046705012 9046705012 9046707022 9046707022 9046707022
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80028

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
75311-1A230

AE82..GT

 1
75311-1A370

AE82..GT

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80028

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
75311-1A230

AE82..GT

 1
75311-1A370

AE82..GT

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-12170

AE82..GT

 1
75321-12110

AE82..GT

 1
75321-12171

AE82..GT

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-12030

AE82..GT

 2
75324-12040

AE82..GT

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-12030

AE82..GT

 2
75324-12040

AE82..GT

 1
75441 - PLATE, REAR NAME, NO.1
75441-12290

AE81..4D..MTM;AE80,82,CE80..4D;AE81..3FC..(GL,SE)

TOYOTA

 1
75441-12341

AE8#,CE80,EE80..4D

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75441-12290

AE81..4D..MTM;AE80,82,CE80..4D;AE81..3FC..(GL,SE)

TOYOTA

 1
75441-12341

AE8#,CE80,EE80..4D

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-12811

AE8#,CE80,EE80..4D

COROLLA

 1
75442-12770

AE81..4D..MTM;AE80,82,CE80..4D;AE81..3FC..(GL,SE)

COROLLA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12730

AE82..GT

GT TWINCAM 16

 1
75443-12731

AE82..GT

GT TWINCAM 16

 1
Common parts
90164-50051
90202-04010
90202-05009
90467-05012
90467-07022
