AE82-EEMQF (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8410- )FXT,GT

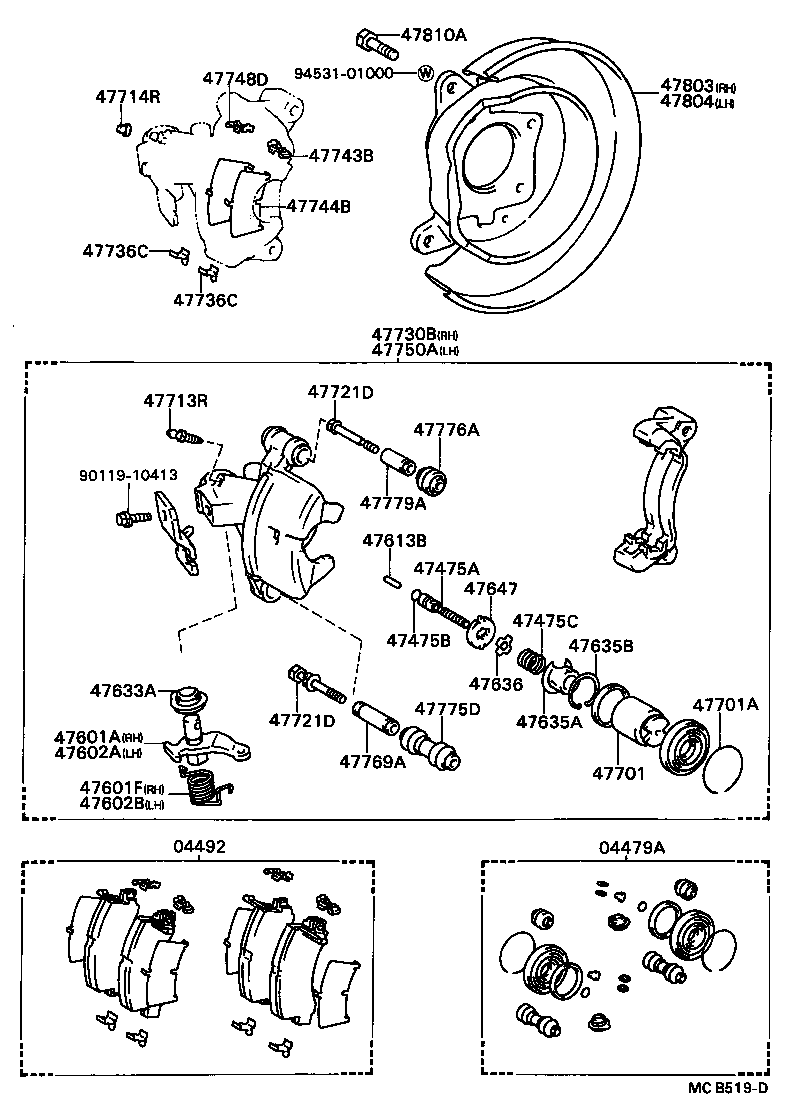

Click highlighted areas on diagram

diagram 04479A 04492 47475A 47475B 47475C 47601A 47601F 47602A 47602B 47613B 47633A 47635A 47635B 47636 47647 47701 47701A 47713R 47714R 47721D 47721D 47730B 47736C 47736C 47743B 47744B 47748D 47750A 47769A 47775D 47776A 47779A 47803 47804 47810A 9011910413 9453101000
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-12120

AE82..FXT,GT

 1
04479-12121

AE82..FXT,GT

 1
04492 - PAD KIT, DISC BRAKE, REAR
04492-12040

AE82..FXT,GT

 1
47475A - BOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)
47475-12030

AE82..FXT,GT

 2
47475B - RING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)
90301-09007

AE82..FXT,GT

 2
47475C - SPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)
90501-23051

AE82..FXT,GT

 2
47601A - CRANK SUB-ASSY, PARKING BRAKE, RH
47601-12020

AE82..FXT,GT

 1
47601F - SPRING, TORSION(FOR PARKING BRAKE CRANK RH)
90508-32020

AE82..FXT,GT

 1
47602A - CRANK SUB-ASSY, PARKING BRAKE, LH
47602-12020

AE82..FXT,GT

 1
47602B - SPRING, TORSION(FOR PARKING BRAKE CRANK LH)
90508-32021

AE82..FXT,GT

 1
47613B - STRUT, PARKING BRAKE(FOR REAR BRAKE)
47613-12020

AE82..FXT,GT

 2
47633A - BOOT, PARKING BRAKE CRANK
47633-12010

AE82..FXT,GT

 2
47635A - RETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
47635-12020

AE82..FXT,GT

 2
47635B - RING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)
90521-32002

AE82..FXT,GT

 2
47636 - PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
47636-12010

AE82..FXT,GT

 2
47647 - STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)
47647-12010

AE82..FXT,GT

 2
47701 - PISTON SUB-ASSY, REAR DISC BRAKE
47701-12020

AE82..FXT,GT

 2
47701A - RING, SET(FOR DISC BRAKE PISTON, REAR)
90522-45001

AE82..FXT,GT

 2
47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

AE82..FXT,GT

 2
47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

AE82..FXT,GT

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-08431

AE82..FXT,GT

*8−1.25PX62−20,*8-1.25PX62-20

 2
90109-08098

AE82..FXT,GT

*8−1.25PX56−15,*8-1.25PX56-15

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-08431

AE82..FXT,GT

*8−1.25PX62−20,*8-1.25PX62-20

 2
90109-08098

AE82..FXT,GT

*8−1.25PX56−15,*8-1.25PX56-15

 2
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-12280

AE82..FXT,GT

 1
47736C - PLATE, REAR DISC BRAKE PAD GUIDE
47736-12030

AE82..FXT,GT

 4
47736C - PLATE, REAR DISC BRAKE PAD GUIDE
47736-12030

AE82..FXT,GT

 4
47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47743-12030

AE82..FXT,GT

 2
47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47744-12070

AE82..FXT,GT

 4
47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-12090

AE82..FXT,GT

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-12280

AE82..FXT,GT

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-28010

AE82..FXT,GT

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-14010

AE82..FXT,GT

 2
47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE)
47776-12010

AE82..FXT,GT

 2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-12010

AE82..FXT,GT

 2
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-12020

AE82..FXT,GT

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-12020

AE82..FXT,GT

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90101-10089

AE82..FXT,GT

 4
Common parts
90119-10413
94531-01000

ILLUST NO. 2 OF 2(8410- )FXT,GT

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-12031

AE82..FXT,GT

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-12010

AE82..FXT,GT

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12010

AE82..FXT,GT

 1
