AE82-EEMQF (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8509)

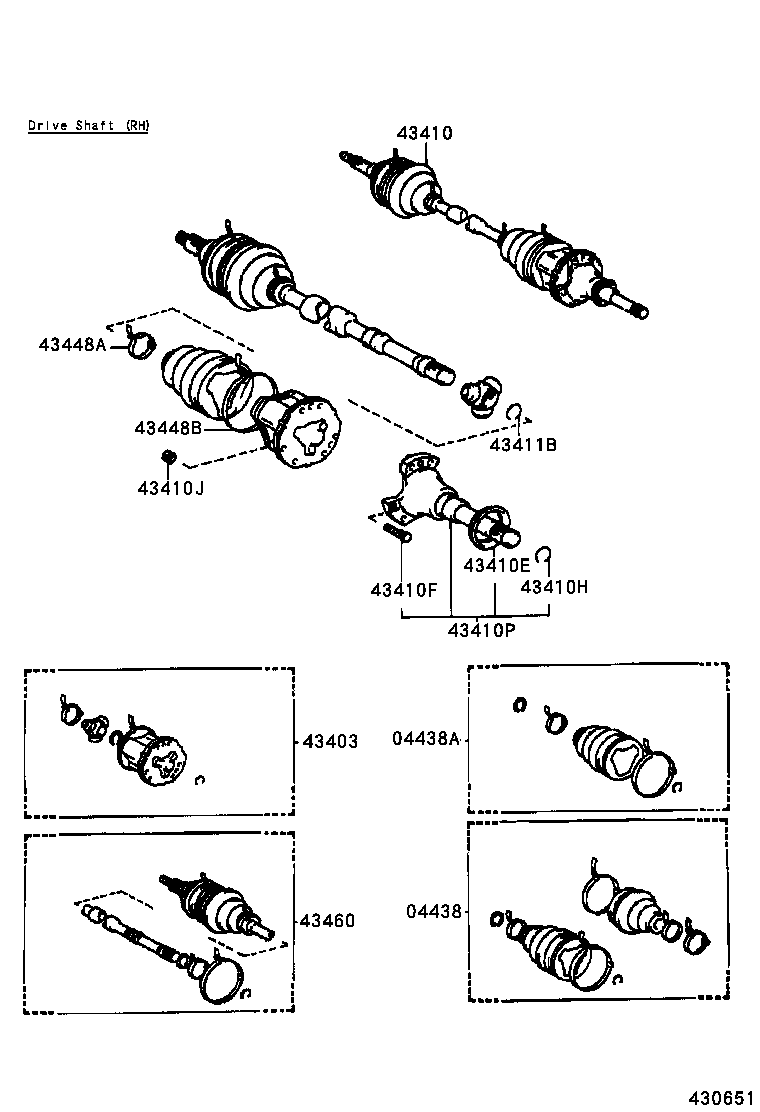

Click highlighted areas on diagram

diagram 04438 04438A 43403 43410 43410E 43410F 43410H 43410J 43410P 43411B 43448A 43448B 43460
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12020

AE8#

 2
04438-17020

AE82..5F..(FXT,GT)

 2
04438-17021

AE82..5F..(FXT,GT)

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-17030

AE82..5F..(FXT,GT)

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-39025

AE82..5F..(FXT,GT)

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12040

AE82..5F..(FXT,GT)

 1
43410-12020

AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
43410-12090

AE82..5F..(FXT,GT)

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-12010

AE8#,EE80

 2
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

AE8#,CE80,EE80

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-26002

AE8#,EE80

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

AE8#,CE80,EE80

 12
43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH
41304-17010

AE82..5F..(FXT,GT)

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

CE80;AE82..5F..(FXT,GT)

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CE80;AE82..5F..(FXT,GT)

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CE80;AE82..5F..(FXT,GT)

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19045

AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
43460-19125

AE82..5F..(FXT,GT)

 1
43460-19105

CE80;AE82..5F..(FXT,GT)

 1
43460-19135

AE82..5F..(FXT,GT)

 1

(8509-8601)5F..FXT,GT ; (8510- )CE80 ; (8601-)FXT,GT ; (8603- )EE80

Click highlighted areas on diagram

diagram 04438 04438A 43403 43410 43410E 43410F 43410H 43410J 43410P 43411B 43447A 43447B 43448A 43448B 43460 43474 43474A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12020

AE8#

 2
04438-17020

AE82..5F..(FXT,GT)

 2
04438-17021

AE82..5F..(FXT,GT)

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-17030

AE82..5F..(FXT,GT)

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-39025

AE82..5F..(FXT,GT)

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12040

AE82..5F..(FXT,GT)

 1
43410-12020

AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
43410-12090

AE82..5F..(FXT,GT)

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-12010

AE8#,EE80

 2
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

AE8#,CE80,EE80

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-26002

AE8#,EE80

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

AE8#,CE80,EE80

 12
43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH
41304-17010

AE82..5F..(FXT,GT)

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

CE80;AE82..5F..(FXT,GT)

 2
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CE80;AE82..5F..(FXT,GT)

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CE80;AE82..5F..(FXT,GT)

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CE80;AE82..5F..(FXT,GT)

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CE80;AE82..5F..(FXT,GT)

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19045

AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
43460-19125

AE82..5F..(FXT,GT)

 1
43460-19105

CE80;AE82..5F..(FXT,GT)

 1
43460-19135

AE82..5F..(FXT,GT)

 1
43474 - DAMPER, DRIVE SHAFT
43474-12010

AE82..FXT,GT

 1
43474-12010

AE82..5F..(FXT,GT)

 1
43474-12020

AE82..FXT,GT

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

AE82..5F..(FXT,GT)

 1
42345-14010

AE82..FXT,GT

 1
