AE82-EEMQF (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )4AGELU

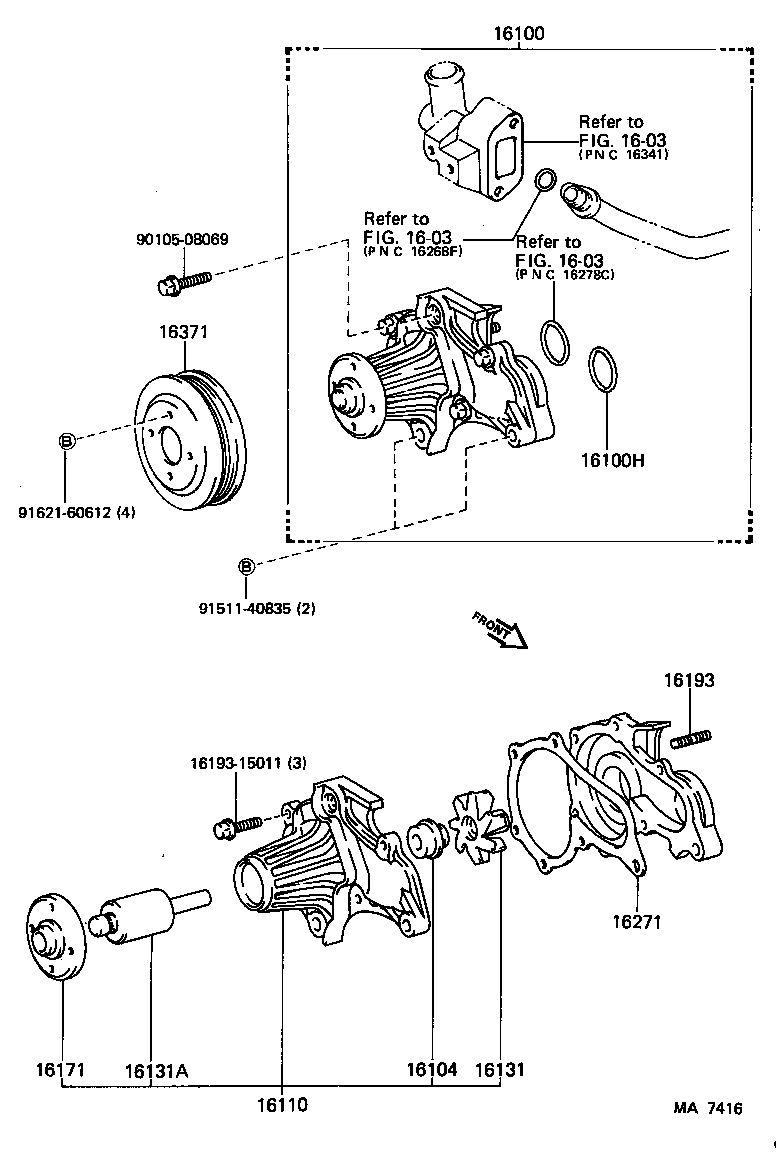

Click highlighted areas on diagram

diagram 1603 1603 1603 16100 16100H 16104 16110 16131 16131A 16171 16193 1619315011 16271 16371 9010508069 9151140835 9162160612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19115

4AGELU..AE82

 1
16100H - RING, O(FOR WATER PUMP)
96711-24035

2ALU,3ALU,4A#..AE8#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-16020

4AGELU..AE82

 1
16131 - ROTOR, WATER PUMP
16131-16010

4AGELU..AE82

 1
16131A - BEARING, WATER PUMP
90369-35021

2ALU,3ALU,4A#..AE8#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-15020

4AGELU..AE82

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
92122-60816

2ALU,3ALU,4A#..AE8#

 2
16271 - GASKET, WATER PUMP
16124-15010

2ALU,3ALU,4A#..AE8#

 1
16371 - PULLEY, FAN
16371-16030

4AGELU..AE82

 1
Common parts
16193-15011
90105-08069
91511-40835
91621-60612
Linked diagrams
1603
