AE81-ELMSS (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

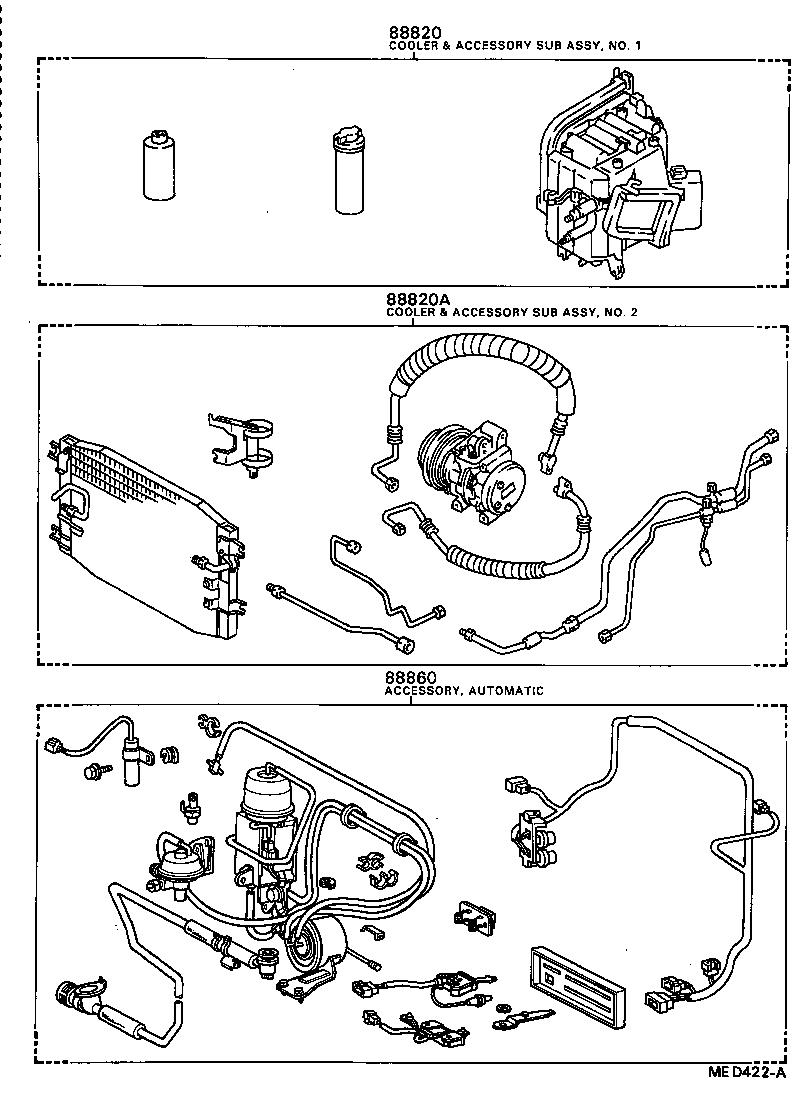

diagram 88820 88820A 88860
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-12010

AE8#,CE80

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-12010

AE81..GL,SE,SX,ZX

 1
88830-12030

AE81..MTM

 1
