AE81-ELMSS (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2ALU,3ALU

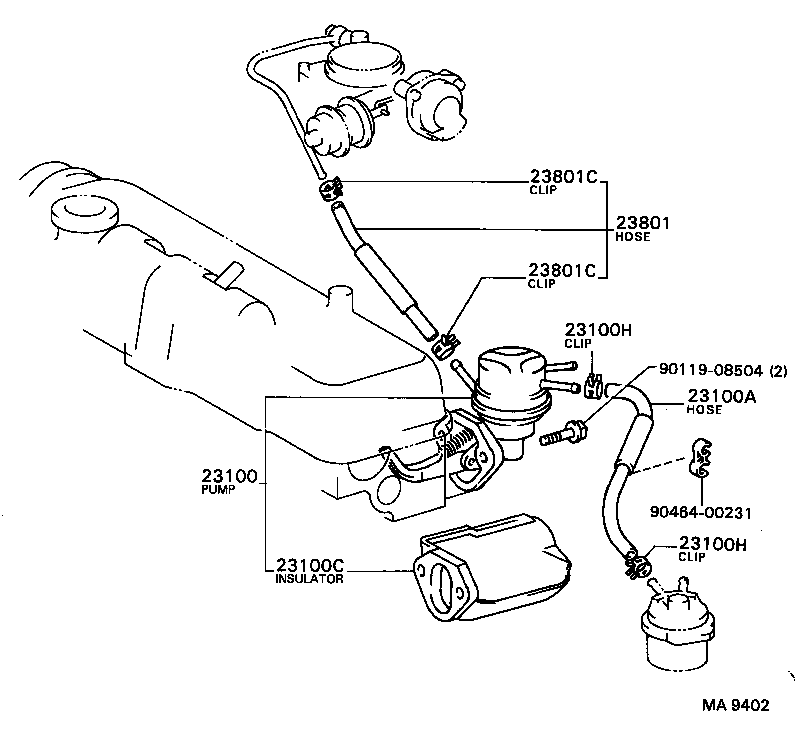

Click highlighted areas on diagram

diagram 23100 23100A 23100C 23100H 23100H 23801 23801C 23801C 9011908504 9046400231
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19195

2ALU,3ALU..AE80,81

 1
23100A - HOSE, FUEL
23271-15070

2ALU,3ALU..AE80,81

 1
23100C - INSULATOR, FUEL PUMP
23915-15010

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2ALU,3ALU..AE80,81

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2ALU,3ALU..AE80,81

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15010

2ALU,3ALU..AE80,81

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2ALU,3ALU..AE80,81

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2ALU,3ALU..AE80,81

 2
Common parts
90119-08504
90464-00231
