AE81-ELMSS (1983)
Toyota Corolla
(8305- )2ALU,3ALU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

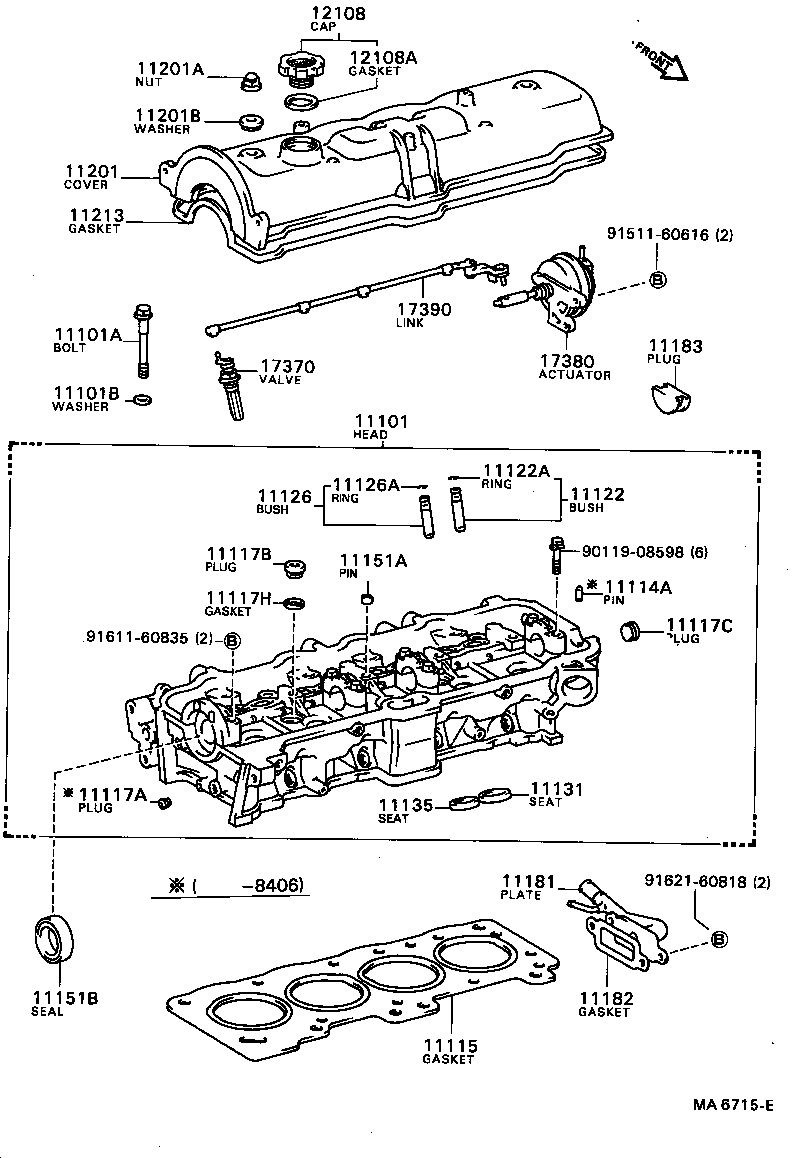

| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90109-10025 |
2ALU,3ALU,4AELU..AE8# *10-1.25PX97.5-22 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
2ALU,3ALU,4A#..AE8# |
10 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90254-03003 |
3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-15060 |
3ALU..AE81 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-51002 |
3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX |
6 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
2ALU,3ALU,4AELU..AE8# |
2 | ||
| 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90344-54002 |
2ALU,3ALU,4AELU..AE8# |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2ALU,3ALU,4AELU..AE8# |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-15020 |
2ALU,3ALU,4AELU..AE8# STD,STD |
4 | ||
| 11123-15020 |
2ALU,3ALU,4AELU..AE8# O/S 0.05,O/S 0.05 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-10001 |
2ALU,3ALU,4AELU..AE8# |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-15020 |
2ALU,3ALU,4AELU..AE8# O/S 0.05,O/S 0.05 |
4 | ||
| 11126-15020 |
2ALU,3ALU,4AELU..AE8# STD,STD |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-10001 |
2ALU,3ALU,4AELU..AE8# |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-15010 |
2ALU,3ALU..AE80,81 STD,STD |
4 | ||
| 11132-15010 |
2ALU,3ALU..AE80,81 O/S 0.03,O/S 0.03 |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-15020 |
2ALU,3ALU,4AELU..AE8# STD,STD |
4 | ||
| 11136-15020 |
2ALU,3ALU,4AELU..AE8# O/S 0.03,O/S 0.03 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2ALU,3ALU,4AELU..AE8# 長さ=8,外径=11 |
13 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35003 |
3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX |
1 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-15011 |
2ALU,3ALU,4AELU..AE8# |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-15010 |
2ALU,3ALU,4AELU..AE8# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
2ALU,3ALU,4AELU..AE8# |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
2ALU,3ALU,4AELU..AE8# |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-15040 |
2ALU,3ALU..AE80,81 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70010 |
2ALU,3ALU,4A#..AE8# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2ALU,3ALU,4A#..AE8# |
1 | ||
| 17370 - VALVE ASSY, SWIRL CONTROL | ||||
| 17370-15010 |
2ALU,3ALU..AE80,81 |
4 | ||
| 17380 - ACTUATOR ASSY, SWIRL CONTROL | ||||
| 17380-15010 |
2ALU,3ALU..AE80,81 |
1 | ||
| 17390 - LINK ASSY, SWIRL CONTROL | ||||
| 17390-15010 |
2ALU,3ALU..AE80,81 |
1 | ||
| Common parts | ||||
| 90119-08598 | ||||
| 91511-60616 | ||||
| 91611-60835 | ||||
| 91621-60818 | ||||
