AE81-ELMGS (1983)
Toyota Corolla

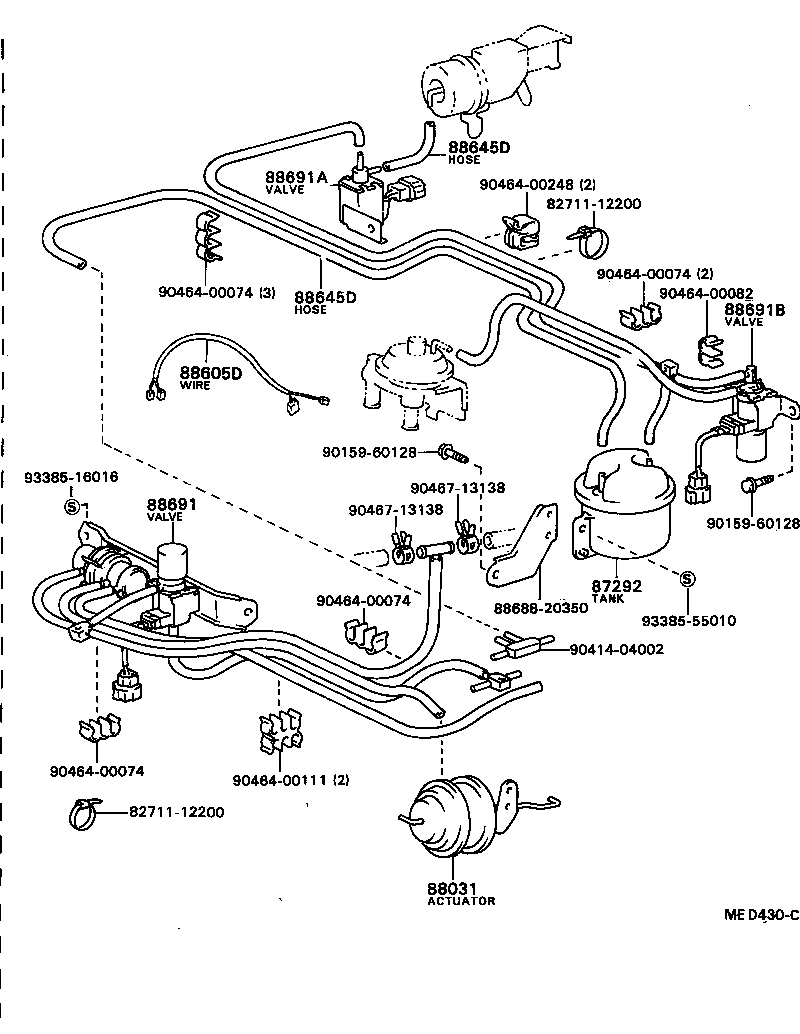

(8305-8505)AE80,81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 88683-16010 |
AE82;AE81,CE80..FXG,SE,ZX |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12131 |
AE80,81 |
1 | ||
| 88031-12130 |
AE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 88605D - WIRE, AIR CONDITIONER | ||||
| 88605-12520 |
AE81,CE80..FXG,SE,ZX W/*AAC |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10430 |
AE82;AE81,CE80..FXG,SE,ZX *H,L=120,ﾏｰｸ=#4,W/*AAC |
1 | ||
| 90445-08210 |
AE81..FXG,SE,ZX *H,L=1100,W/*AAC |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10430 |
AE82;AE81,CE80..FXG,SE,ZX *H,L=120,ﾏｰｸ=#4,W/*AAC |
1 | ||
| 90445-08210 |
AE81..FXG,SE,ZX *H,L=1100,W/*AAC |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-12290 |
AE80,81 |
1 | ||
| 88690-12410 |
AE81 |
1 | ||
| 88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE) | ||||
| 88690-12330 |
AE82;AE81,CE80..FXG,SE,ZX |
1 | ||
| 88691B - VALVE, MAGNET (FOR WATER VALVE) | ||||
| 88690-12350 |
AE81,CE80..FXG,SE,ZX |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88688-20350 | ||||
| 90159-60128 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00111 | ||||
| 90464-00248 | ||||
| 90467-13138 | ||||
| 93385-16016 | ||||
| 93385-55010 | ||||

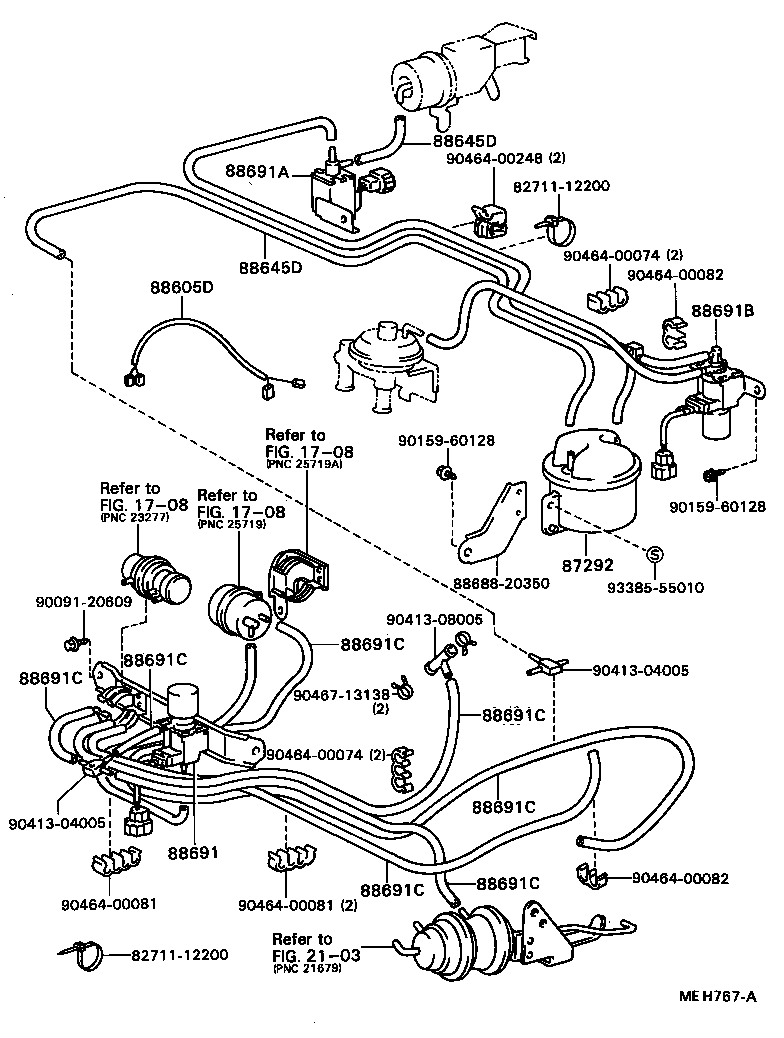

(8505- )AE81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 88683-16010 |
AE82;AE81,CE80..FXG,SE,ZX |
1 | ||
| 88605D - WIRE, AIR CONDITIONER | ||||
| 88605-12520 |
AE81,CE80..FXG,SE,ZX W/*AAC |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10430 |
AE82;AE81,CE80..FXG,SE,ZX *H,L=120,ﾏｰｸ=#4,W/*AAC |
1 | ||
| 90445-08210 |
AE81..FXG,SE,ZX *H,L=1100,W/*AAC |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10430 |
AE82;AE81,CE80..FXG,SE,ZX *H,L=120,ﾏｰｸ=#4,W/*AAC |
1 | ||
| 90445-08210 |
AE81..FXG,SE,ZX *H,L=1100,W/*AAC |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-12290 |
AE80,81 |
1 | ||
| 88690-12410 |
AE81 |
1 | ||
| 88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE) | ||||
| 88690-12330 |
AE82;AE81,CE80..FXG,SE,ZX |
1 | ||
| 88691B - VALVE, MAGNET (FOR WATER VALVE) | ||||
| 88690-12350 |
AE81,CE80..FXG,SE,ZX |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11430 |
AE81 MARK=#14,*H,L=100 |
1 | ||
| 95411-11260 |
AE81 MARK=#12,*H,L=510 |
1 | ||
| 95411-11430 |
AE81 MARK=#14,*H,L=60 |
1 | ||
| 95411-19930 |
AE81 *H,L=220,ﾏｰｸ=#* |
1 | ||
| 95411-11460 |
AE81 MARK=#14,*H,L=330 |
1 | ||
| 95411-19960 |
AE81 *H,L=480,ﾏｰｸ=#* |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11430 |
AE81 MARK=#14,*H,L=100 |
1 | ||
| 95411-11260 |
AE81 MARK=#12,*H,L=510 |
1 | ||
| 95411-11430 |
AE81 MARK=#14,*H,L=60 |
1 | ||
| 95411-19930 |
AE81 *H,L=220,ﾏｰｸ=#* |
1 | ||
| 95411-11460 |
AE81 MARK=#14,*H,L=330 |
1 | ||
| 95411-19960 |
AE81 *H,L=480,ﾏｰｸ=#* |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11430 |
AE81 MARK=#14,*H,L=100 |
1 | ||
| 95411-11260 |
AE81 MARK=#12,*H,L=510 |
1 | ||
| 95411-11430 |
AE81 MARK=#14,*H,L=60 |
1 | ||
| 95411-19930 |
AE81 *H,L=220,ﾏｰｸ=#* |
1 | ||
| 95411-11460 |
AE81 MARK=#14,*H,L=330 |
1 | ||
| 95411-19960 |
AE81 *H,L=480,ﾏｰｸ=#* |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11430 |
AE81 MARK=#14,*H,L=100 |
1 | ||
| 95411-11260 |
AE81 MARK=#12,*H,L=510 |
1 | ||
| 95411-11430 |
AE81 MARK=#14,*H,L=60 |
1 | ||
| 95411-19930 |
AE81 *H,L=220,ﾏｰｸ=#* |
1 | ||
| 95411-11460 |
AE81 MARK=#14,*H,L=330 |
1 | ||
| 95411-19960 |
AE81 *H,L=480,ﾏｰｸ=#* |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11430 |
AE81 MARK=#14,*H,L=100 |
1 | ||
| 95411-11260 |
AE81 MARK=#12,*H,L=510 |
1 | ||
| 95411-11430 |
AE81 MARK=#14,*H,L=60 |
1 | ||
| 95411-19930 |
AE81 *H,L=220,ﾏｰｸ=#* |
1 | ||
| 95411-11460 |
AE81 MARK=#14,*H,L=330 |
1 | ||
| 95411-19960 |
AE81 *H,L=480,ﾏｰｸ=#* |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11430 |
AE81 MARK=#14,*H,L=100 |
1 | ||
| 95411-11260 |
AE81 MARK=#12,*H,L=510 |
1 | ||
| 95411-11430 |
AE81 MARK=#14,*H,L=60 |
1 | ||
| 95411-19930 |
AE81 *H,L=220,ﾏｰｸ=#* |
1 | ||
| 95411-11460 |
AE81 MARK=#14,*H,L=330 |
1 | ||
| 95411-19960 |
AE81 *H,L=480,ﾏｰｸ=#* |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11430 |
AE81 MARK=#14,*H,L=100 |
1 | ||
| 95411-11260 |
AE81 MARK=#12,*H,L=510 |
1 | ||
| 95411-11430 |
AE81 MARK=#14,*H,L=60 |
1 | ||
| 95411-19930 |
AE81 *H,L=220,ﾏｰｸ=#* |
1 | ||
| 95411-11460 |
AE81 MARK=#14,*H,L=330 |
1 | ||
| 95411-19960 |
AE81 *H,L=480,ﾏｰｸ=#* |
2 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88688-20350 | ||||
| 90091-20609 | ||||
| 90159-60128 | ||||
| 90413-04005 | ||||
| 90413-08005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 90467-13138 | ||||
| 93385-55010 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2103 | ||||
