AE81-ELMGS (1983)
Toyota Corolla

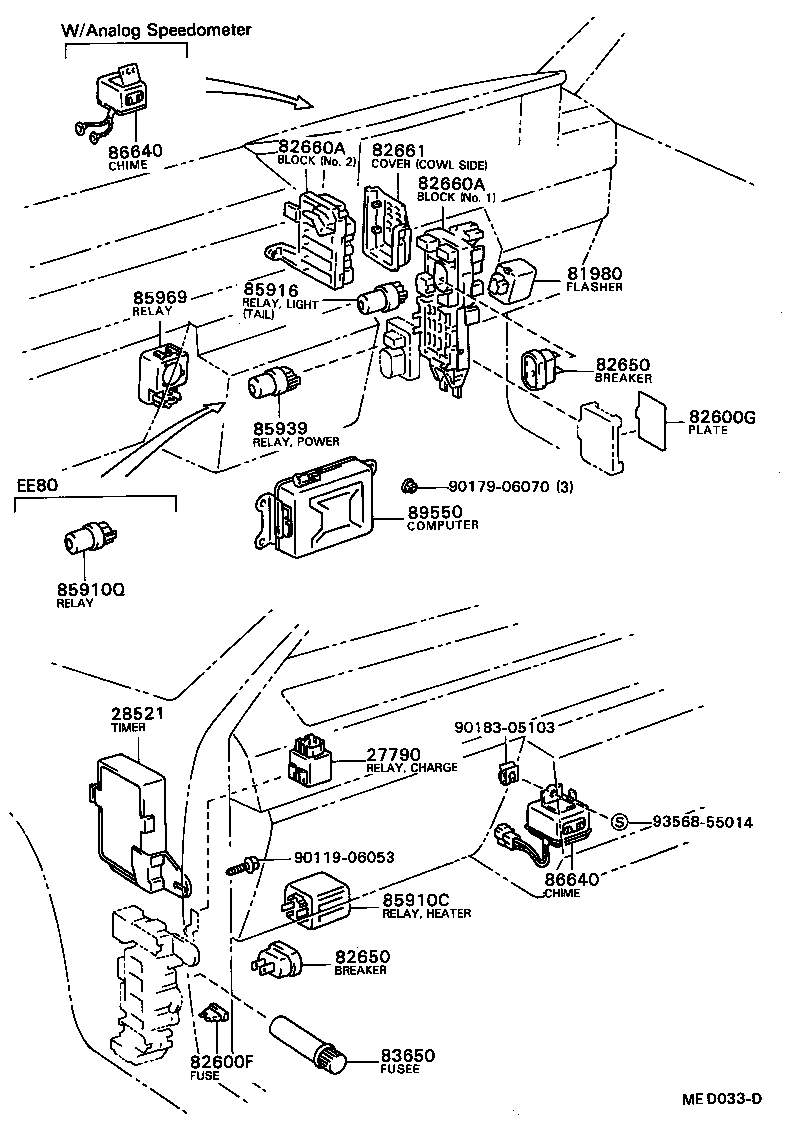

ILLUST NO. 1 OF 4(8305- )AE8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE8#,CE80,EE80 30A,緑,30A |
1 | ||
| 90982-09005 |
AE8#,CE80,EE80 7.5A,7.5A |
7 | ||
| 90982-09003 |
AE8#,CE80,EE80 15A,15A |
8 | ||
| 90982-09004 |
AE8#,CE80,EE80 20A,黄,20A |
2 | ||
| 90982-09002 |
AE8#,CE80,EE80 10A,10A |
8 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE8#,CE80,EE80 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12150 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 82660-12160 |
AE8#,CE80,EE80 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12040 |
AE8#,CE80,EE80 ENGINE ROOM |
1 | ||
| 82661-12070 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX ENGINE ROOM |
1 | ||
| 82661-12090 |
AE8#,CE80,EE80 COWL SIDE |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14061 |
AE80,81 |
1 | ||
| 83391-22070 |
AE81 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
AE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 83399-27030 |
AE80,81 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
AE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 83399-27030 |
AE80,81 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE8#,CE80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
AE80,82;AE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX |
1 | ||
| 83530-14040 |
AE8#,EE80 |
1 | ||
| 83530-30080 |
AE8#,EE80 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AE8#,CE80,EE80..MTM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-12061 |
AE80,81 |
1 | ||
| 90925-09003 |
AE81,EE80 AISAN |
1 | ||
| 90925-09004 |
AE81,EE80 DENSO |
1 | ||
| 85430A - HOSE | ||||
| 90445-14109 |
AE80,81 L=130 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
AE8#,CE80,EE80 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE8#,CE80,EE80 |
2 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE8#,CE80,EE80 |
1 | ||
| 88430 - THERMOSWITCH ASSY, AIR CONDITIONER | ||||
| 83430-30020 |
AE82;AE81,CE80..FXG,SE,ZX NO.2 |
1 | ||
| 83430-30010 |
AE82;AE81,CE80..FXG,SE,ZX NO.1 |
1 | ||
| 88430 - THERMOSWITCH ASSY, AIR CONDITIONER | ||||
| 83430-30020 |
AE82;AE81,CE80..FXG,SE,ZX NO.2 |
1 | ||
| 83430-30010 |
AE82;AE81,CE80..FXG,SE,ZX NO.1 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE8#,CE80,EE80 W/COOLER |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE8#,CE80,EE80 W/COOLER |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE8# COOLING FAN |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19085 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 89465-19085 |
AE80,81 |
1 | ||
| 89465-12070 |
AE81 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19085 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 89465-19085 |
AE80,81 |
1 | ||
| 89465-12070 |
AE81 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
AE80,81 |
1 | ||
| 89466-32010 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06053 | ||||
| 90119-06157 | ||||
| 90179-06115 | ||||
| 90179-08059 | ||||
| 90179-08094 | ||||
| 90430-18007 | ||||
| 90464-00095 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 1903 | ||||

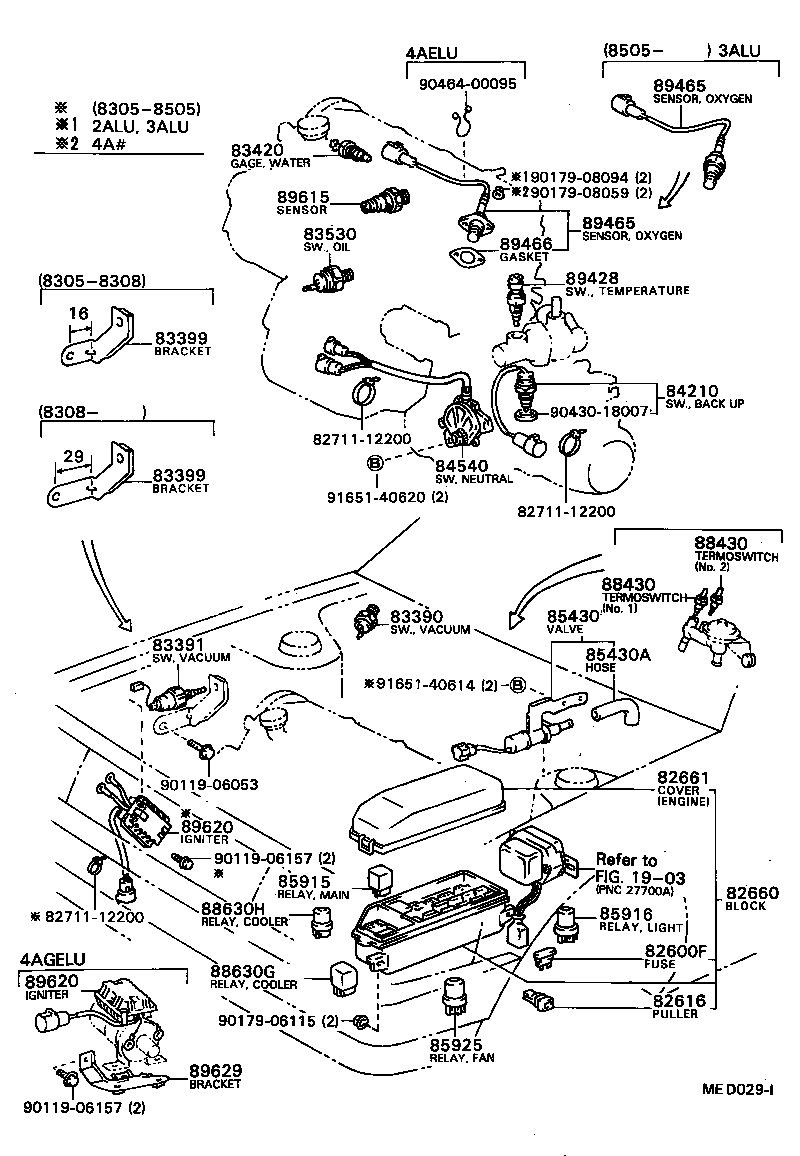

ILLUST NO. 2 OF 4(8305-8505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-12010 |
AE8#,CE80,EE80 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19485 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84112-19515 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19225 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84140-19255 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12660 |
AE81,82..ZX MATSUSHITA |
1 | ||
| 84310-12580 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84312-32010 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19225 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84332-19195 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-17030 |
AE8#,CE80,EE80 |
1 | ||
| 84450-12120 |
AE8#,CE80,EE80 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-80011 |
AE81,82..ZX MATSUSHITA |
1 | ||
| 84652-80003 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12100 |
AE81,82,CE80..3D,5D2,5D3 |
1 | ||
| 84653-12140 |
AE8#,CE80,EE80..3D,5D2,5D3 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12050 |
AE8#,CE80,EE80 2-BUTTON |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12130 |
AE81,82,CE80..SE,SR,SX,ZX W/*AAC |
1 | ||
| 84732-12110 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 84732-12130 |
AE81,CE80..(3FC,5F)..(FXG,SE,SX,ZX) W/*AAC |
1 | ||
| 84732-12110 |
AE81,CE80,EE80 |
1 | ||
| 84732-12130 |
AE81,CE80..FXG,SE,ZX W/*AAC |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX 14V 1.4W,12V 1.4W |
1 | ||
| 90981-11014 |
AE81,CE80,EE80 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12140 |
AE8#,CE80 |
1 | ||
| 84790-12170 |
AE8#,CE80,EE80 |
1 | ||
| 84790-12140 |
AE80,82,CE80;AE81..GL,SE,SX,ZX |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE8#,CE80,EE80 12V 1.12W,12V 1.12W |
1 | ||
| 84999-10170 |
AE80,82,CE80;AE81..GL,SE,SX,ZX 12V 1.12W,12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22040 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,ZX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12180 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 85500-12181 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 85500-12181 |
AE82..SE;AE81,CE80,EE80 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AE8#,CE80,EE80 14V 1.4W,12V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 85533-20011 |
AE82..SE;AE81,CE80,EE80 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-12010 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93568-14512 | ||||

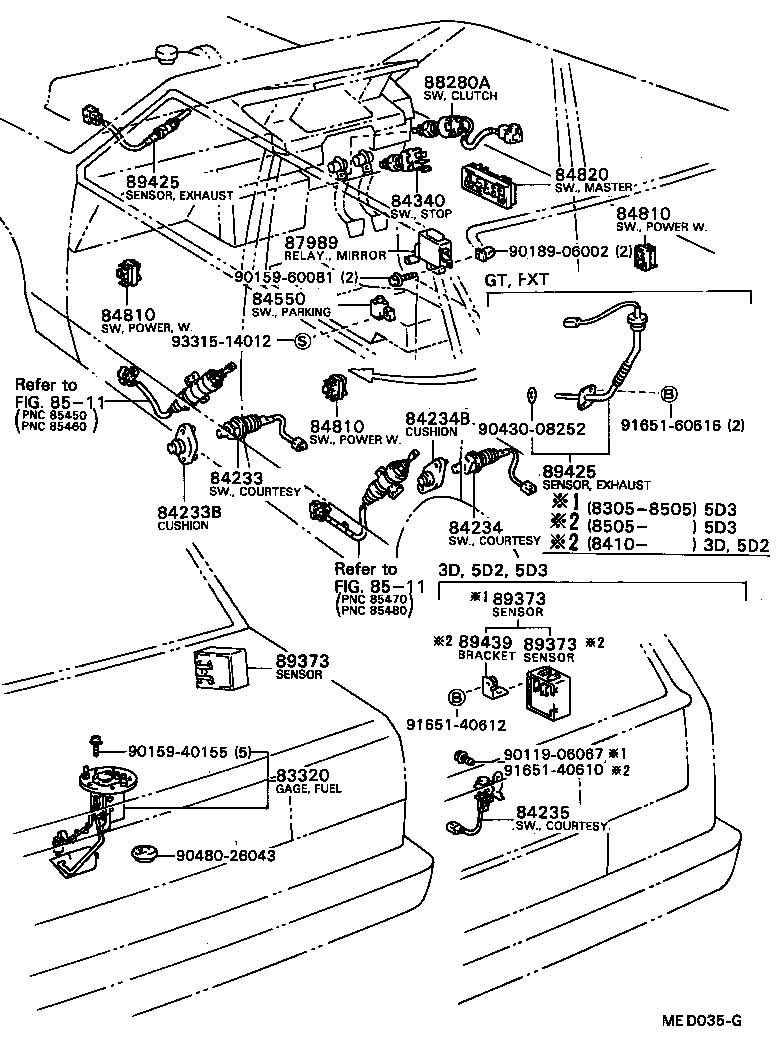

ILLUST NO. 3 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
AE8#,CE80,EE80 |
1 | ||
| 81980-22070 |
AE8#,CE80,EE80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE8#,CE80,EE80 30A,緑,30A |
1 | ||
| 90982-09005 |
AE8#,CE80,EE80 7.5A,7.5A |
7 | ||
| 90982-09003 |
AE8#,CE80,EE80 15A,15A |
8 | ||
| 90982-09004 |
AE8#,CE80,EE80 20A,黄,20A |
2 | ||
| 90982-09002 |
AE8#,CE80,EE80 10A,10A |
8 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12040 |
AE8#,CE80,EE80 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
AE81..FXG,GL,SE,ZX 14A,14A(ELECTROMAGNETIC LOCK) |
1 | ||
| 82650-20011 |
AE8#,CE80,EE80 30A,30A(HEATER OR POWER WINDOW) |
2 | ||
| 82650-35010 |
AE8#,CE80,EE80 20A,20A,TOKAIRIKA(RR DEFOGGER) |
1 | ||
| 82650-12010 |
AE8#,CE80,EE80 20A,MATSUSHITA(RR DEFOGGER) |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
AE81..FXG,GL,SE,ZX 14A,14A(ELECTROMAGNETIC LOCK) |
1 | ||
| 82650-20011 |
AE8#,CE80,EE80 30A,30A(HEATER OR POWER WINDOW) |
2 | ||
| 82650-35010 |
AE8#,CE80,EE80 20A,20A,TOKAIRIKA(RR DEFOGGER) |
1 | ||
| 82650-12010 |
AE8#,CE80,EE80 20A,MATSUSHITA(RR DEFOGGER) |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12130 |
AE8#,CE80,EE80 NO.1 |
1 | ||
| 82660-12200 |
AE8#,CE80,EE80 NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12130 |
AE8#,CE80,EE80 NO.1 |
1 | ||
| 82660-12200 |
AE8#,CE80,EE80 NO.2 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12040 |
AE8#,CE80,EE80 ENGINE ROOM |
1 | ||
| 82661-12070 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX ENGINE ROOM |
1 | ||
| 82661-12090 |
AE8#,CE80,EE80 COWL SIDE |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
AE8#,CE80,EE80 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AE8#,CE80,EE80 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE8#,CE80,EE80 |
2 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-16010 |
AE81,82,CE80..FXG,FXT,GT,SE,ZX |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-12090 |
AE8#,CE80,EE80 |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-12090 |
AE8#,CE80,EE80 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12701 |
AE80,81..MTM |
1 | ||
| 89550-12700 |
AE80,81..MTM |
1 | ||
| 89550-12880 |
AE81..MTM |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90179-06070 | ||||
| 90183-05103 | ||||
| 93568-55014 | ||||
ILLUST NO. 4 OF 4(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19705 |
AE81,82..SE,SR,SX,ZX |
1 | ||
| 83320-19706 |
AE81,82..FXG,FXR,FXT,GT,SE,SR,SX,ZX |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
AE8#,CE80,EE80 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
AE8#,CE80,EE80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-32010 |
AE81,82..ZX |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AE8#,CE80,EE80 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE8#,CE80,EE80 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-35010 |
AE80,81..MTM |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12190 |
AE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,ZX |
1 | ||
| 89425-12140 |
AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12190 |
AE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,ZX |
1 | ||
| 89425-12140 |
AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06002 | ||||
| 90430-08252 | ||||
| 90480-26043 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 2 OF 4(8505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-12010 |
AE8#,CE80,EE80 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19485 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84112-19515 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19225 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84140-19255 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12660 |
AE81,82..ZX MATSUSHITA |
1 | ||
| 84310-12580 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84312-32010 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19225 |
AE8#,CE80..GL,SR,SX,ZX MATSUSHITA |
1 | ||
| 84332-19195 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-17030 |
AE8#,CE80,EE80 |
1 | ||
| 84450-12120 |
AE8#,CE80,EE80 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-80011 |
AE81,82..ZX MATSUSHITA |
1 | ||
| 84652-80003 |
AE81,82..ZX TOKAIRIKA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12100 |
AE81,82,CE80..3D,5D2,5D3 |
1 | ||
| 84653-12140 |
AE8#,CE80,EE80..3D,5D2,5D3 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12050 |
AE8#,CE80,EE80 2-BUTTON |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12130 |
AE81,82,CE80..SE,SR,SX,ZX W/*AAC |
1 | ||
| 84732-12110 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 84732-12130 |
AE81,CE80..(3FC,5F)..(FXG,SE,SX,ZX) W/*AAC |
1 | ||
| 84732-12110 |
AE81,CE80,EE80 |
1 | ||
| 84732-12130 |
AE81,CE80..FXG,SE,ZX W/*AAC |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX 14V 1.4W,12V 1.4W |
1 | ||
| 90981-11014 |
AE81,CE80,EE80 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12140 |
AE8#,CE80 |
1 | ||
| 84790-12170 |
AE8#,CE80,EE80 |
1 | ||
| 84790-12140 |
AE80,82,CE80;AE81..GL,SE,SX,ZX |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE8#,CE80,EE80 12V 1.12W,12V 1.12W |
1 | ||
| 84999-10170 |
AE80,82,CE80;AE81..GL,SE,SX,ZX 12V 1.12W,12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22040 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,ZX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12180 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 85500-12181 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 85500-12181 |
AE82..SE;AE81,CE80,EE80 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AE8#,CE80,EE80 14V 1.4W,12V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 85533-20011 |
AE82..SE;AE81,CE80,EE80 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-12010 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93568-14512 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
