AE81-ELHSS (1983)
Toyota Corolla
Production
May 1983
-
May 1985
Engine
3ALU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )4D,5D3

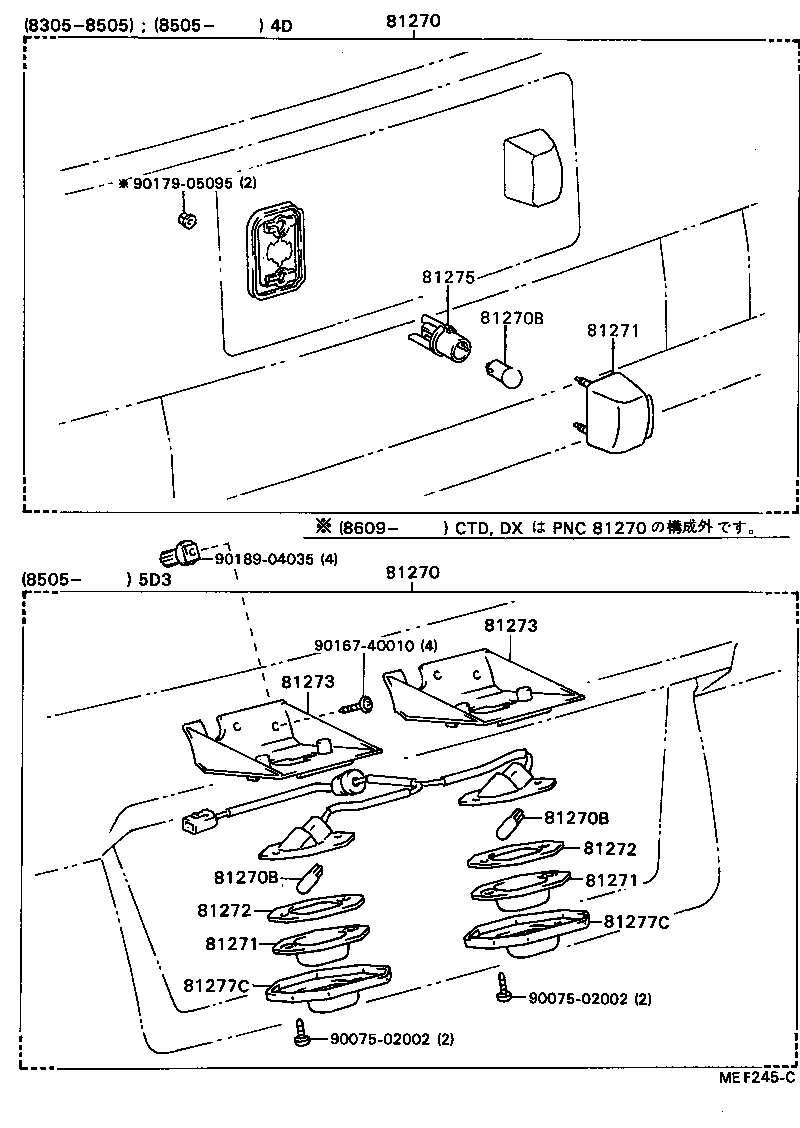

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-80009 |
AE8#,CE80..4D,5D3 |
2 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-80009 |
AE8#,CE80..4D,5D3 |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
AE8#,CE80..4D,5D3 12V 7.5W,12V 7.5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
AE8#,CE80..4D,5D3 12V 7.5W,12V 7.5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
AE8#,CE80..4D,5D3 12V 7.5W,12V 7.5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12230 |
AE8#,CE80..4D,5D3 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12230 |
AE8#,CE80..4D,5D3 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12230 |
AE8#,CE80..4D,5D3 |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-12230 |
AE8#,CE80..4D,5D3 |
2 | ||
| Common parts | ||||
| 90075-02002 | ||||
| 90167-40010 | ||||
| 90179-05095 | ||||
| 90189-04035 | ||||
