AE81-ELHSS (1983)
Toyota Corolla
(8305-8505)FXL,FXR,GT,SE,SR,SX ; (8505- )FXL,FXR,GT

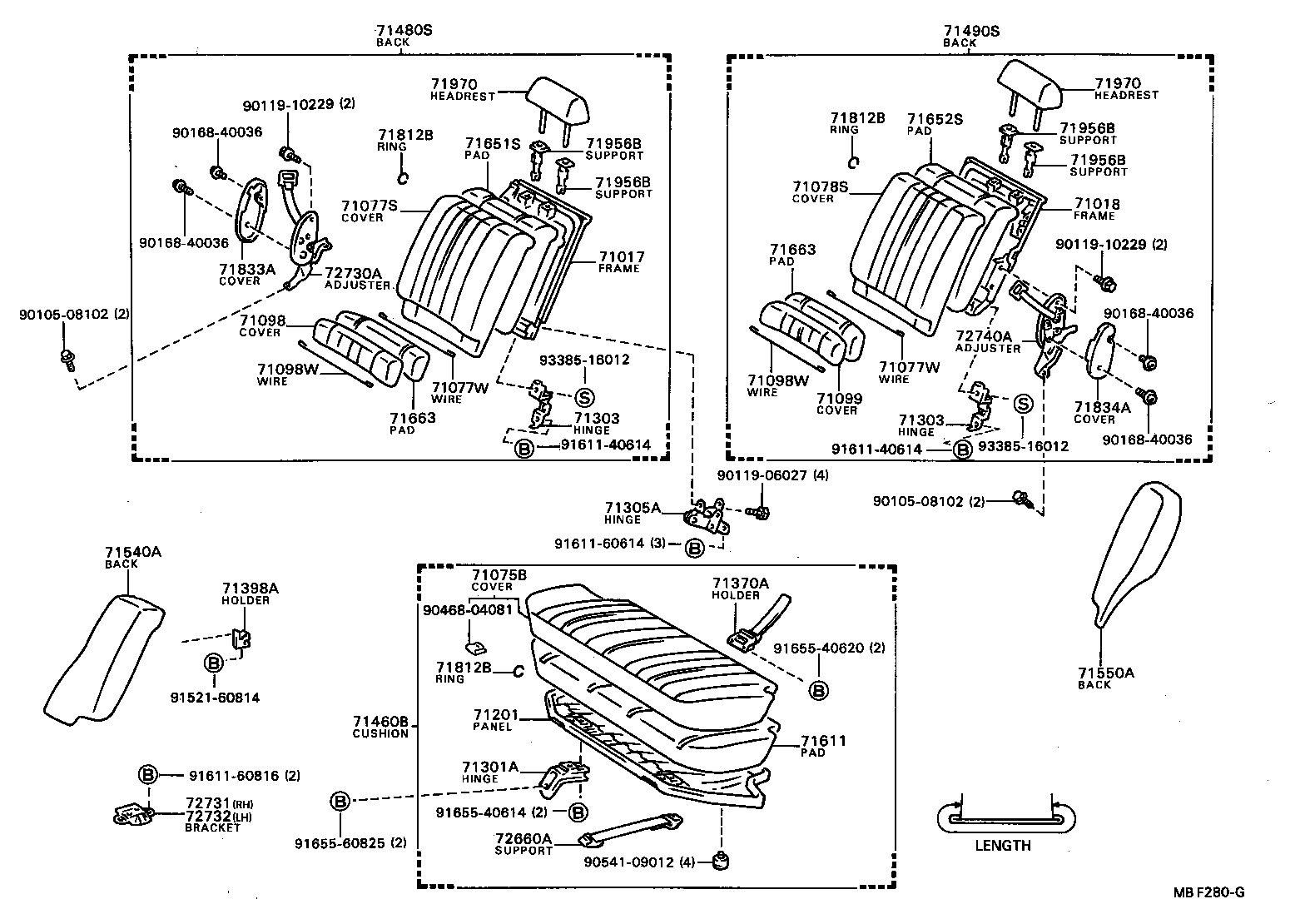

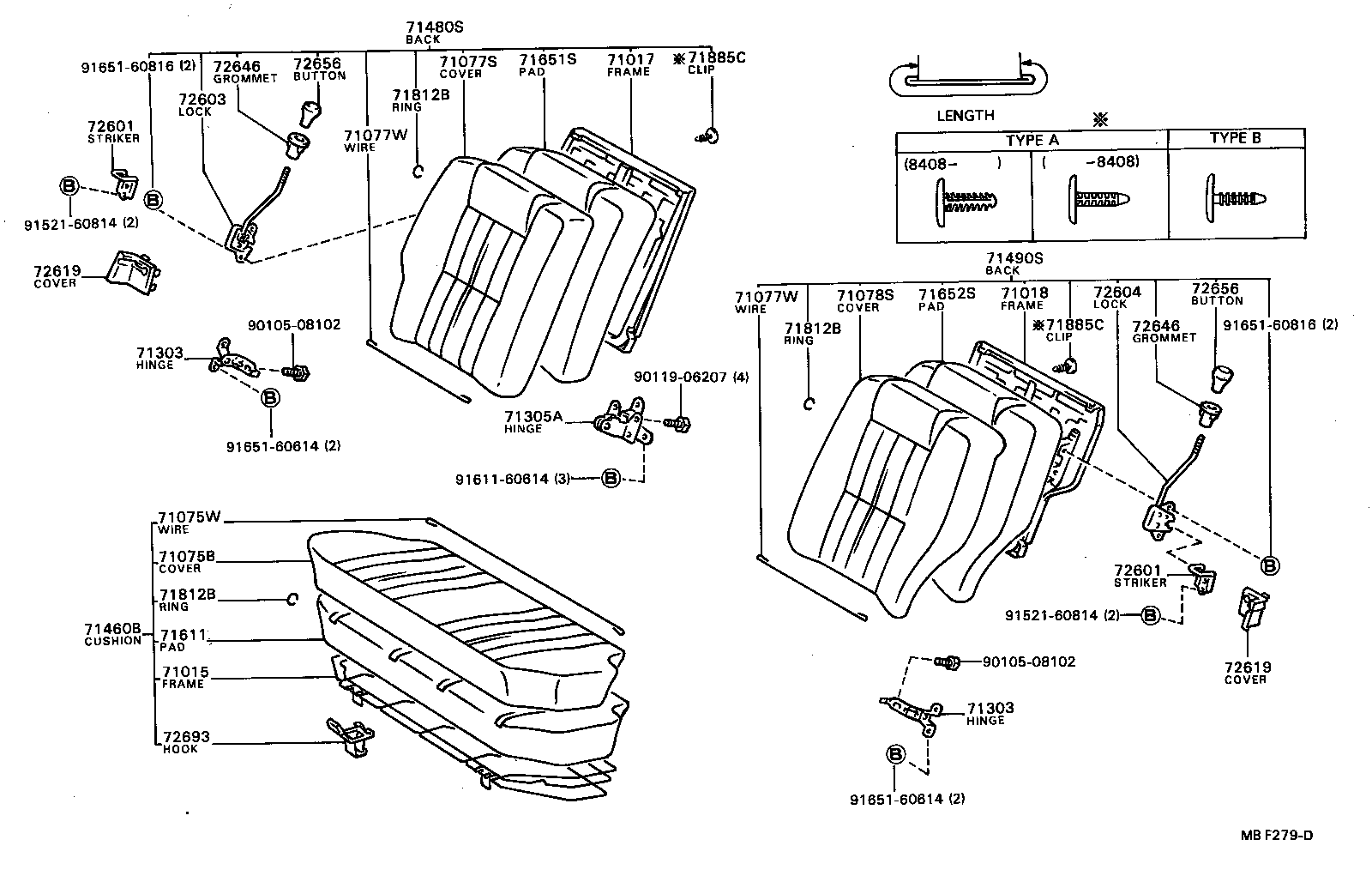

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12250 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX W/O *FFS |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16030 |
AE81,82,CE80..SX |
1 | ||
| 71017-12250 |
AE81,82,CE80..FXL,FXR,SX W/O *FFS |
1 | ||
| 71017-12220 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16030 |
AE81,82,CE80..SX |
1 | ||
| 71018-12010 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71018-12040 |
AE81,82,CE80..FXL,FXR,SX W/O *FFS |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A04002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A04004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A04003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A33002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A04006 |
AE81,82,CE80..SX W/O *FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A33003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A33004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A33006 |
AE81,82,CE80..SX W/*FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20015 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX W/O *FFS,PLANT NO.A31,31,L=930 |
1 | ||
| 90580-16067 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX W/O *FFS,PLANT NO.M11,12,L=930 |
1 | ||
| 90580-16010 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX W/O *FFS,PLANTNO.M11,12,L=1030 |
2 | ||
| 90580-20132 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX W/O *FFS,PLANTNO.A31,32,L=1030 |
2 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E75004 |
AE81,82,CE80..SX W/O *FFS,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E75003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1H12003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1H12002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077-1H12004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E75002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-16062 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=350 |
2 | ||
| 90580-16020 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=490 |
2 | ||
| 90580-16060 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=520 |
2 | ||
| 90580-26012 |
AE81,82,CE80..FXG,FXL,FXR,FXT,GT,SE,SR,SX W/O *FFS,L=600 |
2 | ||
| 90580-20171 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=510 |
2 | ||
| 90580-16062 |
AE81,82,CE80..5D3 W/*FFS,L=350 |
2 | ||
| 90580-20032 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=350 |
2 | ||
| 90580-26021 |
AE81,82,CE80..5D3 W/*FFS,L=470 |
2 | ||
| 90580-16029 |
AE81,82,CE80..5D3 W/*FFS,L=420 |
4 | ||
| 90580-20021 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=470 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-16062 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=350 |
2 | ||
| 90580-16020 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=490 |
2 | ||
| 90580-16060 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=520 |
2 | ||
| 90580-26012 |
AE81,82,CE80..FXG,FXL,FXR,FXT,GT,SE,SR,SX W/O *FFS,L=600 |
2 | ||
| 90580-20171 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=510 |
2 | ||
| 90580-16062 |
AE81,82,CE80..5D3 W/*FFS,L=350 |
2 | ||
| 90580-20032 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=350 |
2 | ||
| 90580-26021 |
AE81,82,CE80..5D3 W/*FFS,L=470 |
2 | ||
| 90580-16029 |
AE81,82,CE80..5D3 W/*FFS,L=420 |
4 | ||
| 90580-20021 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=470 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1285002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1285003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1285004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1A10004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1A10002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1A10003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS |
2 | ||
| 71303-12051 |
AE81,82,CE80..5D3 W/*FFS |
4 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS |
2 | ||
| 71303-12051 |
AE81,82,CE80..5D3 W/*FFS |
4 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12030 |
AE81,82,CE80..FXL,FXR,GT,SE,SR,SX W/O *FFS |
1 | ||
| 71305-12040 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1A18002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A18003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A18004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A37002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A37004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A18006 |
AE81,82,CE80..SX W/O *FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1A37006 |
AE81,82,CE80..SX W/*FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1A37003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1E81003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1E81002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-1E81004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1H18002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-1H18003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1H18004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1287003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1287002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71490-1287004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1A15003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1A15002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71490-1A15004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12420 |
AE8#,CE80..CTD,DX,FXD,FXL,FXR,GL,GT,SE,SR,SX W/O *FFS |
1 | ||
| 71611-12440 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12470 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71651-12480 |
AE81,82,CE80..SX W/O *FFS |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12350 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71652-12360 |
AE81,82,CE80..SX W/O *FFS |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12100 |
AE81,82,CE80..FXD,FXL,FXR,SX W/O *FFS |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12090 |
AE81,82,CE80..FXD,FXL,FXR,SX W/O *FFS |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-1204003 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS,RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202006 |
AE81,82,CE80..FXD,FXL,SE,SR,SX W/O *FFS,LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202002 |
AE81,82,CE80..SE,SR,SX W/O *FFS,LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72616-1202004 |
AE81,82,CE80..SE,SR,SX W/O *FFS,LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72615-1204002 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204004 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS,LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE81,82,CE80..FXD,FXL,SE,SR,SX W/O *FFS,RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-1204003 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS,RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202006 |
AE81,82,CE80..FXD,FXL,SE,SR,SX W/O *FFS,LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202002 |
AE81,82,CE80..SE,SR,SX W/O *FFS,LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72616-1202004 |
AE81,82,CE80..SE,SR,SX W/O *FFS,LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72615-1204002 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204004 |
AE81,82,CE80..SE,SR,SX W/O *FFS,RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS,LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE81,82,CE80..FXD,FXL,SE,SR,SX W/O *FFS,RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE81,82,CE80..SR,SX W/O *FFS,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002024 |
AE81,82,CE80..SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE81,82,CE80..SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE81,82,CE80..SR,SX W/O *FFS,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002024 |
AE81,82,CE80..SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE81,82,CE80..SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001024 |
AE81,82,CE80..SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001025 |
AE81,82,CE80..SR,SX W/O *FFS,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72656-2001033 |
AE81,82,CE80..SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001033 |
AE81,82,CE80..SE,SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001025 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE81,82,CE80..SE,SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001024 |
AE81,82,CE80..SR,SX W/O *FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001025 |
AE81,82,CE80..SR,SX W/O *FFS,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72656-2001033 |
AE81,82,CE80..SR,SX W/O *FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-16010 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX W/O *FFS |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
(8305-8401)ZX ; (8401-8505)5D3 ; (8505- )5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16030 |
AE81,82,CE80..SX |
1 | ||
| 71017-12250 |
AE81,82,CE80..FXL,FXR,SX W/O *FFS |
1 | ||
| 71017-12220 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16030 |
AE81,82,CE80..SX |
1 | ||
| 71018-12010 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71018-12040 |
AE81,82,CE80..FXL,FXR,SX W/O *FFS |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A04002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A04004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A04003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A33002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A04006 |
AE81,82,CE80..SX W/O *FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A33003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A33004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A33006 |
AE81,82,CE80..SX W/*FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E75004 |
AE81,82,CE80..SX W/O *FFS,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E75003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1H12003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1H12002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077-1H12004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E75002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-16062 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=350 |
2 | ||
| 90580-16020 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=490 |
2 | ||
| 90580-16060 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=520 |
2 | ||
| 90580-26012 |
AE81,82,CE80..FXG,FXL,FXR,FXT,GT,SE,SR,SX W/O *FFS,L=600 |
2 | ||
| 90580-20171 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=510 |
2 | ||
| 90580-16062 |
AE81,82,CE80..5D3 W/*FFS,L=350 |
2 | ||
| 90580-20032 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=350 |
2 | ||
| 90580-26021 |
AE81,82,CE80..5D3 W/*FFS,L=470 |
2 | ||
| 90580-16029 |
AE81,82,CE80..5D3 W/*FFS,L=420 |
4 | ||
| 90580-20021 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=470 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-16062 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=350 |
2 | ||
| 90580-16020 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=490 |
2 | ||
| 90580-16060 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.M11,12,L=520 |
2 | ||
| 90580-26012 |
AE81,82,CE80..FXG,FXL,FXR,FXT,GT,SE,SR,SX W/O *FFS,L=600 |
2 | ||
| 90580-20171 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=510 |
2 | ||
| 90580-16062 |
AE81,82,CE80..5D3 W/*FFS,L=350 |
2 | ||
| 90580-20032 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=350 |
2 | ||
| 90580-26021 |
AE81,82,CE80..5D3 W/*FFS,L=470 |
2 | ||
| 90580-16029 |
AE81,82,CE80..5D3 W/*FFS,L=420 |
4 | ||
| 90580-20021 |
AE81,82,CE80..FXG,FXL,FXR,FXT,SX W/O *FFS,PLANT NO.A31,32,L=470 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1285002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1285003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1285004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1A10004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1A10002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1A10003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71098 - COVER SUB-ASSY, REAR SEAT BACK, LOWER RH | ||||
| 71098-1203003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71098-1203004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71098-1203002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71098W - WIRE, REAR SEAT BACK LOWER COVER | ||||
| 90580-16062 |
AE81,82,CE80..5D3 W/*FFS,L=350 |
4 | ||
| 71098W - WIRE, REAR SEAT BACK LOWER COVER | ||||
| 90580-16062 |
AE81,82,CE80..5D3 W/*FFS,L=350 |
4 | ||
| 71099 - COVER SUB-ASSY, REAR SEAT BACK, LOWER LH | ||||
| 71099-1203003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71099-1203002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71099-1203004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION | ||||
| 71201-12010 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1202003 |
AE81,82,CE80..5D3 W/*FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 71301-1202004 |
AE81,82,CE80..5D3 W/*FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 71301-1202002 |
AE81,82,CE80..5D3 W/*FFS,MAROON,RED/MAROON,TRIM3# |
2 | ||
| 71301-1202006 |
AE81,82,CE80..5D3 W/*FFS,BROWN,BROWN,TRIM4# |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS |
2 | ||
| 71303-12051 |
AE81,82,CE80..5D3 W/*FFS |
4 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE81,82,CE80..FXD,FXL,FXR,GT,SE,SR,SX W/O *FFS |
2 | ||
| 71303-12051 |
AE81,82,CE80..5D3 W/*FFS |
4 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12030 |
AE81,82,CE80..FXL,FXR,GT,SE,SR,SX W/O *FFS |
1 | ||
| 71305-12040 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1201003 |
AE81,82,CE80..5D3 W/*FFS,GRAY,GRAY,TRIM1# |
1 | ||
| 71370-1201002 |
AE81,82,CE80..5D3 W/*FFS,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71370-1201006 |
AE81,82,CE80..5D3 W/*FFS,BROWN,BROWN,TRIM4# |
1 | ||
| 71370-1201004 |
AE81,82,CE80..5D3 W/*FFS,BLUE,BLUE,TRIM8# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71397-12010 |
AE81,82,CE80..5D3 W/*FFS,RH |
1 | ||
| 71398-12010 |
AE81,82,CE80..5D3 W/*FFS,LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1A18002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A18003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1A18004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A37002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-1A37004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-1A18006 |
AE81,82,CE80..SX W/O *FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1A37006 |
AE81,82,CE80..SX W/*FFS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1A37003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1E81003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1E81002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-1E81004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1H18002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-1H18003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1H18004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1287003 |
AE81,82,CE80..SX W/O *FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1287002 |
AE81,82,CE80..SX W/O *FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71490-1287004 |
AE81,82,CE80..SX W/O *FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1A15003 |
AE81,82,CE80..SX W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1A15002 |
AE81,82,CE80..SX W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71490-1A15004 |
AE81,82,CE80..SX W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-1201002 |
AE81,82,CE80..5D3 FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71540-1201102 |
AE81,82,CE80..5D3 W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71540-1201003 |
AE81,82,CE80..5D3 FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71540-1201004 |
AE81,82,CE80..5D3 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71540-1201103 |
AE81,82,CE80..5D3 W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71540-1201104 |
AE81,82,CE80..5D3 W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-1201002 |
AE81,82,CE80..5D3 W/*FFS,FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71550-1201004 |
AE81,82,CE80..5D3 W/*FFS,FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71550-1201003 |
AE81,82,CE80..5D3 W/*FFS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12420 |
AE8#,CE80..CTD,DX,FXD,FXL,FXR,GL,GT,SE,SR,SX W/O *FFS |
1 | ||
| 71611-12440 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12470 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71651-12480 |
AE81,82,CE80..SX W/O *FFS |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12350 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 71652-12360 |
AE81,82,CE80..SX W/O *FFS |
1 | ||
| 71663 - PAD, REAR SEAT BACK, LOWER | ||||
| 71664-12040 |
AE81,82,CE80..5D3 W/*FFS,LH |
1 | ||
| 71663-12100 |
AE81,82,CE80..5D3 W/*FFS,RH |
1 | ||
| 71663 - PAD, REAR SEAT BACK, LOWER | ||||
| 71664-12040 |
AE81,82,CE80..5D3 W/*FFS,LH |
1 | ||
| 71663-12100 |
AE81,82,CE80..5D3 W/*FFS,RH |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-1202004 |
AE81,82,CE80..5D3 W/*FFS,BLUE,BLUE,TRIM8# |
1 | ||
| 71833-1202006 |
AE81,82,CE80..5D3 W/*FFS,BROWN,BROWN,TRIM4# |
1 | ||
| 71833-1202003 |
AE81,82,CE80..5D3 W/*FFS,GRAY,GRAY,TRIM1# |
1 | ||
| 71833-1202002 |
AE81,82,CE80..5D3 W/*FFS,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-1202004 |
AE81,82,CE80..5D3 W/*FFS,BLUE,BLUE,TRIM8# |
1 | ||
| 71834-1202006 |
AE81,82,CE80..5D3 W/*FFS,BROWN,BROWN,TRIM4# |
1 | ||
| 71834-1202002 |
AE81,82,CE80..5D3 W/*FFS,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71834-1202003 |
AE81,82,CE80..5D3 W/*FFS,GRAY,GRAY,TRIM1# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001004 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006004 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006025 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1001013 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001004 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006004 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006025 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1001013 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001004 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006004 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006025 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1001013 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001004 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006004 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006025 |
AE81,82,CE80..5D3 ﾛｯｸ付,W/*FFS,LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71931-1001013 |
AE81,82,CE80..5D3 ﾛｯｸ無,W/*FFS,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-1203004 |
AE81,82,CE80..SX W/*FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-1203003 |
AE81,82,CE80..SX W/*FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 71940-1203005 |
AE81,82,CE80..SX W/*FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-1203004 |
AE81,82,CE80..SX W/*FFS,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-1203003 |
AE81,82,CE80..SX W/*FFS,GRAY,GRAY,TRIM1# |
2 | ||
| 71940-1203005 |
AE81,82,CE80..SX W/*FFS,BEIGE,BEIGE,TRIM3# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-12010 |
AE81,82,CE80..5D3 W/*FFS |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-1202002 |
AE81,82,CE80..5D3 W/*FFS,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72730-1202006 |
AE81,82,CE80..5D3 W/*FFS,BROWN,BROWN,TRIM4# |
1 | ||
| 72730-1202004 |
AE81,82,CE80..5D3 W/*FFS,BLUE,BLUE,TRIM8# |
1 | ||
| 72730-1202003 |
AE81,82,CE80..5D3 W/*FFS,GRAY,GRAY,TRIM1# |
1 | ||
| 72731 - BRACKET, REAR SEAT RECLINING, RH | ||||
| 72731-12010 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 72732 - BRACKET, REAR SEAT RECLINING, LH | ||||
| 72732-12010 |
AE81,82,CE80..5D3 W/*FFS |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-1202004 |
AE81,82,CE80..5D3 W/*FFS,BLUE,BLUE,TRIM8# |
1 | ||
| 72740-1202002 |
AE81,82,CE80..5D3 W/*FFS,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72740-1202006 |
AE81,82,CE80..5D3 W/*FFS,BROWN,BROWN,TRIM4# |
1 | ||
| 72740-1202003 |
AE81,82,CE80..5D3 W/*FFS,GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06027 | ||||
| 90119-10229 | ||||
| 90168-40036 | ||||
| 90468-04081 | ||||
| 90541-09012 | ||||
| 91521-60814 | ||||
| 91611-40614 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91655-40614 | ||||
| 91655-40620 | ||||
| 91655-60825 | ||||
| 91661-40614 | ||||
| 93385-16012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
