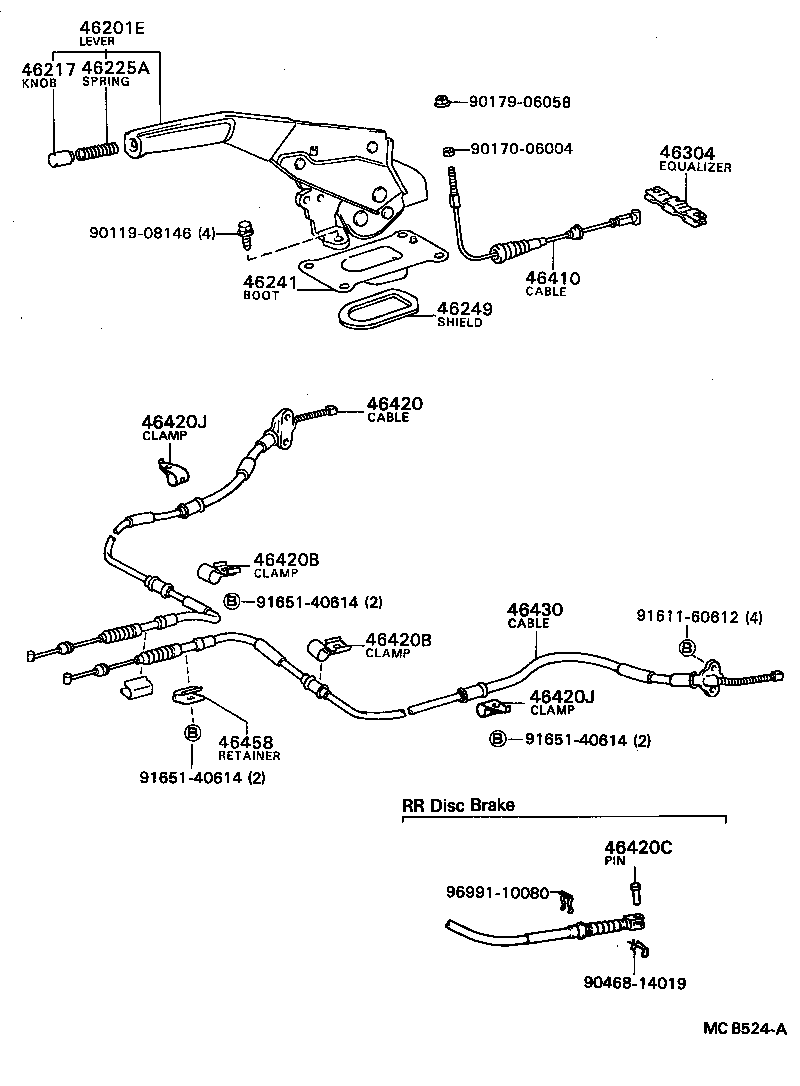

Toyota Corolla AE81 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-1206004	AE81,82,CE80..SE,SX,ZX BLUE,BLUE,TRIM8#	05/1983 - 03/1986	1
46201-1206002	AE81,82,CE80..SE,SX,ZX MAROON,RED/MAROON,TRIM3#	05/1983 - 08/1984	1
46201-1206003	AE81,82,CE80..FXG,FXR,SE,SR,SX,ZX GRAY,GRAY,TRIM1#	05/1983 - 04/1987	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002014	AE81..4F..DX;AE81..GL,SE,SX,ZX;AE80,82,CE80..CTD,DX,GL,SE,SX,ZX BLUE,BLUE,TRIM8#	05/1983 - 05/1984	1
46217-1002033	AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX GRAY,GRAY,TRIM1#	05/1983 - 05/1984	1
46217-1002022	AE81..4F..DX;AE81..GL,SE,SX,ZX;AE80,82,CE80..CTD,DX,GL,SE,SX,ZX MAROON,RED/MAROON,TRIM3#	05/1983 - 05/1984	1
46217-2002002	AE81..4F..DX;AE81..GL,SE,SX,ZX;AE80,82,CE80..CTD,DX,GL,SE,SX,ZX MAROON,DEEP MAROON,TRIM3#	05/1984 - 08/1984	1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069	AE8#,CE80,EE80	05/1983 - 04/1987	1
46241 - BOOT, PARKING BRAKE LEVER
46241-32010	AE8#,CE80,EE80	05/1983 - 04/1987	1
46249 - SHIELD, PARKING BRAKE HOLE
46249-32010	AE8#,CE80,EE80	05/1983 - 04/1987	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-12010	AE8#,CE80,EE80	05/1983 - 04/1987	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20210	AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX	05/1983 - 04/1987	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12310	AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX	05/1983 - 04/1987	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01112	AE8#,CE80,EE80	05/1983 - 04/1987	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01112	AE8#,CE80,EE80	05/1983 - 04/1987	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015	AE8#,CE80,EE80	05/1983 - 04/1987	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015	AE8#,CE80,EE80	05/1983 - 04/1987	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12210	AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX	05/1983 - 04/1987	1
46458 - RETAINER, CABLE
46458-20020	AE8#,CE80,EE80	05/1983 - 04/1987	2
Common parts
90119-08146
90170-06004
90179-06058
90468-14019
91611-60612
91651-40614
96991-10080

AE81-ELHSS (1983)

(8305- )
