AE81-ELHGS (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 3ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8402)2ALU ; (8305-8402)3ALU..3FC..DX ; (8305-8402)3ALU..GL,SE,SX,ZX ; (8402-8

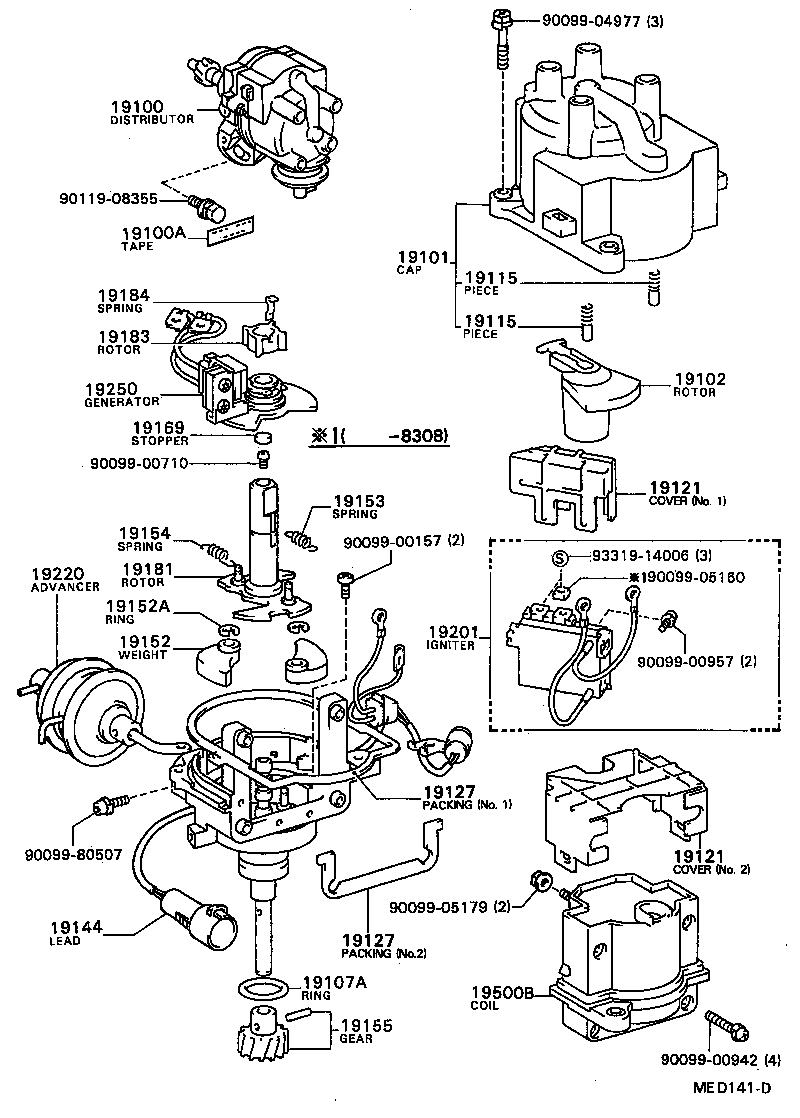

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19121 19121 19127 19127 19144 19152 19152A 19153 19154 19155 19169 19181 19183 19184 19201 19220 19250 19500B 9009900157 9009900710 9009900942 9009900957 9009904977 9009905160 9009905179 9009980507 9011908355 9331914006
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-15030

3ALU..AE81..ATM

DENSO IGNITER

 1
19020-15040

3ALU..AE81..ATM

MATSUSHITA IGNITER

 1
19100A - TAPE, SEALING
90919-24004

2ALU,3ALU,4A#..AE8#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-15160

2ALU,3ALU,4AELU..AE8#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-63010

2ALU,3ALU,4AELU..AE8#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96710-04030

3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX

 1
96710-04030

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX

 2
19115-63010

3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX

 2
19115-63010

3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 2
19121 - COVER, DUST PROOF
19121-15090

2ALU,3ALU..AE80,81

NO.1

 1
19121-15090

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

NO.1

 1
19121-63040

2ALU,3ALU,4AELU..AE8#

NO.2

 1
19121 - COVER, DUST PROOF
19121-15090

2ALU,3ALU..AE80,81

NO.1

 1
19121-15090

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

NO.1

 1
19121-63040

2ALU,3ALU,4AELU..AE8#

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63020

2ALU,3ALU,4AELU..AE8#

NO.2

 1
19127-15090

2ALU,3ALU..AE80,81

NO.1

 1
19127 - PACKING, DUST PROOF
19127-63020

2ALU,3ALU,4AELU..AE8#

NO.2

 1
19127-15090

2ALU,3ALU..AE80,81

NO.1

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-15161

2ALU,3ALU..AE80,81

 1
19144-15160

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

 1
19144-15161

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

 1
19152 - WEIGHT, GOVERNOR
19152-15160

2ALU,3ALU..AE80,81

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

2ALU,3ALU..AE80,81

 2
19153 - SPRING, GOVERNOR, A
19153-15160

3ALU..AE81..GL,SE,SX,ZX

 1
19153-15250

3ALU..AE81..GL,SE,SX,ZX

 1
19153-15250

3ALU..AE81

 1
19154 - SPRING, GOVERNOR, B
19154-15250

3ALU..AE81..GL,SE,SX,ZX

 1
19154-15250

3ALU..AE81

 1
19154-15160

3ALU..AE81..GL,SE,SX,ZX

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-15021

2ALU,3ALU,4AELU..AE8#

 1
19169 - STOPPER, CAM GREASE
19169-32010

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-15260

3ALU..AE81..ATM

MATSUSHITA IGNITER

 1
19181-15180

3ALU..AE81..ATM

DENSO IGNITER

 1
19183 - ROTOR, SIGNAL
19183-15010

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

 1
19184 - SPRING, ROTOR SET
19184-63010

2ALU,3ALU..AE80,81

 1
19201 - IGNITER
89620-16070

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

DENSO

 1
89620-16070

2ALU,3ALU..AE80,81

DENSO

 1
89620-12280

2ALU..AE80..3FC;3ALU..AE81..ATM..(FXG,FXL,GL,SE,SX,ZX)

MATSUSHITA

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-15170

3ALU..AE81..ATM

 1
19250 - GENERATOR ASSY, SIGNAL
19251-15090

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

 1
19251-15091

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

 1
19500B - COIL ASSY, IGNITION
90919-02152

2ALU..AE80;3ALU..AE81..GL,SE,SX,ZX

 1
90919-02152

2ALU,3ALU..AE80,81

 1
Common parts
90099-00157
90099-00710
90099-00942
90099-00957
90099-04977
90099-05160
90099-05179
90099-80507
90119-08355
93319-14006
