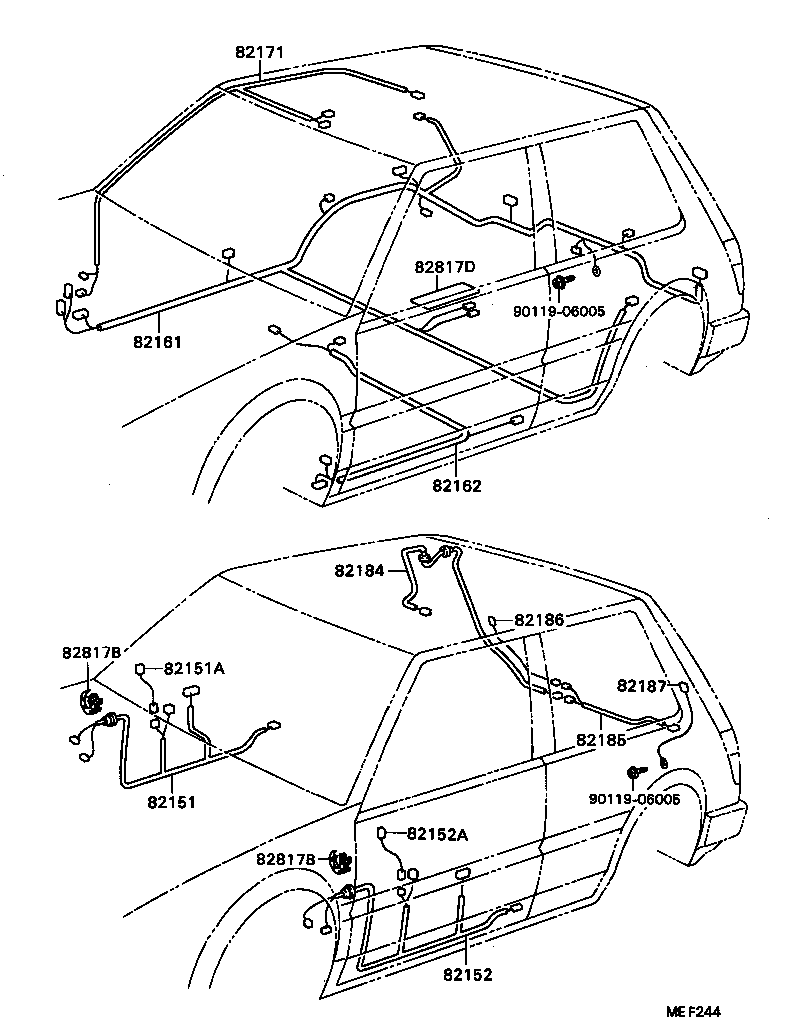

Toyota Corolla AE81 WIRING & CLAMP

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-12140	AE8#,CE80..FXG,FXR,FXT,GT,SE,ZX	05/1985 - 04/1987	1
82152 - WIRE, FRONT DOOR, LH
82152-12110	AE8#,CE80..FXG,FXR,FXT,GT,SE,ZX	05/1985 - 04/1987	1
82161 - WIRE, FLOOR
82161-12330	AE81..3D,5D2	10/1984 - 05/1985	1
82161-12600	AE81,CE80,EE80..3D,5D2	05/1985 - 04/1987	1
82162 - WIRE, FLOOR, NO.2
82162-12091	AE80,81,CE80..3FC,4F,5F	10/1984 - 05/1985	1
82162-12460	AE81,CE80..4FC	05/1985 - 04/1987	1
82162-12390	AE81,CE80,EE80..3FC,4F,5F	05/1985 - 04/1987	1
82171 - WIRE, ROOF, NO.1
82171-12030	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR W/SUN ROOF	05/1983 - 05/1985	1
82171-12020	AE8#,CE80,EE80..3D,4D,5D2	05/1983 - 04/1987	1
82171-12030	AE82..5F..GT;AE8#,CE80..FXG,FXR,FXT,SE W/SUN ROOF	05/1985 - 04/1987	1
82184 - WIRE, BACK DOOR, NO.1
82184-12080	AE81,82..FXG,FXL,FXR,FXT	10/1984 - 05/1985	1
82184-12140	AE8#,CE80,EE80..FXG,FXL,FXR,FXT	05/1985 - 04/1987	1
82185 - WIRE, BACK DOOR, NO.2
82185-12160	AE8#,CE80,EE80..3D,5D2 W/RR WIPER	05/1985 - 04/1987	1
82185-12080	AE81,82..3D,5D2 W/RR WIPER	10/1984 - 05/1985	1
82186 - WIRE, REAR WINDOW, NO.1
82186-12090	AE8#,CE80,EE80..3D,5D2	05/1985 - 04/1987	1
82186-12070	AE81,82..3D,5D2	10/1984 - 05/1985	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12060	AE81,82..3D,5D2	10/1984 - 05/1985	1
82187-12100	AE8#,CE80,EE80..3D,5D2	05/1985 - 04/1987	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-16100	AE8#,CE80,EE80	05/1983 - 04/1987	1
Common parts
90119-06005

AE81-EHPES (1984)
