AE81-EHPES (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 3ALU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )5D2

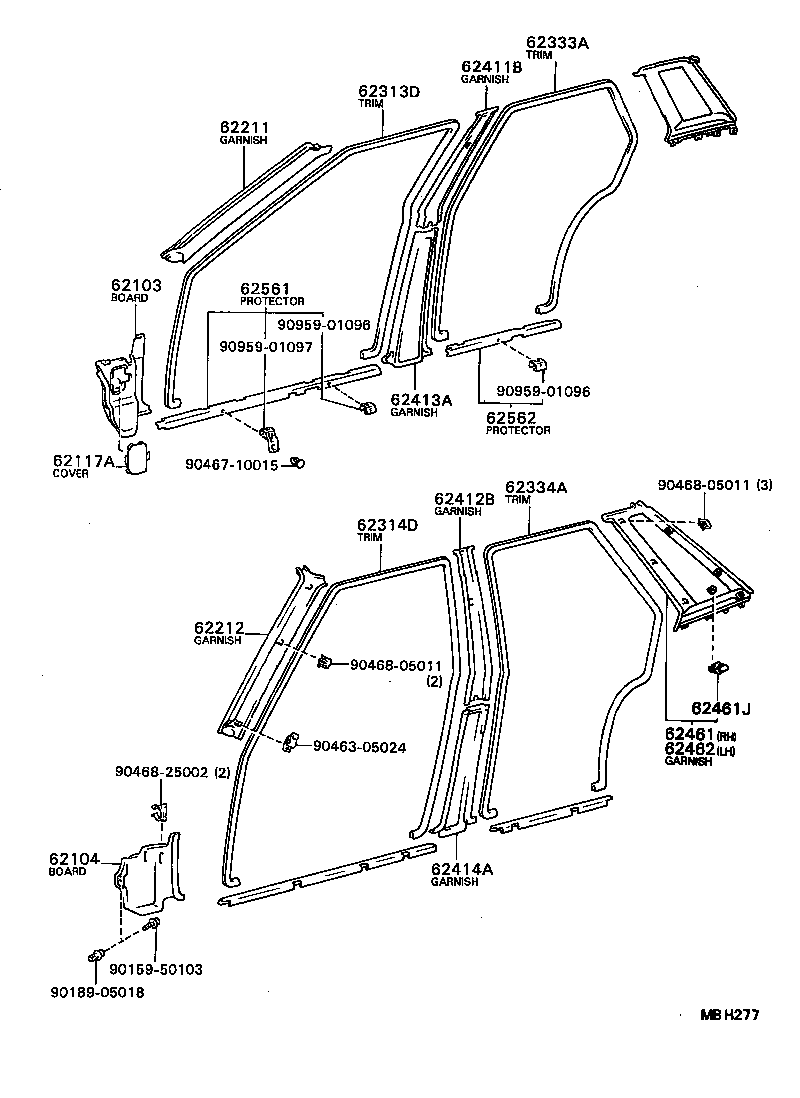

Click highlighted areas on diagram

diagram 62103 62104 62117A 62211 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62461 62461J 62462 62561 62562 9015950103 9018905018 9046305024 9046710015 9046805011 9046805011 9046825002 9095901096 9095901096 9095901097
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62101-1212003

AE8#,CE80,EE80

GRAY,GRAY,TRIM1#

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62102-1212003

AE8#,CE80,EE80

GRAY,GRAY,TRIM1#

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
62117-1202003

AE8#,CE80,EE80

GRAY,GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-1216003

AE8#,CE80,EE80..3D,4D,5D2

GRAY,GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-1216003

AE8#,CE80,EE80..3D,4D,5D2

GRAY,GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-1211003

AE8#,CE80,EE80..4D,5D2,5D3

GRAY,GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-1211003

AE8#,CE80,EE80..4D,5D2,5D3

GRAY,GRAY,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-1205006

AE81,CE80,EE80..5D2

BROWN,BROWN,TRIM4#

 1
62333-1205003

AE81,82..5D2

GRAY,GRAY,TRIM1#

 1
62333-1205013

AE8#,CE80,EE80..5D2

GRAY,GRAY,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-1205003

AE81,82..5D2

GRAY,GRAY,TRIM1#

 1
62333-1205013

AE8#,CE80,EE80..5D2

GRAY,GRAY,TRIM1#

 1
62333-1205006

AE81,CE80,EE80..5D2

BROWN,BROWN,TRIM4#

 1
62461 - GARNISH, ROOF SIDE TRIM, RH
62471-1231006

AE81,CE80,EE80..5D2

BROWN,BROWN,TRIM4#

 1
62471-1231003

AE81,82,CE80,EE80..5D2

GRAY,GRAY,TRIM1#

 1
62461J - RETAINER, ROOF SIDE TRIM GARNISH
67771-23010

AE81,82,CE80,EE80..5D2

 8
62462 - GARNISH, ROOF SIDE TRIM, LH
62472-1231006

AE81,CE80,EE80..5D2

BROWN,BROWN,TRIM4#

 1
62472-1231003

AE81,82,CE80,EE80..5D2

GRAY,GRAY,TRIM1#

 1
62561 - PROTECTOR, ROCKER PANEL, INNER FRONT
62562-12010

AE8#,CE80,EE80..4D,5D2,5D3

LH

 1
62561-12030

AE8#,CE80,EE80..4D,5D2,5D3

RH

 1
62562 - PROTECTOR, ROCKER PANEL, INNER REAR
62564-12020

AE8#,CE80,EE80..4D,5D2,5D3

LH

 1
62563-12020

AE8#,CE80,EE80..4D,5D2,5D3

RH

 1
Common parts
90159-50103
90189-05018
90463-05024
90467-10015
90468-05011
90468-25002
90959-01096
90959-01097
