AE81-EHKNS (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3D,5D2

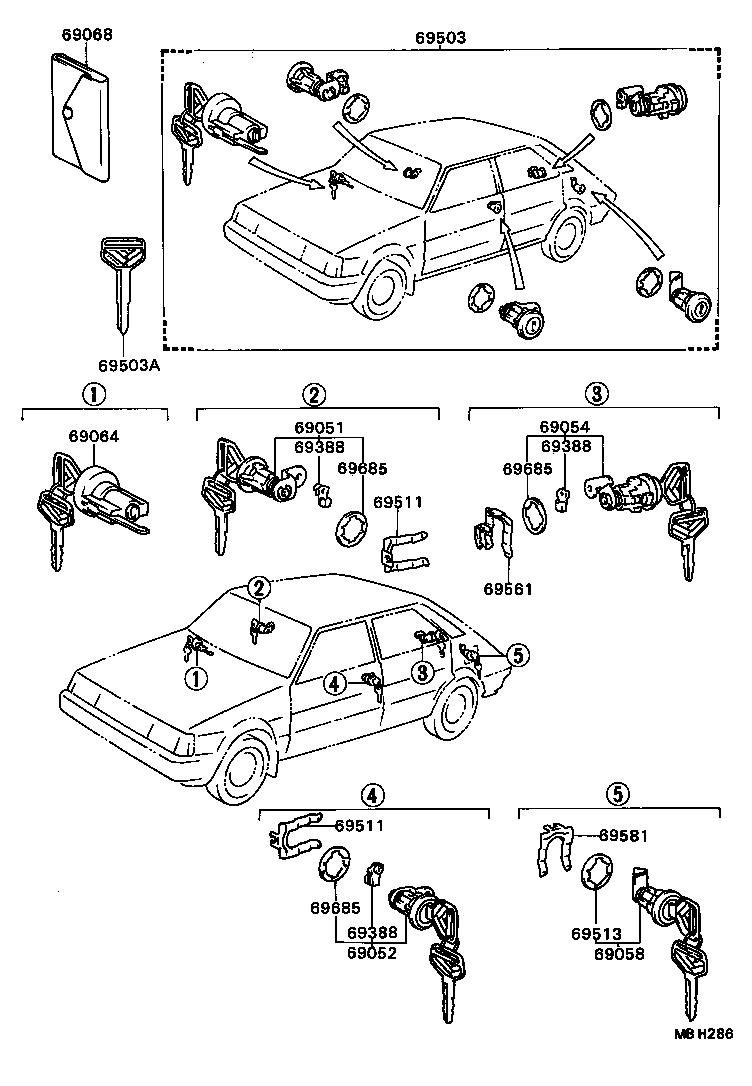

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69064 69068 69388 69388 69388 69503 69503A 69511 69511 69513 69561 69581 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12160

AE8#,CE80,EE80

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12160

AE8#,CE80,EE80

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-12360

AE81,82,EE80..3D,5D2

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-16040

AE8#,CE80,EE80

 1
69057-12120

AE8#,CE80,EE80

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AE8#,CE80,EE80

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69503 - CYLINDER SET, LOCK
69005-12610

AE81,82,CE80,EE80..3D,5D2

W/OPENER

 1
69005-12611

AE8#,CE80,EE80..3D,5D2

W/OPENER

 1
69503A - KEY, BLANK
90999-00085

AE8#,CE80,EE80

ﾏｽﾀｰｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#,CE80,EE80

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#,CE80,EE80

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69501-12010

AE81,82,EE80..3D,5D2

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

DOOR

 2
69563-32010

AE8#,CE80,EE80

LUGGAGE,BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

DOOR

 2
69563-32010

AE8#,CE80,EE80

LUGGAGE,BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

DOOR

 2
69563-32010

AE8#,CE80,EE80

LUGGAGE,BACK DOOR

 1
