AE81-EHHNS (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 3ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3D,5D2

Click highlighted areas on diagram

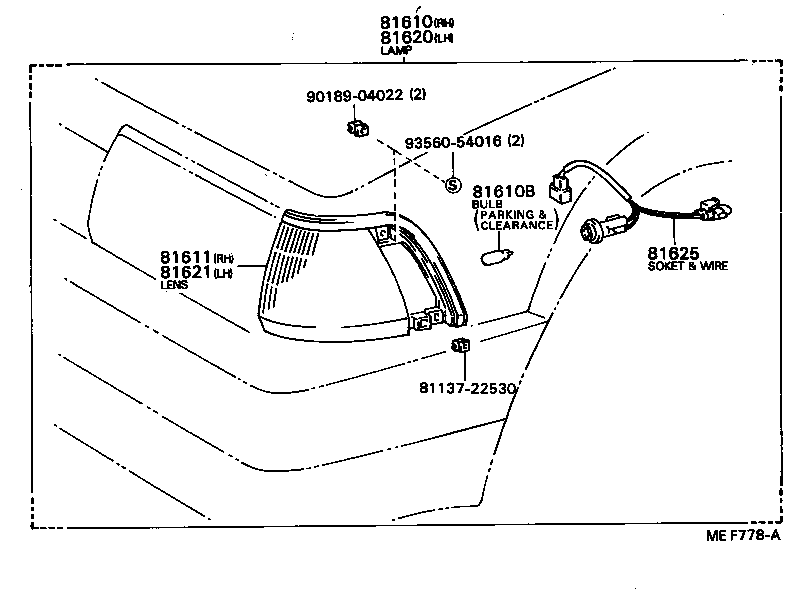

diagram 8113722530 81610 81610B 81611 81620 81621 81625 9018904022 9356054016
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19575

AE81,82,CE80,EE80..3D,5D2

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE8#,CE80,EE80

12V 5W,12V 5W(PARKING & CLEARANCE)

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12250

AE81,82,CE80,EE80..3D,5D2

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19575

AE81,82,CE80,EE80..3D,5D2

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12250

AE81,82,CE80,EE80..3D,5D2

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-12250

AE81,82,CE80,EE80..3D,5D2

 2
Common parts
81137-22530
90189-04022
93560-54016
