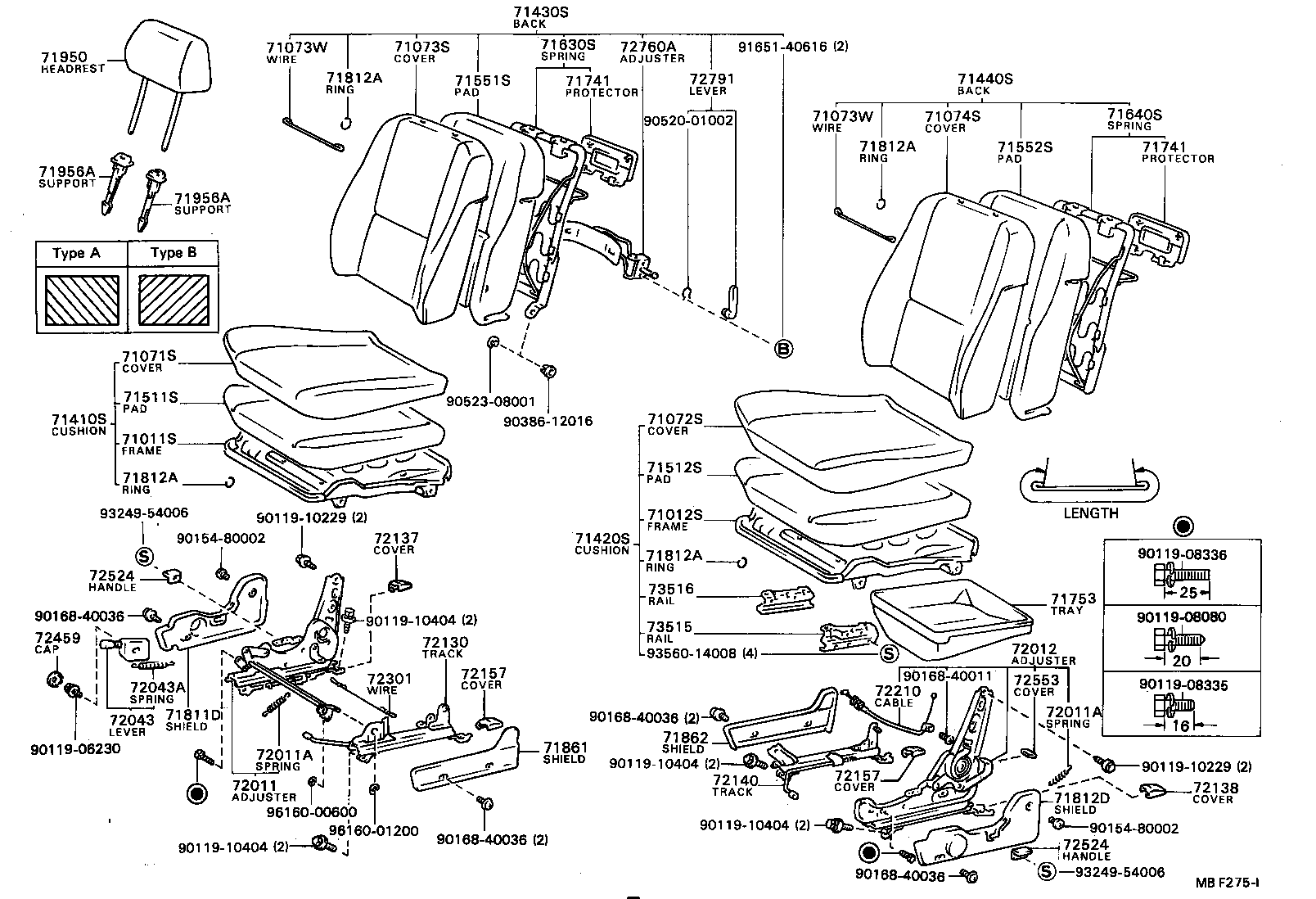

AE81-EGHNS (1984)
Toyota Corolla
(8305-8505)CTD,DX,FXD,FXG,FXL,GL,SE,SX ; (8505-)3D,4D,5D2..CTD,DX,FXD,FXG,FXL,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12180 |
AE80,81..FXL,GL LIME |
1 | ||
| 71011-12170 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX |
1 | ||
| 71011-12190 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12190 |
AE8#,CE80,EE80 |
1 | ||
| 71011-12170 |
AE8#,CE80,EE80 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1E57106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E57103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1E57003 |
AE81..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E57006 |
AE81..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E61006 |
AE81..FXL LIME,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E57103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E57106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1E71006 |
AE81..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1E72006 |
AE81..FXL LIME,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1E71003 |
AE81..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E71106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1E71103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20164 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS,L=460 |
2 | ||
| 90580-20129 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS,L=490 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20164 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS,L=460 |
2 | ||
| 90580-20129 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS,L=490 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1A55006 |
AE81..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1A55003 |
AE81..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1A69006 |
AE81..FXL LIME,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1A55106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1A55103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1E19006 |
AE81..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E19003 |
AE81..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E22006 |
AE81..FXL LIME,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E19103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E19106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E19203 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E19206 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1E19103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E19106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E19206 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E19203 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H12003 |
AE81..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1H13006 |
AE81..FXL LIME,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1H12006 |
AE81..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1H12106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1H12103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1E30003 |
AE81..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1E46006 |
AE81..FXL LIME,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1E30006 |
AE81..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1E30106 |
AE81,CE80,EE80..FXL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1E30103 |
AE81,CE80,EE80..FXL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12480 |
AE81,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXL,GL) |
1 | ||
| 71511-12480 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12480 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX |
1 | ||
| 71511-12480 |
AE81,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXL,GL) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12430 |
AE81,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXL,GL) W/O *FFS |
1 | ||
| 71551-12430 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12430 |
AE81,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXL,GL) W/O *FFS |
1 | ||
| 71551-12430 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12310 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS |
1 | ||
| 71630-12310 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) W/O *FFS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12270 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS |
1 | ||
| 71640-12270 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) |
1 | ||
| 71741 - PROTECTOR, FRONT SEAT BACK HEADREST STAY | ||||
| 71771-12030 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX |
2 | ||
| 71771-12030 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) |
2 | ||
| 71741 - PROTECTOR, FRONT SEAT BACK HEADREST STAY | ||||
| 71771-12030 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX |
2 | ||
| 71771-12030 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) |
2 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-12010 |
AE80,81..FXL,GL LIME |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1208003 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208003 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208006 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) BROWN,BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1012003 |
AE81,EE80..3D GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1012006 |
AE81,EE80..3D BROWN,BROWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1201003 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS,GRAY,GRAY,TRIM1# |
1 | ||
| 71861-1201003 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) GRAY,GRAY,TRIM1# |
1 | ||
| 71861-1201006 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) BROWN,BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1201003 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS,GRAY,GRAY,TRIM1# |
1 | ||
| 71862-1201003 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) GRAY,GRAY,TRIM1# |
1 | ||
| 71862-1201006 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) BROWN,BROWN,TRIM4# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1235003 |
AE8#,CE80..CTD,DX,FXD,FXL,GL,SX GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1235005 |
AE8#,CE80..CTD,DX,FXD,FXL,GL,SX BEIGE,BEIGE,TRIM3# |
2 | ||
| 71910-1237006 |
AE81..FXL LIME,BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1263003 |
AE81,CE80,EE80..FXL GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1263006 |
AE81,CE80,EE80..FXL BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
AE81,82..FXD,FXG,FXL,FXR,FXT,GT ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001001 |
AE81,82..FXD,FXG,FXL,FXR,FXT,GT ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001001 |
AE8#,CE80,EE80 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006016 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX ﾛｯｸ付,W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX ﾛｯｸ無,W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
AE8#,CE80,EE80 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
AE81,82..FXD,FXG,FXL,FXR,FXT,GT ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001001 |
AE81,82..FXD,FXG,FXL,FXR,FXT,GT ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1001001 |
AE8#,CE80,EE80 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006016 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX ﾛｯｸ付,W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX ﾛｯｸ無,W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
AE8#,CE80,EE80 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12410 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) |
2 | ||
| 90506-18015 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) |
2 | ||
| 90506-18015 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12470 |
AE81,EE80..3D |
1 | ||
| 72043A - SPRING, TENSION (FOR SEAT LIFTER LEVER) | ||||
| 90506-04001 |
AE80,81..FXL,GL LIME |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12350 |
AE80,81..FXL,GL LIME |
1 | ||
| 72130-12430 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,GL,SE,SX W/O *FFS |
1 | ||
| 72130-12430 |
AE8#,CE80,EE80..(3D,4D,5D2)..(CTD,DX,FXD,FXG,FXL,GL,SE) |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1201003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1201003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12260 |
AE81,EE80..3D |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1201003 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72138-1201003 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1201003 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72138-1201003 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-12090 |
AE81,EE80..3D |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-12070 |
AE80,81..FXL,GL LIME |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209006 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX RH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203006 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX LH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209003 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209006 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX RH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203006 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,GL,SE,ZX LH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209003 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE81,EE80..3D |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73515-12010 |
AE80,81..FXL,GL LIME |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73516-12010 |
AE80,81..FXL,GL LIME |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-08336 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-40616 | ||||
| 93249-54006 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
