AE81-EGHNS (1984)

Toyota Corolla

Production Oct 1984 - Apr 1987
Engine 3ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

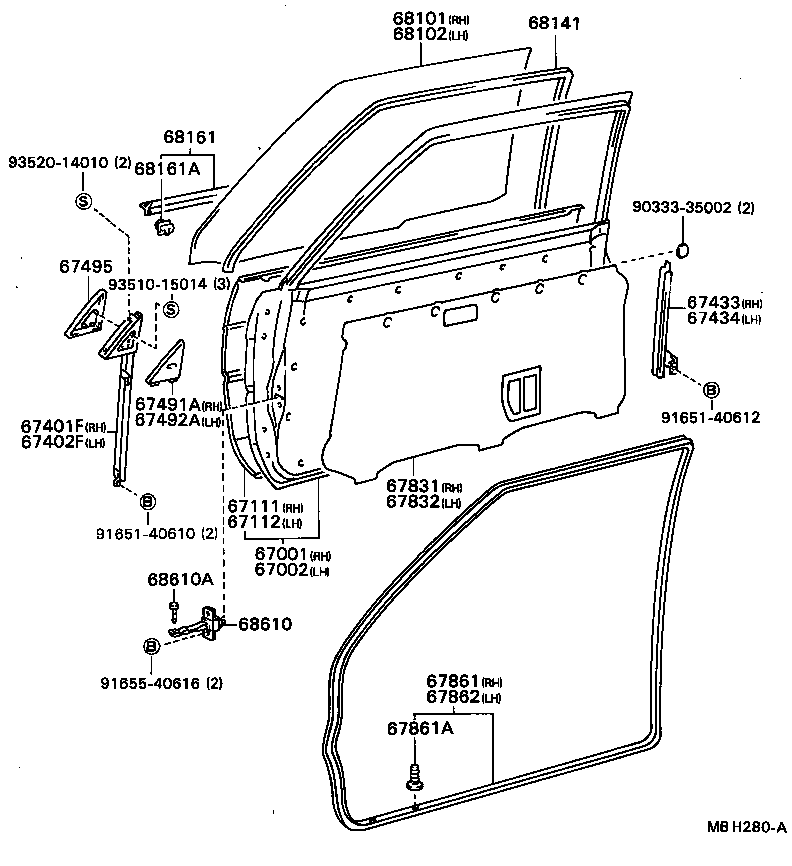

ILLUST NO. 1 OF 2(8410- )3D

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67433 67434 67491A 67492A 67495 67831 67832 67861 67861A 67862 68101 68102 68141 68161 68161A 68610 68610A 9033335002 9165140610 9165140612 9165540616 9351015014 9352014010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A070

AE81,82,EE80..3D

 1
67001-1A081

AE8#,EE80..3D

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A050

AE81,82,EE80..3D

 1
67002-1A061

AE8#,EE80..3D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12420

AE81,82,EE80..3D

 1
67111-12421

AE8#,EE80..3D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12410

AE81,82,EE80..3D

 1
67112-12411

AE8#,EE80..3D

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12250

AE81,82,EE80..3D

 1
67401-12251

AE8#,EE80..3D

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12270

AE81,82,EE80..3D

 1
67402-12271

AE8#,EE80..3D

 1
67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH
67403-12060

AE81,82,EE80..3D

 1
67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH
67404-12060

AE81,82,EE80..3D

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12140

AE81,82,EE80..3D

 1
67491-12141

AE8#,EE80..3D

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12151

AE8#,EE80..3D

 1
67492-12150

AE81,82,EE80..3D

 1
67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67495-12100

AE81,82,EE80..3D..(FXG,FXL,FXR,FXT)

RH

 1
67496-12100

AE81,82,EE80..3D..(FXG,FXL,FXR,FXT)

LH

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12300

AE81,82,EE80..3D

 1
67831-12310

AE81,82,EE80..3D

COLD SPEC

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-12310

AE81,82,EE80..3D

COLD SPEC

 1
67832-12160

AE81,82,EE80..3D

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12580

AE81,82,EE80..3D

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

AE8#,CE80,EE80

 40
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12560

AE81,82,EE80..3D

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-1A220

AE81,82,EE80..3D

*TT,T=3.5

 1
68111-1A230

AE8#,EE80..3D..(FXG,FXL,FXR,FXT)

*TEM,T=3.5,BRONZE

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-1A220

AE81,82,EE80..3D

*TT,T=3.5

 1
68112-1A230

AE8#,EE80..3D..(FXG,FXL,FXR,FXT)

*TEM,T=3.5,BRONZE

 1
68141 - RUN, FRONT DOOR GLASS
68141-12240

AE81,82,EE80..3D

 2
68610 - CHECK ASSY, FRONT DOOR
68610-12030

AE8#,CE80,EE80

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-90A00

AE8#,CE80,EE80

 2
Common parts
90333-35002
91651-40610
91651-40612
91655-40616
93510-15014
93520-14010

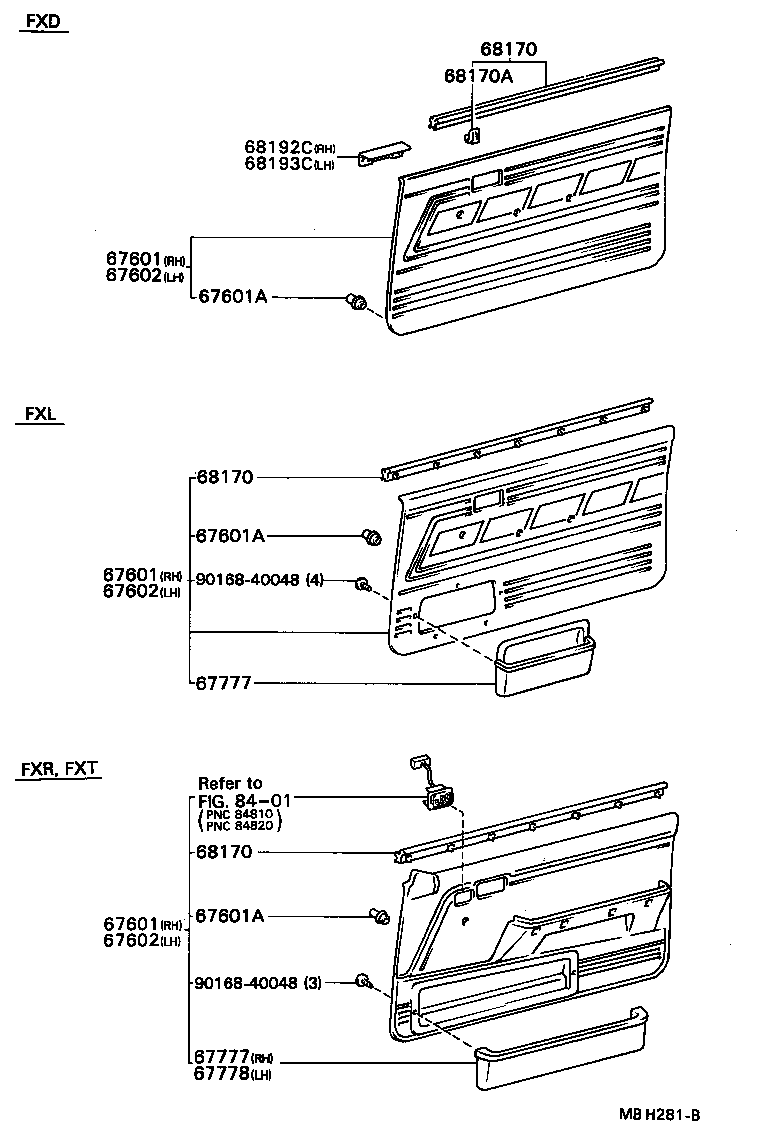

ILLUST NO. 2 OF 2(8410- )3D

Click highlighted areas on diagram

diagram 67601 67601 67601 67601A 67601A 67601A 67602 67602 67602 67777 67777 67778 68170 68170 68170 68170A 68192C 68193C 8401 9016840048 9016840048
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1268003

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67610-1A17006

AE81..3D..FXL

COLD SPEC,LIME,BROWN,BROWN,TRIM4#

 1
67610-1A10006

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67610-1A10003

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67650-1268006

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67650-1271006

AE81..3D..FXL

LIME,BROWN,BROWN,TRIM4#

 1
67610-1A10016

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67610-1A10013

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67650-1268013

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67650-1268016

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1268003

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67610-1A17006

AE81..3D..FXL

COLD SPEC,LIME,BROWN,BROWN,TRIM4#

 1
67610-1A10006

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67610-1A10003

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67650-1268006

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67650-1271006

AE81..3D..FXL

LIME,BROWN,BROWN,TRIM4#

 1
67610-1A10016

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67610-1A10013

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67650-1268013

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67650-1268016

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1268003

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67610-1A17006

AE81..3D..FXL

COLD SPEC,LIME,BROWN,BROWN,TRIM4#

 1
67610-1A10006

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67610-1A10003

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67650-1268006

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67650-1271006

AE81..3D..FXL

LIME,BROWN,BROWN,TRIM4#

 1
67610-1A10016

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67610-1A10013

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67650-1268013

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67650-1268016

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A47006

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67620-1A47003

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67620-1A67003

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67620-1A50006

AE81..3D..FXL

LIME,BROWN,BROWN,TRIM4#

 1
67620-1A68006

AE81..3D..FXL

COLD SPEC,LIME,BROWN,BROWN,TRIM4#

 1
67620-1A67006

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67620-1A47013

AE81,EE80..3D..FXL

GRAY,GRAY,TRIM1#

 1
67620-1A67013

AE81,EE80..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67620-1A67016

AE81,EE80..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67620-1A47016

AE81,EE80..3D..FXL

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A47006

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67620-1A47003

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67620-1A67003

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67620-1A50006

AE81..3D..FXL

LIME,BROWN,BROWN,TRIM4#

 1
67620-1A68006

AE81..3D..FXL

COLD SPEC,LIME,BROWN,BROWN,TRIM4#

 1
67620-1A67006

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67620-1A47013

AE81,EE80..3D..FXL

GRAY,GRAY,TRIM1#

 1
67620-1A67013

AE81,EE80..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67620-1A67016

AE81,EE80..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67620-1A47016

AE81,EE80..3D..FXL

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A47006

AE81..3D..FXL

BROWN,BROWN,TRIM4#

 1
67620-1A47003

AE81..3D..FXL

GRAY,GRAY,TRIM1#

 1
67620-1A67003

AE81..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67620-1A50006

AE81..3D..FXL

LIME,BROWN,BROWN,TRIM4#

 1
67620-1A68006

AE81..3D..FXL

COLD SPEC,LIME,BROWN,BROWN,TRIM4#

 1
67620-1A67006

AE81..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67620-1A47013

AE81,EE80..3D..FXL

GRAY,GRAY,TRIM1#

 1
67620-1A67013

AE81,EE80..3D..FXL

COLD SPEC,GRAY,GRAY,TRIM1#

 1
67620-1A67016

AE81,EE80..3D..FXL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
67620-1A47016

AE81,EE80..3D..FXL

BROWN,BROWN,TRIM4#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12100

AE81,82,EE80..3D..(FXG,FXL,FXR,FXT)

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12100

AE81,82,EE80..3D..(FXG,FXL,FXR,FXT)

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12100

AE81,82,EE80..3D..(FXG,FXL,FXR,FXT)

 2
Common parts
90168-40048
Linked diagrams
8401
