AE81-EEMES (1983)
Toyota Corolla

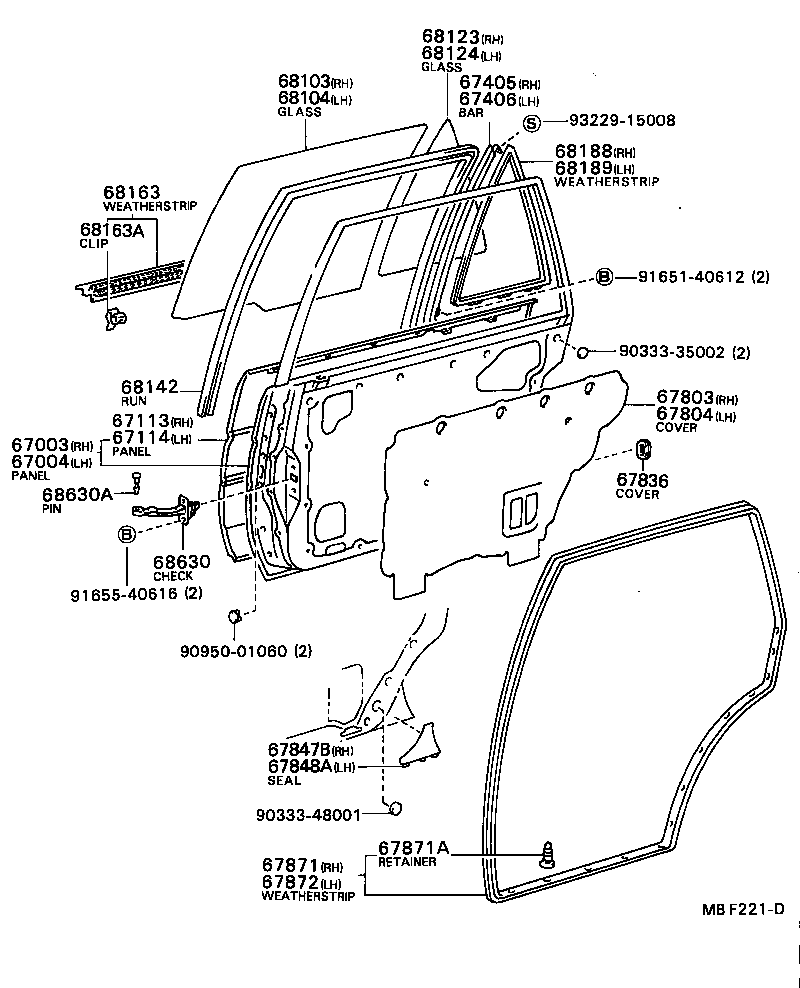

ILLUST NO. 1 OF 2(8305- )4D,5D2,5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12310 |
AE8#,CE80,EE80..4D |
1 | ||
| 67003-12290 |
AE8#,CE80,EE80..4D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12290 |
AE8#,CE80,EE80..4D |
1 | ||
| 67004-12310 |
AE8#,CE80,EE80..4D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12110 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67113-12100 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12110 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67114-12100 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12110 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67407-12100 |
AE81,82,CE80..GL,SE,SR,SX |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12100 |
AE81,82,CE80..GL,SE,SR,SX |
1 | ||
| 67408-12110 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12180 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67841-12160 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 67841-12180 |
AE81..GL,SE,SX,ZX COLD SPEC |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12040 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 67841-12180 |
AE81..GL,SE,SX,ZX COLD SPEC |
1 | ||
| 67841-12180 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12030 |
AE81..GL,SE,SX,ZX COLD SPEC |
2 | ||
| 67836-12030 |
AE8#,CE80,EE80..4D,5D2,5D3 COLD SPEC |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-12010 |
AE81..GL,SE,SX,ZX COLD SPEC |
1 | ||
| 67847-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 COLD SPEC |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-12010 |
AE81..GL,SE,SX,ZX COLD SPEC |
1 | ||
| 67848-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 COLD SPEC |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12170 |
AE8#,CE80,EE80..4D |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE8#,CE80,EE80..4D,5D2,5D3 |
34 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12170 |
AE8#,CE80,EE80..4D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12140 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXR,GL,GT,SE,SR,SX,ZX) *TEM,T=3.5,BRONZE |
1 | ||
| 68113-12130 |
AE8#,CE80,EE80..4D,5D2,5D3 *TT,T=3.5 |
1 | ||
| 68113-12140 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) *TEM,T=3.5,BRONZE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12130 |
AE8#,CE80,EE80..4D,5D2,5D3 *TT,T=3.5 |
1 | ||
| 68114-12140 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXR,GL,GT,SE,SR,SX,ZX) *TEM,T=3.5,BRONZE |
1 | ||
| 68114-12140 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) *TEM,T=3.5,BRONZE |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-12190 |
AE8#,CE80,EE80..GL,GT,SE,SR *TEM,T=3.5,BRONZE |
1 | ||
| 68123-12180 |
AE8#,CE80,EE80..4D *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-12190 |
AE8#,CE80,EE80..GL,GT,SE,SR *TEM,T=3.5,BRONZE |
1 | ||
| 68124-12180 |
AE8#,CE80,EE80..4D *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-12050 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12100 |
AE81,82,CE80,EE80..GL,GT,SE,SR |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12100 |
AE81,82,CE80,EE80..GL,GT,SE,SR |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12020 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-90A00 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| 68617-22010 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
2 | ||
| 68617-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| Common parts | ||||
| 90333-35002 | ||||
| 90333-48001 | ||||
| 90950-01060 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93229-15008 | ||||

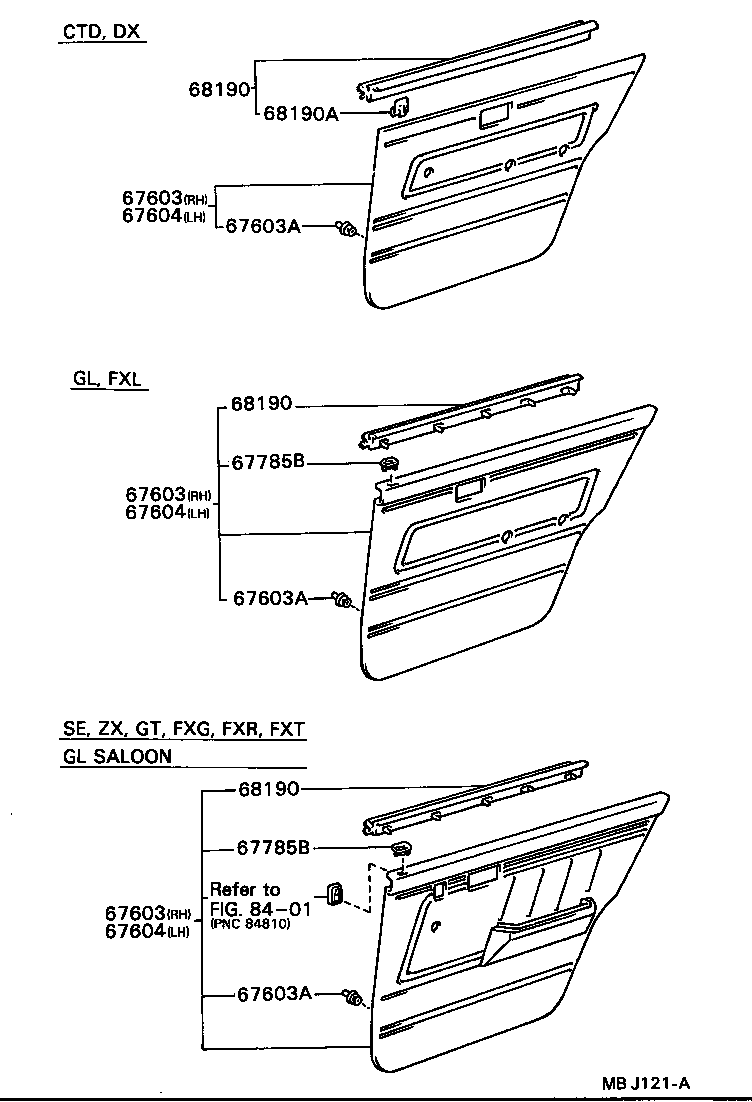

ILLUST NO. 2 OF 2(8305-8505)4D,5D2,5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1A35006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1A36006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1A35006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1A36006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1A35006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1A36006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1A34006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1A35006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1A34006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1A35006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1A34006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1A35006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..GL,SE,SR,SX,ZX BLACK,BLACK |
2 | ||
| 69751-2006003 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006004 |
AE8#,CE80,EE80..GL,SE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006006 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,GL,SE,ZX) BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..GL,SE,SR,SX,ZX BLACK,BLACK |
2 | ||
| 69751-2006003 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006004 |
AE8#,CE80,EE80..GL,SE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006006 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,GL,SE,ZX) BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-12010 |
AE8#,CE80..GL,SE,SR,SX,ZX |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-12010 |
AE8#,CE80..GL,SE,SR,SX,ZX |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68173-12060 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68173-12060 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68173-12060 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) |
2 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
10 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8505- )4D,5D2,5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1A35006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1A36006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1A35006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1A36006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1A35006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1A36006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1A34006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1A35006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1A34006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1A35006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1234002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1234003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1234004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241003 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241004 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241002 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241102 |
AE81,CE80..SE COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1247002 |
AE81,CE80..SE MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1241103 |
AE81,CE80..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247003 |
AE81,CE80..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247004 |
AE81,CE80..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241104 |
AE81,CE80..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241106 |
AE81,CE80..SE COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247006 |
AE81,CE80..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1241203 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1241204 |
AE8#,CE80..4D COLD SPEC,W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1241206 |
AE8#,CE80..(4D,5D2)..(FXG,SE) COLD SPEC,W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1247103 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1247106 |
AE8#,CE80..(4D,5D2)..(FXG,SE) W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263003 |
AE8#..SE COLD SPEC,W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262006 |
AE8#..SE W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263006 |
AE8#..SE COLD SPEC,W/*PW,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1263004 |
AE8#..SE COLD SPEC,W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1247104 |
AE8#,CE80..SE W/O *PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1262003 |
AE8#..SE W/*PW,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1262004 |
AE8#..SE W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1A34006 |
AE81..SE SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1A35006 |
AE81..SE COLD SPEC,SALOON LIMITED,BROWN,BROWN,TRIM4# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..GL,SE,SR,SX,ZX BLACK,BLACK |
2 | ||
| 69751-2006003 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006004 |
AE8#,CE80,EE80..GL,SE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006006 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,GL,SE,ZX) BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..GL,SE,SR,SX,ZX BLACK,BLACK |
2 | ||
| 69751-2006003 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006004 |
AE8#,CE80,EE80..GL,SE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69751-2006006 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,GL,SE,ZX) BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68173-12060 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68173-12060 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68173-12060 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,ZX) |
2 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
10 | ||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
