AE81-EEKNS (1983)

Toyota Corolla

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)2ALU,3ALU

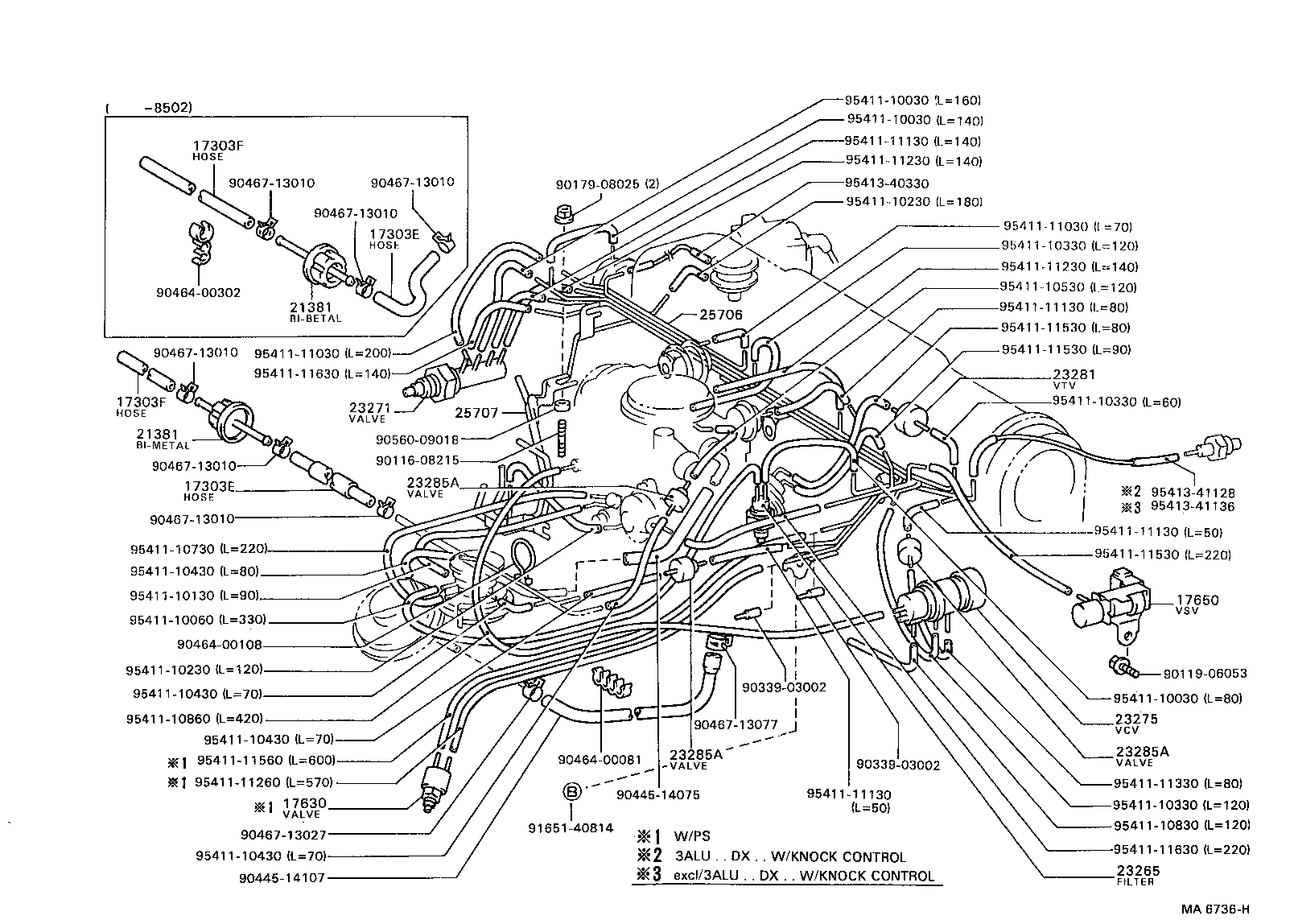

Click highlighted areas on diagram

diagram 17303E 17303E 17303F 17303F 17630 17650 21381 21381 23265 23271 23275 23281 23285A 23285A 23285A 25706 25707 9011608215 9011906053 9017908025 9033903002 9033903002 9044514075 9044514107 9046400081 9046400108 9046400302 9046713010 9046713010 9046713010 9046713010 9046713010 9046713010 9046713027 9046713077 9056009018 9165140814 9541110030 9541110030 9541110030 9541110060 9541110130 9541110230 9541110230 9541110330 9541110330 9541110330 9541110430 9541110430 9541110430 9541110430 9541110530 9541110730 9541110830 9541110860 9541111030 9541111030 9541111130 9541111130 9541111130 9541111130 9541111230 9541111230 9541111260 9541111330 9541111530 9541111530 9541111530 9541111560 9541111630 9541111630 9541340330 9541341128 9541341136
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
77791-12041

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 1
90445-14084

2ALU,3ALU..AE80,81

 1
90445-14151

3ALU..AE81

 1
77791-12040

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
77791-12041

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 1
90445-14084

2ALU,3ALU..AE80,81

 1
90445-14151

3ALU..AE81

 1
77791-12040

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90445-14108

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 1
90445-14097

3ALU..AE81

 1
77759-12060

2ALU,3ALU..AE80,81

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90445-14108

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 1
90445-14097

3ALU..AE81

 1
77759-12060

2ALU,3ALU..AE80,81

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15010

2ALU,3ALU..AE80,81..GL,SE,SX,ZX

W/PS

 1
17630-15030

2ALU,3ALU..AE80,81..GL,SE,SX,ZX

W/PS

 1
17630-15030

3ALU..AE81

W/PS

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12330

3ALU..AE81

 1
89570-12220

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX

 1
89570-12280

2ALU,3ALU..AE80,81

 1
21381 - BIMETAL, THERMOSTATIC
21381-15320

2ALU,3ALU..AE80,81

 1
21381 - BIMETAL, THERMOSTATIC
21381-15320

2ALU,3ALU..AE80,81

 1
23265 - FILTER, GAS, NO.1
90917-11023

2ALU,3ALU..AE80,81

 1
90917-11023

3ALU..AE81

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

2ALU,3ALU..AE80,81

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03145

2ALU,3ALU..AE80,81

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01091

2ALU,3ALU..AE80,81..MTM

 1
90925-01091

3ALU..AE81

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2ALU,3ALU..AE80,81

 3
23285A - VALVE, CHECK, NO.1
90917-10049

2ALU,3ALU..AE80,81

 3
23285A - VALVE, CHECK, NO.1
90917-10049

2ALU,3ALU..AE80,81

 3
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15200

3ALU..AE81

 1
25706-15151

2ALU,3ALU..AE80,81

 1
25706-15150

2ALU,3ALU..AE80,81

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16010

3ALU..AE81

 1
25707-16010

2ALU,3ALU..AE80,81

 1
25707-15170

2ALU,3ALU..AE80,81

 1
Common parts
90116-08215
90119-06053
90179-08025
90339-03002
90445-14075
90445-14107
90464-00081
90464-00108
90464-00302
90467-13010
90467-13027
90467-13077
90560-09018
91651-40814
95411-10030
95411-10060
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10730
95411-10830
95411-10860
95411-11030
95411-11130
95411-11230
95411-11260
95411-11330
95411-11530
95411-11560
95411-11630
95413-40330
95413-41128
95413-41136

(8505- )3ALU

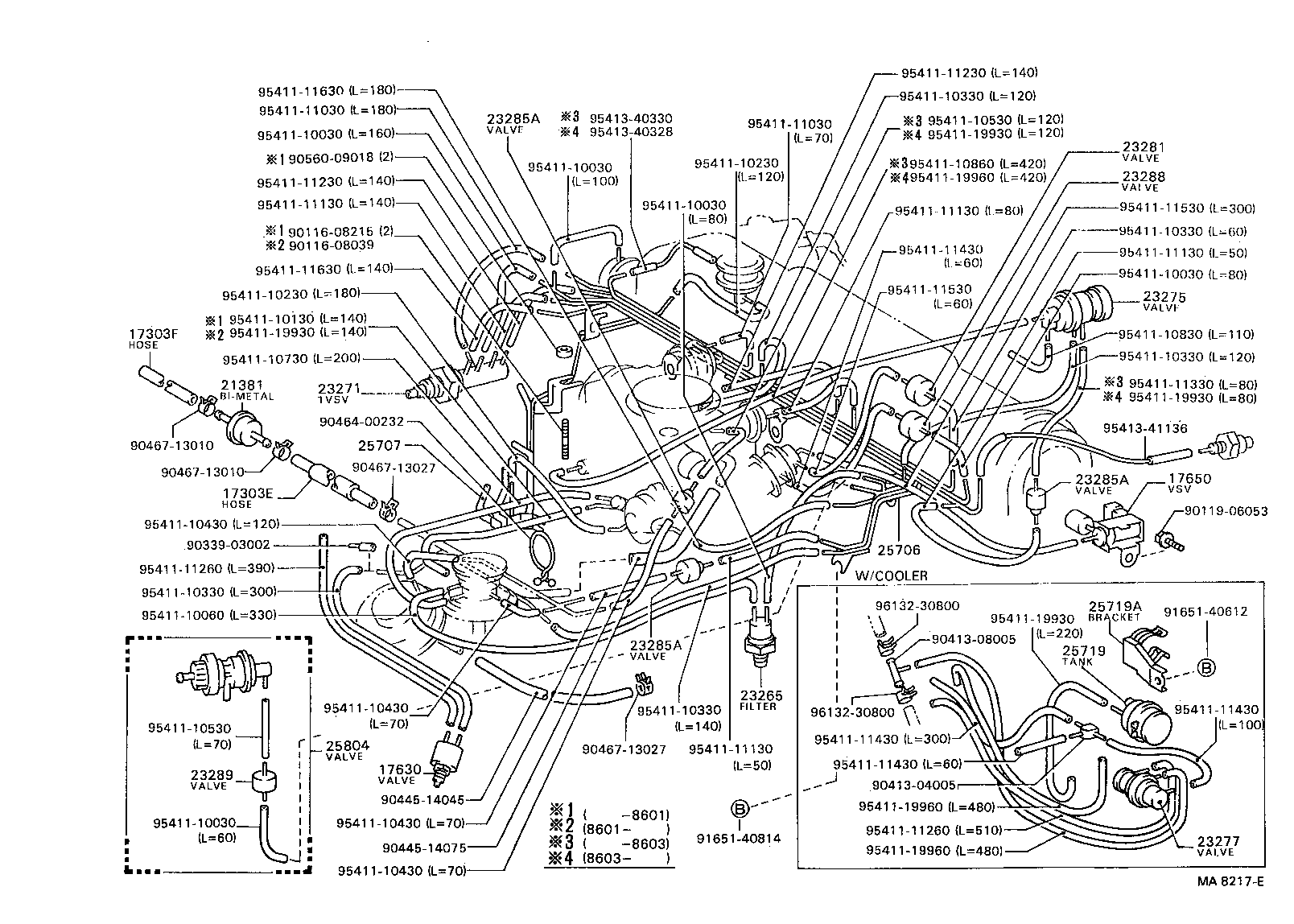

Click highlighted areas on diagram

diagram 17303E 17303F 17630 17650 21381 23265 23271 23275 23277 23281 23285A 23285A 23285A 23288 23289 25706 25707 25719 25719A 25804 9011608039 9011608215 9011906053 9033903002 9041304005 9041308005 9044514045 9044514075 9046400232 9046713010 9046713010 9046713027 9046713027 9056009018 9165140612 9165140814 9541110030 9541110030 9541110030 9541110030 9541110030 9541110060 9541110130 9541110230 9541110230 9541110330 9541110330 9541110330 9541110330 9541110330 9541110430 9541110430 9541110430 9541110430 9541110530 9541110530 9541110730 9541110830 9541110860 9541111030 9541111030 9541111130 9541111130 9541111130 9541111130 9541111230 9541111230 9541111260 9541111260 9541111330 9541111430 9541111430 9541111430 9541111430 9541111530 9541111530 9541111630 9541111630 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541340328 9541340330 9541341136 9613230800 9613230800
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
77791-12041

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 1
90445-14084

2ALU,3ALU..AE80,81

 1
90445-14151

3ALU..AE81

 1
77791-12040

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90445-14108

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX

 1
90445-14097

3ALU..AE81

 1
77759-12060

2ALU,3ALU..AE80,81

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15010

2ALU,3ALU..AE80,81..GL,SE,SX,ZX

W/PS

 1
17630-15030

2ALU,3ALU..AE80,81..GL,SE,SX,ZX

W/PS

 1
17630-15030

3ALU..AE81

W/PS

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12330

3ALU..AE81

 1
89570-12220

2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX

 1
89570-12280

2ALU,3ALU..AE80,81

 1
21381 - BIMETAL, THERMOSTATIC
21381-15320

2ALU,3ALU..AE80,81

 1
23265 - FILTER, GAS, NO.1
90917-11023

2ALU,3ALU..AE80,81

 1
90917-11023

3ALU..AE81

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

2ALU,3ALU..AE80,81

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03145

2ALU,3ALU..AE80,81

 1
23277 - VALVE, VACUUM CONTROL, NO.3
90925-03153

3ALU..AE81

W/COOLER

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01091

2ALU,3ALU..AE80,81..MTM

 1
90925-01091

3ALU..AE81

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2ALU,3ALU..AE80,81

 3
23285A - VALVE, CHECK, NO.1
90917-10049

2ALU,3ALU..AE80,81

 3
23285A - VALVE, CHECK, NO.1
90917-10049

2ALU,3ALU..AE80,81

 3
23288 - JET, NO.1
90925-04013

3ALU..AE81

 1
23289 - JET, NO.2
90925-04012

3ALU..AE81

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15200

3ALU..AE81

 1
25706-15151

2ALU,3ALU..AE80,81

 1
25706-15150

2ALU,3ALU..AE80,81

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16010

3ALU..AE81

 1
25707-16010

2ALU,3ALU..AE80,81

 1
25707-15170

2ALU,3ALU..AE80,81

 1
25719 - TANK, VACUUM SURGE
25719-15010

3ALU..AE81

W/COOLER

 1
25719A - BRACKET, VACUUM TANK CLAMP
44756-12020

3ALU..AE81

W/COOLER

 1
25804 - VALVE SET, VACUUM CONTROL
25804-12010

3ALU..AE81

 1
Common parts
90116-08039
90116-08215
90119-06053
90339-03002
90413-04005
90413-08005
90445-14045
90445-14075
90464-00232
90467-13010
90467-13027
90560-09018
91651-40612
91651-40814
95411-10030
95411-10060
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10730
95411-10830
95411-10860
95411-11030
95411-11130
95411-11230
95411-11260
95411-11330
95411-11430
95411-11530
95411-11630
95411-19930
95411-19960
95413-40328
95413-40330
95413-41136
96132-30800

(8305- )2ALU,3ALU,4A#

Click highlighted areas on diagram

diagram 9541110030 9541110160 9541119995
Part # Description Qty Price
Common parts
95411-10030
95411-10160
95411-19995
