AE81-EEHNS (1983)
Toyota Corolla

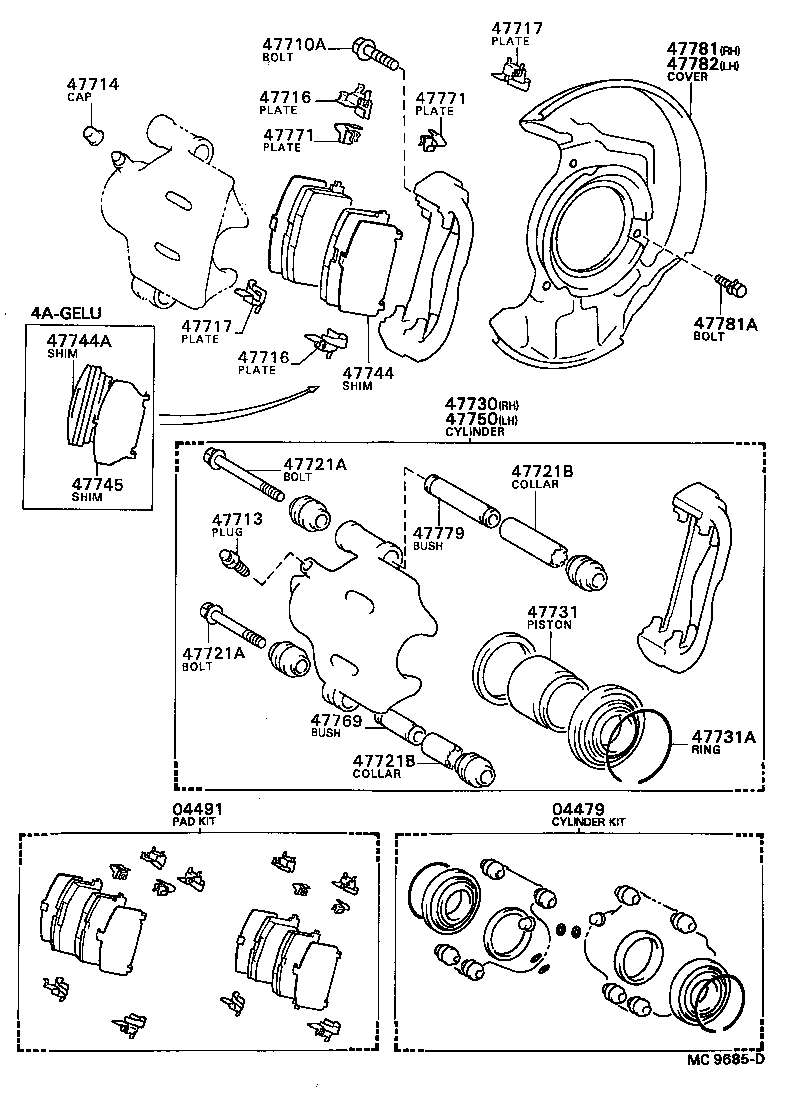

ILLUST NO. 1 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-16020 |
AE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX;AE80,82,CE80..CTD,DX,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 04479-16021 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-12170 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
AE8#,CE80,EE80 *12−1.25PX25.8−19.5 |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AE8#,CE80,EE80 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AE8#,CE80,EE80 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32010 |
AE8#,CE80,EE80 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32010 |
AE8#,CE80,EE80 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32010 |
AE8#,CE80,EE80 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32010 |
AE8#,CE80,EE80 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09003 |
AE8#,CE80,EE80 *9−1.25PX71−25,*9-1.25PX73-25 |
2 | ||
| 90119-09004 |
AE8#,CE80,EE80 *9−1.25PX91−25,*9-1.25PX93-25 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09003 |
AE8#,CE80,EE80 *9−1.25PX71−25,*9-1.25PX73-25 |
2 | ||
| 90119-09004 |
AE8#,CE80,EE80 *9−1.25PX91−25,*9-1.25PX93-25 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-15004 |
AE8#,CE80,EE80 L=12 |
2 | ||
| 90387-15005 |
AE8#,CE80,EE80 L=22 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-15004 |
AE8#,CE80,EE80 L=12 |
2 | ||
| 90387-15005 |
AE8#,CE80,EE80 L=22 |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-12200 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-16020 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
AE8#,CE80,EE80 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-32010 |
AE8#,CE80,EE80 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-12200 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-16010 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-32010 |
AE8#,CE80,EE80 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-32010 |
AE8#,CE80,EE80 |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-16010 |
AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20140 |
AE8#,CE80,EE80 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
AE8#,CE80,EE80 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20140 |
AE8#,CE80,EE80 |
1 | ||
ILLUST NO. 2 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-20030 |
AE80,81,CE80,EE80 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-32220 |
AE80,81,CE80,EE80 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-32010 |
AE8#,CE80,EE80 |
1 | ||
