Toyota Corolla AE81 METER - JDM Part Detective

Part #	Description	Period	Qty

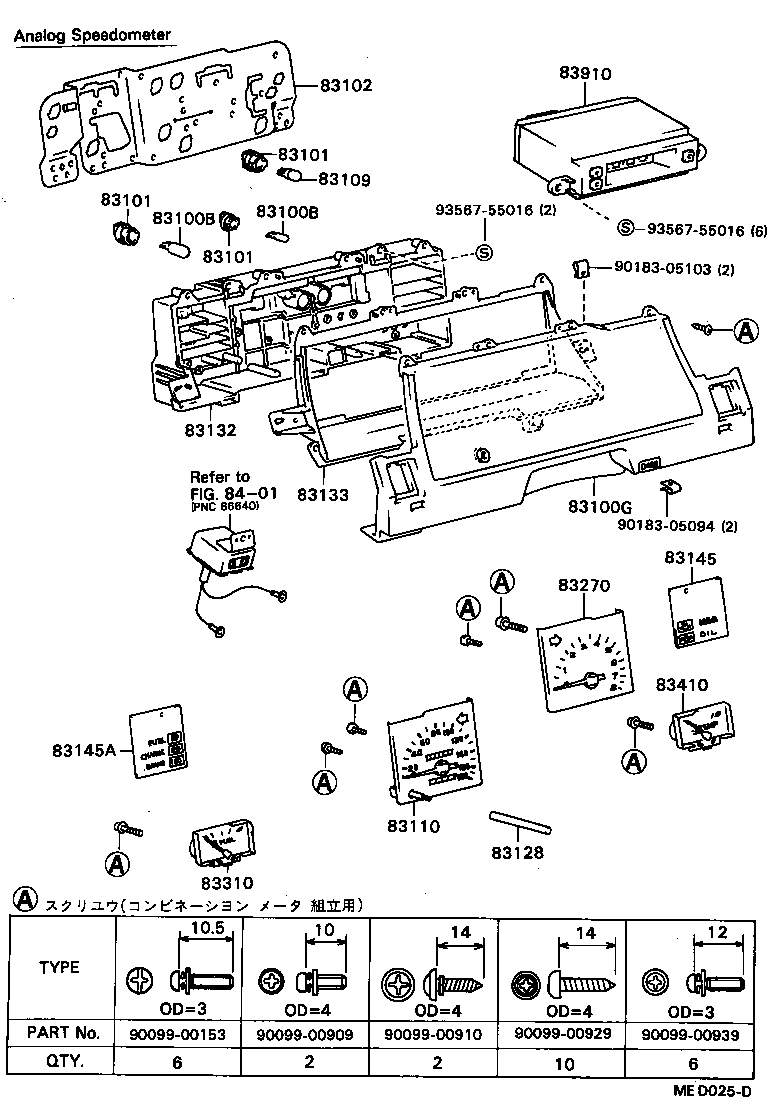

83100B - BULB, COMBINATION METER, NO.1
99132-12034	AE8#,CE80,EE80 12V 3.4W,12V 3.4W	05/1983 - 04/1987	8
90981-11018	AE8#,CE80,EE80..FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W	05/1983 - 04/1987	12
83100B - BULB, COMBINATION METER, NO.1
99132-12034	AE8#,CE80,EE80 12V 3.4W,12V 3.4W	05/1983 - 04/1987	8
90981-11018	AE8#,CE80,EE80..FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W	05/1983 - 04/1987	12
83100G - GLASS, COMBINATION METER
83138-12510	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX	05/1983 - 05/1985	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX OD=11.3	05/1983 - 04/1987	12
83101-14030	AE8#,CE80,EE80 OD=18,W/ANALOGUE METER	05/1983 - 04/1987	8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX OD=11.3	05/1983 - 04/1987	12
83101-14030	AE8#,CE80,EE80 OD=18,W/ANALOGUE METER	05/1983 - 04/1987	8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX OD=11.3	05/1983 - 04/1987	12
83101-14030	AE8#,CE80,EE80 OD=18,W/ANALOGUE METER	05/1983 - 04/1987	8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1A890	AE81..ATM..(FXG,SE,SX,ZX)	05/1983 - 04/1987	1
83109 - BULB, COMBINATION METER, NO.2
83109-24030	AE80,81,CE80,EE80 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1983 - 04/1987	3
83110 - SPEEDOMETER ASSY
83110-1A441	AE81..ATM..(FXG,SE,SX,ZX)	08/1984 - 05/1985	1
83110-1A440	AE81..ATM..(SE,SX,ZX)	05/1983 - 08/1984	1
83128 - KNOB, TRIP COUNTER
83128-12710	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX	05/1983 - 04/1987	1
83132 - CASE, COMBINATION METER
83132-12550	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX	05/1983 - 04/1987	1
83133 - PLATE, COMBINATION METER, NO.1
83133-12650	AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX	05/1983 - 05/1985	1
83145 - LENS, METER, NO.1
83145-1A070	AE81..FXG,SE,SX,ZX	05/1983 - 05/1985	1
83145A - LENS, METER, NO.2
83145-1A150	AE81,CE80..FXG,SE,SX,ZX	05/1983 - 05/1985	1
83270 - TACHOMETER ASSY, ENGINE
83242-12650	AE81,82..FXG,FXR,SE,SR,SX,ZX	05/1983 - 05/1985	1
83310 - GAGE ASSY, FUEL RECEIVER
83243-12590	AE81,82,CE80..FXG,FXR,SE,SR,SX,ZX	05/1983 - 05/1985	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-12890	AE81,82,CE80..FXG,FXR,SE,SR,SX,ZX	05/1983 - 05/1985	1
83910 - CLOCK ASSY
83910-12330	AE81,82,CE80..FXG,FXR,SE,SR,SX,ZX	05/1983 - 05/1985	1
Common parts
90099-00153
90099-00909
90099-00910
90099-00929
90099-00939
90183-05094
90183-05103
93567-55016
Linked diagrams
8401

AE81-EEHES (1983)

ILLUST NO. 1 OF 2(8305-8505)FXG,FXR,FXT,GT,SE,SR,SX,ZX

ILLUST NO. 2 OF 2(8305- )

Part Price Details

Part #	Description	Period	Qty
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-12320	AE80,81,CE80,EE80..3FC	05/1983 - 04/1987	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-12320	AE80,81,CE80,EE80..3FC	05/1983 - 04/1987	1
Common parts
83791-12040
91651-40612
