AE81-EEHDS (1983)
Toyota Corolla
Production
May 1983
-
Apr 1987
Engine
3ALU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

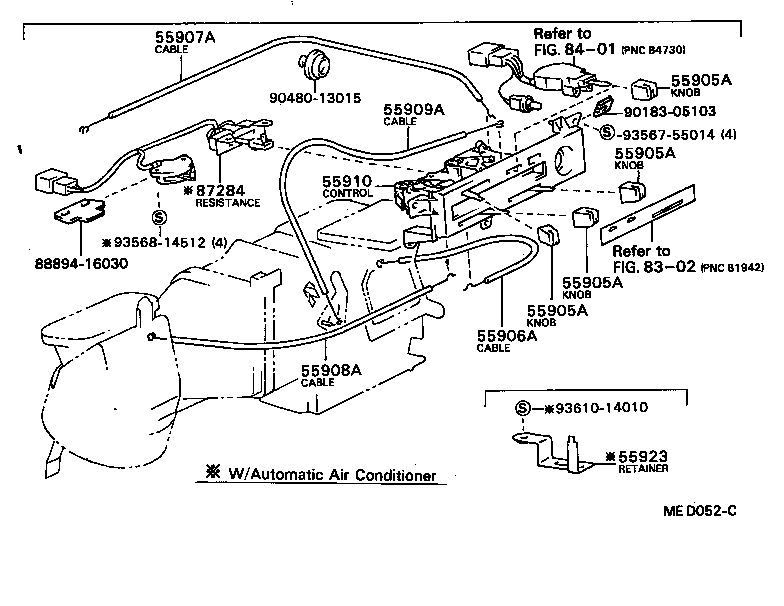

ILLUST NO. 1 OF 3(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12060 |
AE8#,CE80,EE80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12060 |
AE8#,CE80,EE80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12060 |
AE8#,CE80,EE80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12060 |
AE8#,CE80,EE80 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12180 |
AE8#,CE80,EE80 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12240 |
AE8#,CE80,EE80 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12160 |
AE8#,CE80,EE80 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12140 |
AE8#,CE80,EE80 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12340 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 88894-16030 | ||||
| 90183-05103 | ||||
| 90480-13015 | ||||
| 93567-55014 | ||||
| 93568-14512 | ||||
| 93610-14010 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

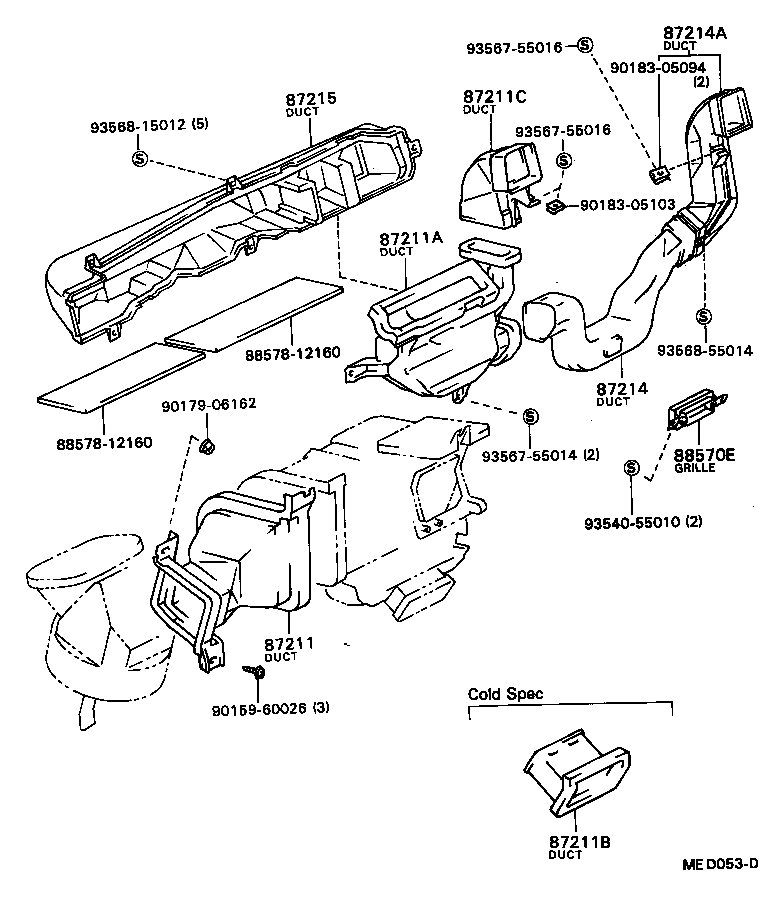

ILLUST NO. 2 OF 3(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-16040 |
AE8#,CE80,EE80 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-12040 |
AE8#,CE80,EE80 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-12110 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 55086-12120 |
AE8#,CE80 |
1 | ||
| 55086-12121 |
AE8#,CE80,EE80 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55844-12130 |
AE8#,CE80,EE80 |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55084-12080 |
AE8#,CE80 |
1 | ||
| 55084-12081 |
AE8#,CE80,EE80 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55087-12070 |
AE8#,CE80 |
1 | ||
| 55087-12071 |
AE8#,CE80,EE80 |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 55680-32010 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 88578-12160 | ||||
| 90159-60026 | ||||
| 90179-06162 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93540-55010 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-55014 | ||||

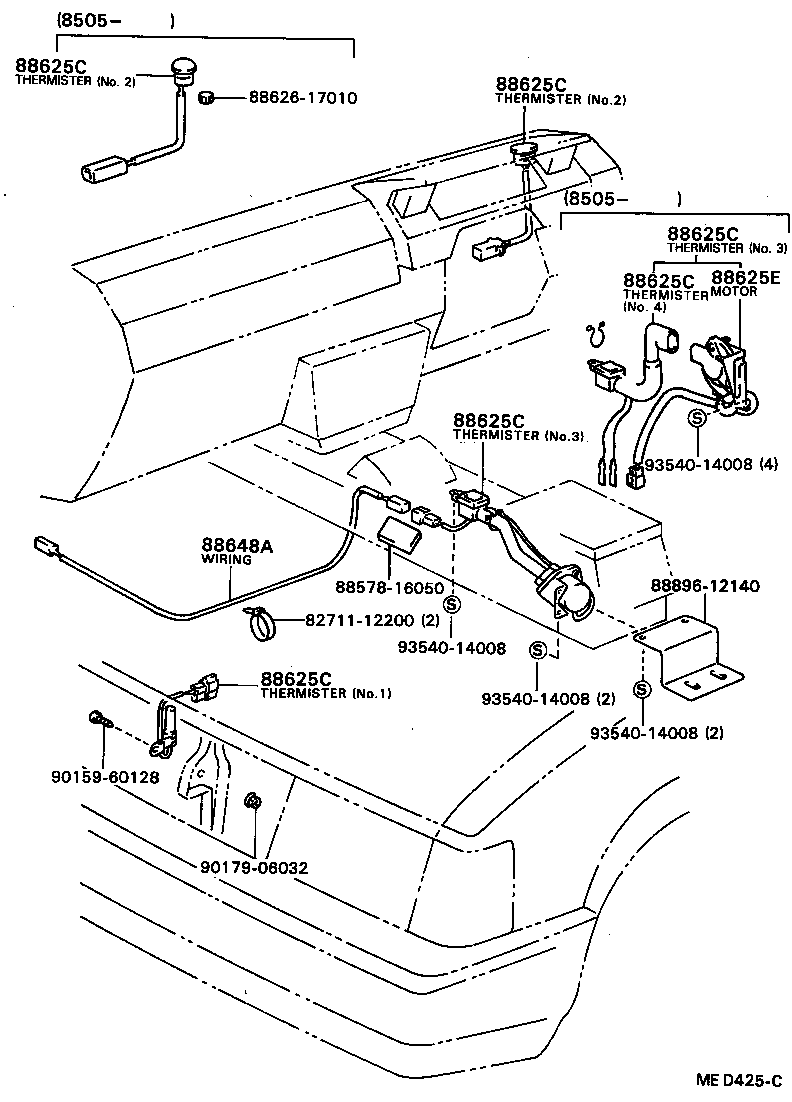

ILLUST NO. 3 OF 3(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 88578-16050 | ||||
| 88626-17010 | ||||
| 88896-12140 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 93540-14008 | ||||
