AE80-EEKNS (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 2ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

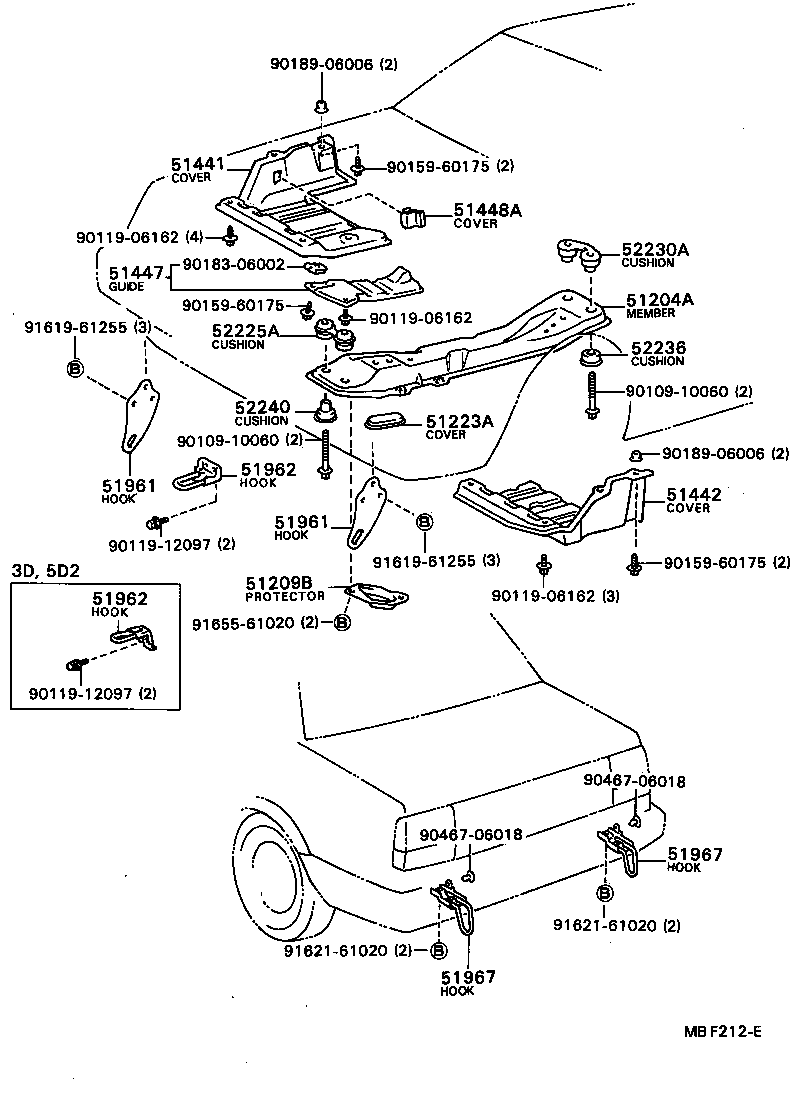

Click highlighted areas on diagram

diagram 51204A 51209B 51223A 51441 51442 51447 51448A 51961 51961 51962 51962 51967 51967 52225A 52230A 52236 52240 9010910060 9010910060 9011906162 9011906162 9011906162 9011912097 9011912097 9015960175 9015960175 9015960175 9018306002 9018906006 9018906006 9046706018 9046706018 9161961255 9161961255 9162161020 9162161020 9165561020
Part # Description Qty Price
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12020

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-20010

AE8#,CE80,EE80

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

AE8#,CE80,EE80

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20080

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20010

AE8#,CE80,EE80..MTM

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-12070

AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AE8#,CE80,EE80

 1
51961 - HOOK, NO.1
51963-12110

AE8#,CE80

 2
51963-20060

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 2
51961 - HOOK, NO.1
51963-12110

AE8#,CE80

 2
51963-20060

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 2
51967 - HOOK, TRANSPORT, REAR
51095-12010

AE8#,CE80..4D,5D3

 2
51967 - HOOK, TRANSPORT, REAR
51095-12010

AE8#,CE80..4D,5D3

 2
52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
52225-20010

AE8#,CE80,EE80

 1
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-20010

AE8#,CE80,EE80

 1
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-20010

AE8#,CE80,EE80

 2
52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
52240-20010

AE8#,CE80,EE80

 2
Common parts
90109-10060
90119-06162
90119-12097
90159-60175
90183-06002
90189-06006
90467-06018
91619-61255
91621-61020
91655-61020
