AE80-EEHNS (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 2ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

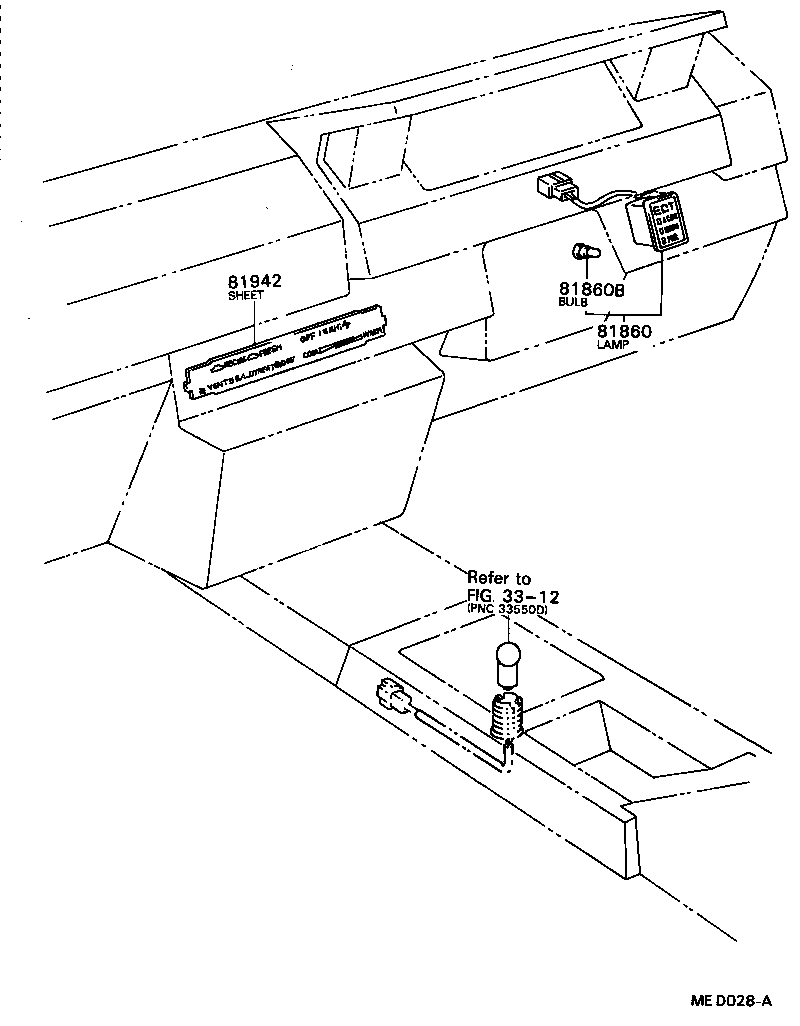

diagram 3312 81860 81860B 81942
Part # Description Qty Price
81942 - SHEET, HEATER CONTROL NAME
81942-12070

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
81942-12071

AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX

 1
Linked diagrams
3312
