AE80-EEHNS (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 2ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

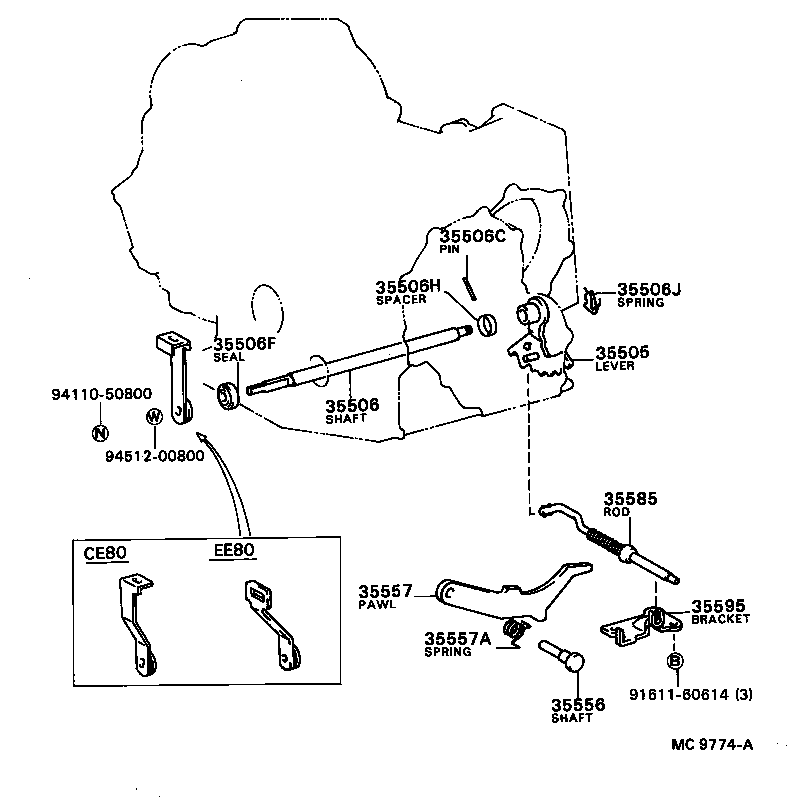

ILLUST NO. 1 OF 2(8305- )3FC

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35506J 35556 35557 35557A 35585 35595 9161160614 9411050800 9451200800
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-32011

AE80,81,CE80,EE80..3FC

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-32010

AE80,81,CE80,EE80..3FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

AE8#,CE80,EE80..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

AE8#,CE80,EE80..ATM

 1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006

AE8#,CE80,EE80..ATM

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09001

AE80,81,CE80,EE80..3FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-32010

AE80,81,CE80,EE80..3FC

 1
35557 - PAWL, PARKING LOCK
35557-32010

AE80,CE80..3FC;AE81..3FC..(GL,SE,SX,ZX)

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-26047

AE80,81,CE80,EE80..3FC

 1
35585 - ROD, PARKING LOCK
35501-32010

AE80,81,CE80,EE80..3FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-32010

AE80,81,CE80,EE80..3FC

 1
Common parts
91611-60614
94110-50800
94512-00800

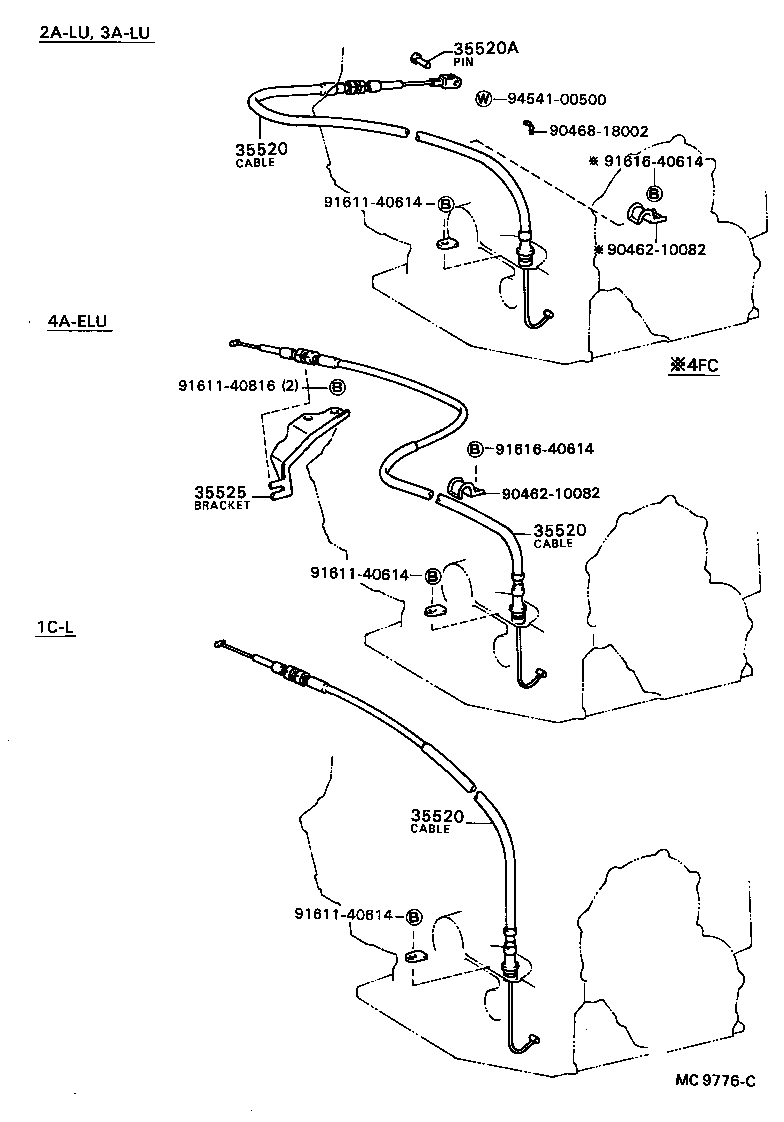

ILLUST NO. 2 OF 2(8305- )AE80,81,CE80..ATM ; (8305- )AE82..4FC..FXR,SR,SX,ZX

Click highlighted areas on diagram

diagram 35520 35520 35520 35520A 35525 9046210082 9046210082 9046818002 9161140614 9161140614 9161140614 9161140816 9161640614 9161640614 9454100500
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-12110

AE80,81..3FC

 1
35520 - CABLE ASSY, THROTTLE
35520-12110

AE80,81..3FC

 1
35520 - CABLE ASSY, THROTTLE
35520-12110

AE80,81..3FC

 1
35520A - PIN, THROTTLE CABLE
90240-05139

AE80,81..ATM

 1
Common parts
90462-10082
90468-18002
91611-40614
91611-40816
91616-40614
94541-00500
