AE80-EEHNS (1983)
Toyota Corolla
Production
May 1983
-
May 1985
Engine
2ALU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )3FC ; (8305- )AE82..4FC

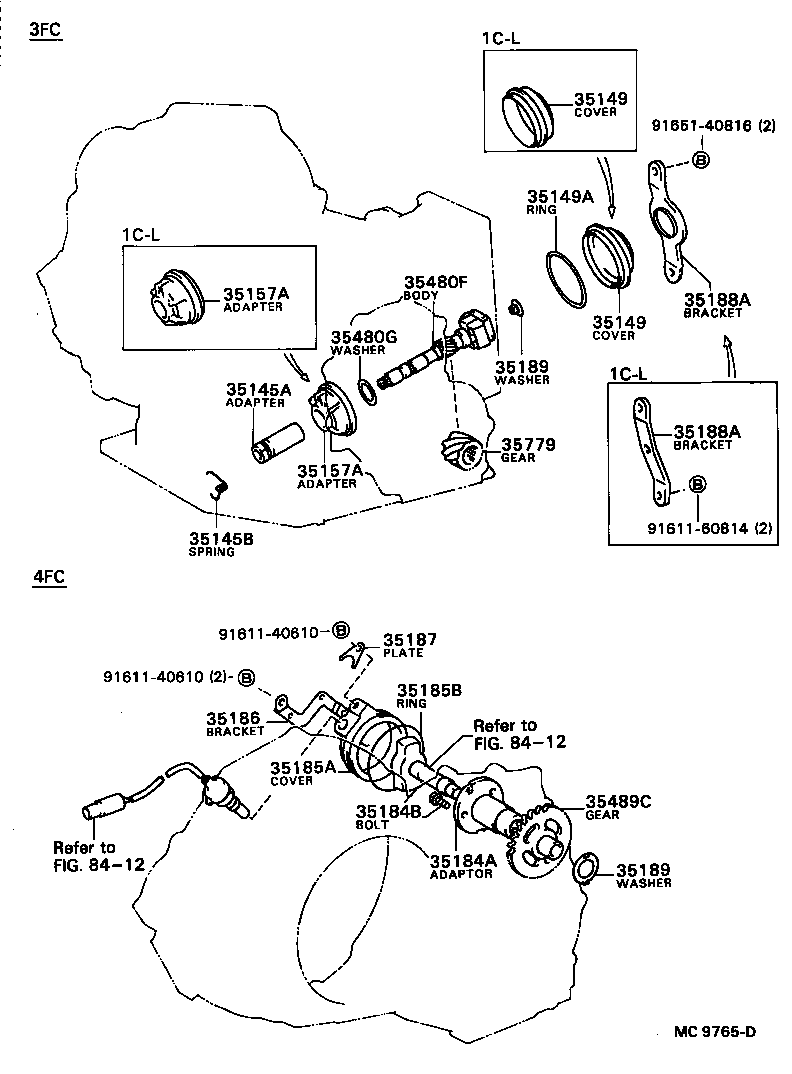

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35145A - ADAPTER, GOVERNOR PRESSURE | ||||
| 35145-32010 |
AE80,CE80..3FC;AE81..3FC..(FXL,GL,SE,SX,ZX) |
1 | ||
| 35145B - SPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER) | ||||
| 90508-18034 |
AE80,81,CE80,EE80..3FC |
1 | ||
| 35149 - COVER, GOVERNOR | ||||
| 35149-12010 |
AE80,81,EE80..3FC |
1 | ||
| 35149 - COVER, GOVERNOR | ||||
| 35149-12010 |
AE80,81,EE80..3FC |
1 | ||
| 35149A - RING, O (FOR GOVERNOR COVER) | ||||
| 90301-73001 |
AE80,81,EE80..3FC |
1 | ||
| 35157A - ADAPTER, GOVERNOR BODY | ||||
| 35157-12010 |
AE80,81,EE80..3FC |
1 | ||
| 35157A - ADAPTER, GOVERNOR BODY | ||||
| 35157-12010 |
AE80,81,EE80..3FC |
1 | ||
| 35188A - BRACKET, GOVERNOR COVER | ||||
| 35188-12010 |
AE80,81,EE80..3FC |
1 | ||
| 35188A - BRACKET, GOVERNOR COVER | ||||
| 35188-12010 |
AE80,81,EE80..3FC |
1 | ||
| 35189 - WASHER, GOVERNOR THRUST, NO.1 | ||||
| 35189-32010 |
AE80,81,CE80,EE80..ATM |
1 | ||
| 35189 - WASHER, GOVERNOR THRUST, NO.1 | ||||
| 35189-32010 |
AE80,81,CE80,EE80..ATM |
1 | ||
| 35480F - BODY ASSY, GOVERNOR | ||||
| 35480-32010 |
AE80..3FC;AE81..3FC..(FXL,GL,SE,SX,ZX) |
1 | ||
| 35480G - WASHER, PLATE (FOR GOVERNOR BODY) | ||||
| 90201-25003 |
AE80..3FC;AE81..3FC..(GL,SE,SX,ZX) |
1 | ||
| 35779 - GEAR, GOVERNOR DRIVE | ||||
| 35779-32010 |
AE80,81,CE80,EE80..3FC |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 91611-60814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8412 | ||||
