AE80-EEHDS (1983)
Toyota Corolla
(8305- )

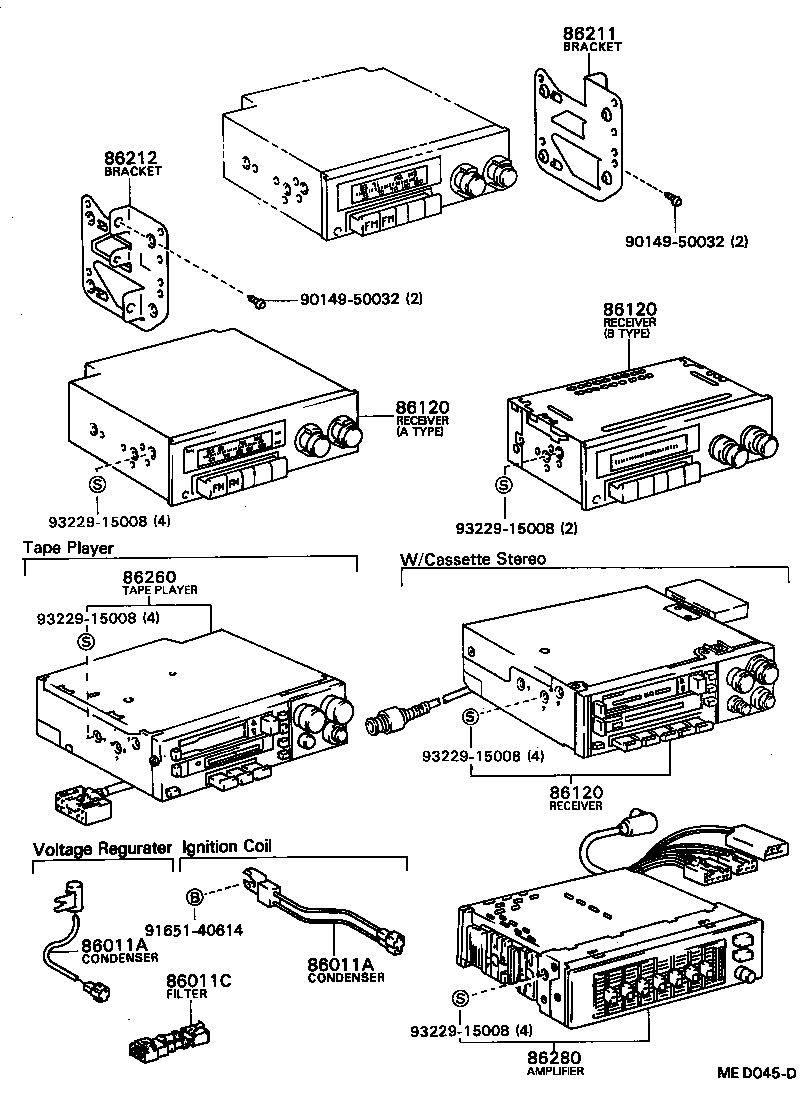

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX IGNITION COIL |
1 | ||
| 90980-04043 |
AE80,81,CE80,EE80 VOLTAGE REGULATOR |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX IGNITION COIL |
1 | ||
| 90980-04043 |
AE80,81,CE80,EE80 VOLTAGE REGULATOR |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05049 |
AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX W/AM/FM MULTIPLEX |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-19015 |
AE81..4F..DX;AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX AM/FM MULTIPLEX,A TYPE |
1 | ||
| 86120-19015 |
AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX AM/FM MULTIPLEX,A TYPE |
1 | ||
| 86120-14420 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX AM,A TYPE |
1 | ||
| 86120-14421 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX AM,B TYPE |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-19015 |
AE81..4F..DX;AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX AM/FM MULTIPLEX,A TYPE |
1 | ||
| 86120-19015 |
AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX AM/FM MULTIPLEX,A TYPE |
1 | ||
| 86120-14420 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX AM,A TYPE |
1 | ||
| 86120-14421 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX AM,B TYPE |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-19015 |
AE81..4F..DX;AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX AM/FM MULTIPLEX,A TYPE |
1 | ||
| 86120-19015 |
AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX AM/FM MULTIPLEX,A TYPE |
1 | ||
| 86120-14420 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX AM,A TYPE |
1 | ||
| 86120-14421 |
AE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX AM,B TYPE |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12140 |
AE8#,CE80,EE80 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12120 |
AE8#,CE80,EE80 |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-19015 |
AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX |
1 | ||
| 86260-19085 |
AE81..GL,SE,SX,ZX;AE80,82,CE80..DX,GL,SE,SR,SX,ZX W/FM MULTIPLEX RADIO |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 91651-40614 | ||||
| 93229-15008 | ||||
