AE80-EEHDS (1983)
Toyota Corolla
Production
May 1983
-
May 1985
Engine
2ALU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )AE80,81,CE80,EE80

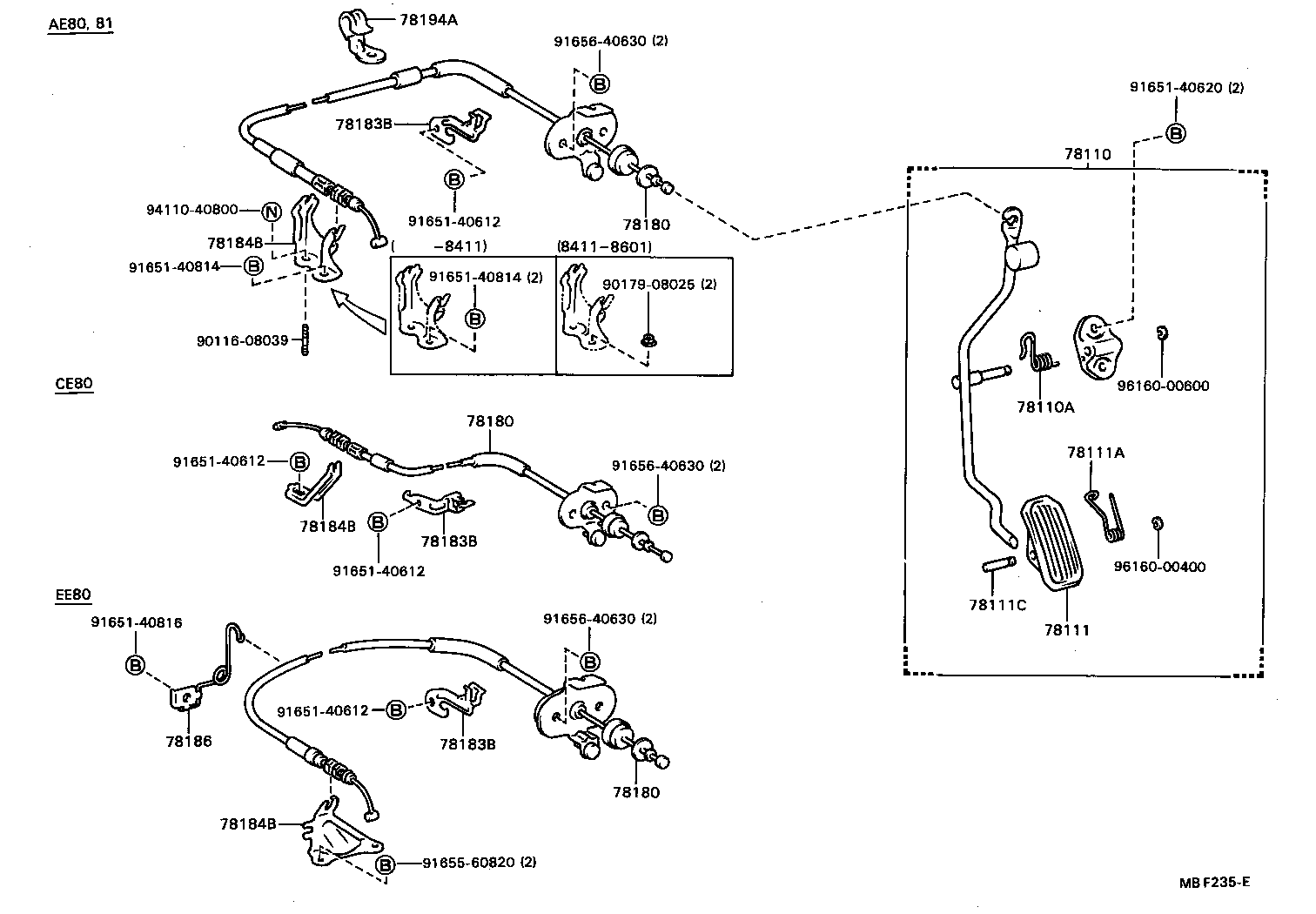

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12020 |
AE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE8#,CE80,EE80 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-20056 |
AE8#,CE80,EE80 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE8#,CE80,EE80 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12570 |
AE80,81 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12570 |
AE80,81 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12570 |
AE80,81 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12050 |
AE80,81,EE80 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12050 |
AE80,81,EE80 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12050 |
AE80,81,EE80 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12160 |
AE80,81 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12160 |
AE80,81 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12160 |
AE80,81 |
1 | ||
| 78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4 | ||||
| 78194-12020 |
AE80,81 |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90179-08025 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91655-60820 | ||||
| 91656-40630 | ||||
| 94110-40800 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
