AE70-ESMSS (1981)

Toyota Corolla

Production Aug 1981 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)AE70,CE70,KE70,TE70,71

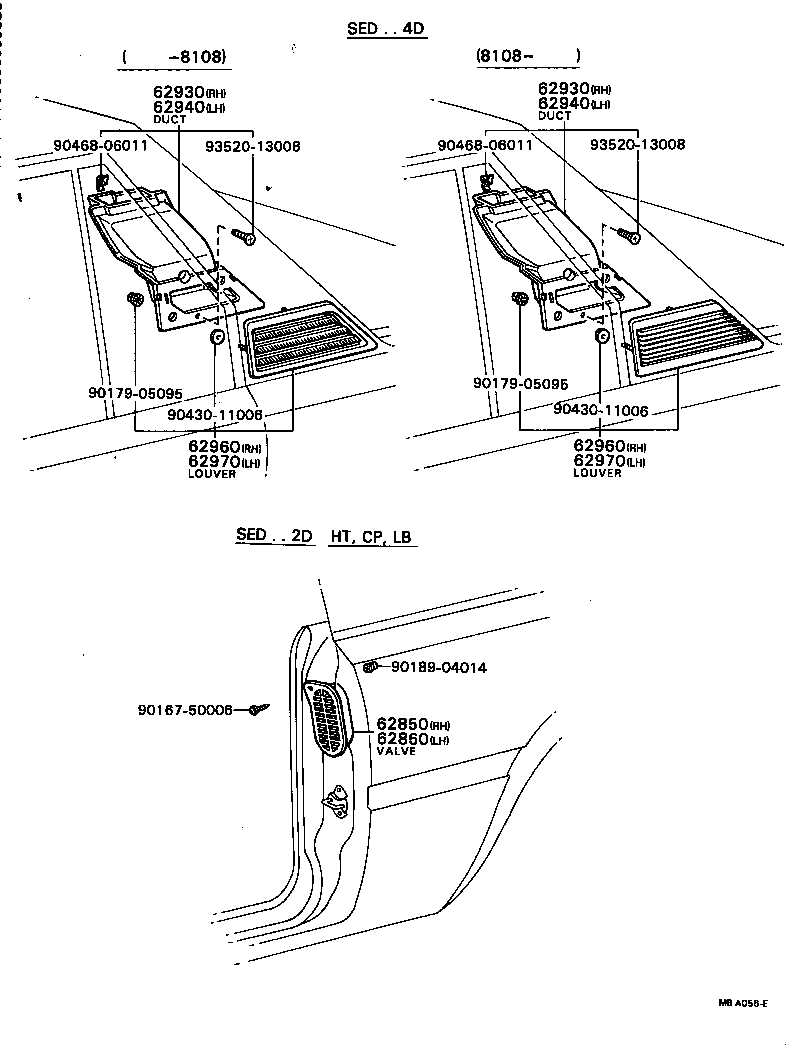

Click highlighted areas on diagram

diagram 62850 62860 62930 62930 62940 62940 62960 62960 62970 62970 9016750006 9017905095 9017905095 9018904014 9043011006 9043011006 9046806011 9046806011 9352013008 9352013008
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-12020

AE70,KE70,TE70,71..HT,LB

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-12020

AE70,KE70,TE70,71..HT,LB

 1
Common parts
90167-50006
90179-05095
90189-04014
90430-11006
90468-06011
93520-13008
