AE70-ESMNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)CP,HT,LB

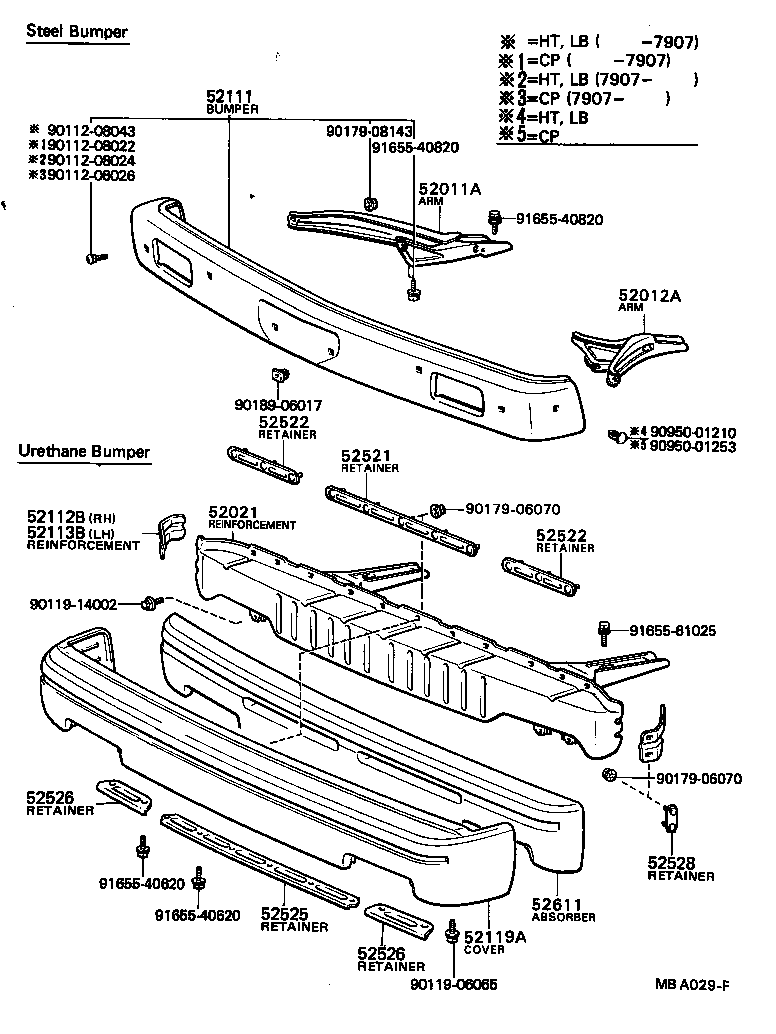

Click highlighted areas on diagram

diagram 52011A 52012A 52021 52111 52112B 52113B 52119A 52521 52522 52522 52525 52526 52526 52528 52611 9011208022 9011208024 9011208026 9011208043 9011906065 9011914002 9017906070 9017906070 9017908143 9018906017 9095001210 9095001253 9165540620 9165540620 9165540820 9165540820 9165561025
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12120

AE70,KE70..CP,HT,LB

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12120

AE70,KE70..CP,HT,LB

 1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12040

AE70,KE70,TE70,71..CP,HT,LB

 1
52111 - BUMPER ASSY, FRONT
52111-19485

AE70,KE70..HT,LB

 1
52112B - REINFORCEMENT, FRONT BUMPER SIDE BAR, RH
52137-12020

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

 1
52113B - REINFORCEMENT, FRONT BUMPER SIDE BAR, LH
52138-12020

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

 1
52119A - COVER, FRONT BUMPER
52119-12041

AE70,KE70,TE70,71..CP,HT,LB

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14020

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14010

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14010

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-12010

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12010

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12010

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-12010

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12040

AE70,KE70,TE70,71..CP,HT,LB

 1
Common parts
90112-08022
90112-08024
90112-08026
90112-08043
90119-06065
90119-14002
90179-06070
90179-08143
90189-06017
90950-01210
90950-01253
91655-40620
91655-40820
91655-61025
