AE70-ESMNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)3AU

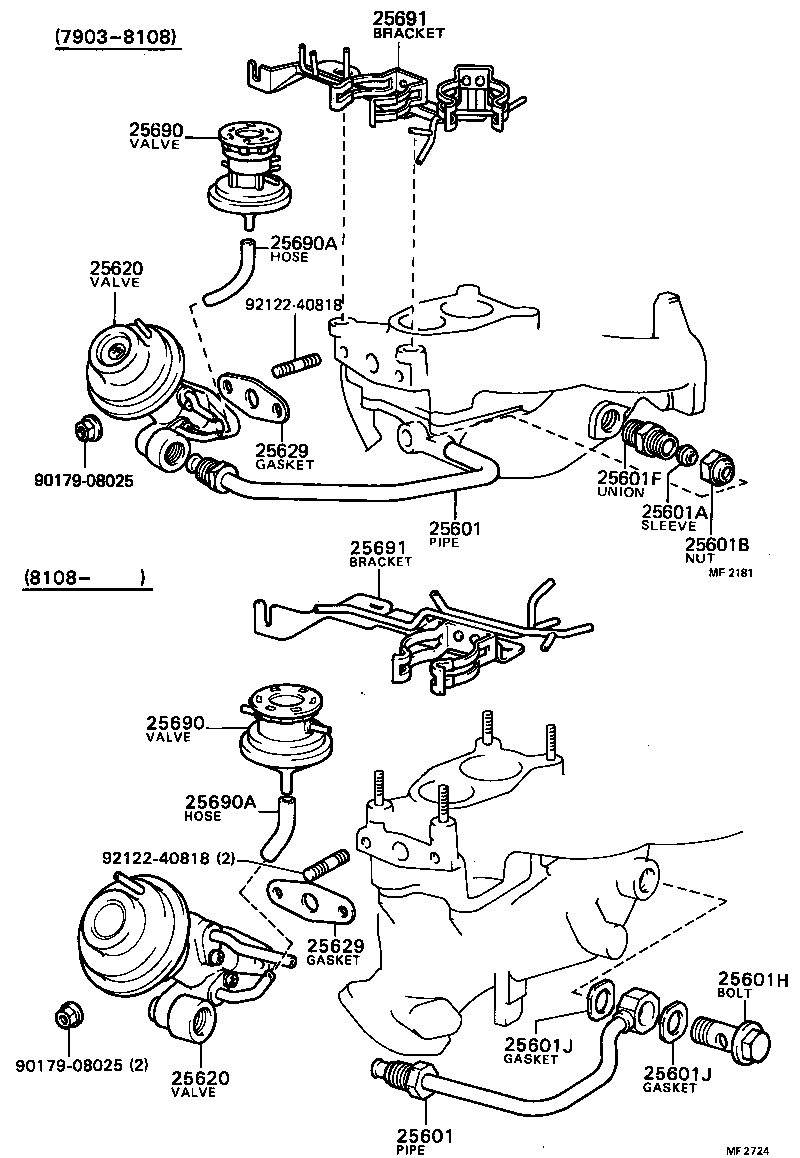

Click highlighted areas on diagram

MF2181,MF2724

diagram 25601 25601 25601A 25601B 25601F 25601H 25601J 25601J 25620 25620 25629 25629 25690 25690 25690A 25690A 25691 25691 9017908025 9017908025 9212240818 9212240818
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15010

3AU..AE70

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15010

3AU..AE70

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16001

3AU..AE70

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22008

3AU..AE70

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90404-22004

3AU..AE70

 1
25620 - VALVE ASSY, EGR
25620-15020

3AU..AE70..MTM

 1
25620 - VALVE ASSY, EGR
25620-15020

3AU..AE70..MTM

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-15010

3AU..AE70

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-15010

3AU..AE70

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-15020

3AU..AE70..MTM

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-15020

3AU..AE70..MTM

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11017

3AU..AE70

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11017

3AU..AE70

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-15020

3AU..AE70

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-15020

3AU..AE70

 1
Common parts
90179-08025
92122-40818
