AE70-ESKNS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(7903-8108)

Click highlighted areas on diagram

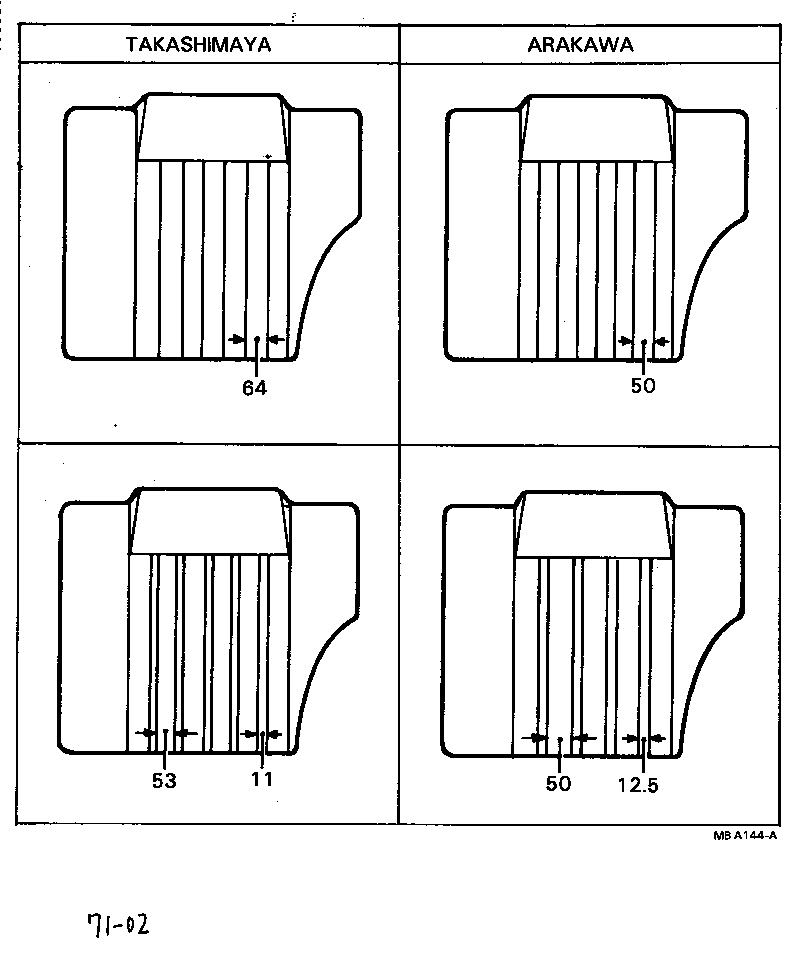

diagram 7102
Part # Description Qty Price
Linked diagrams
7102

ILLUST NO. 2 OF 3(7903-8108)HT,SED ; (8108-8304)AE70..SE..4D ; (8108-8304)KE70..HT..GL ; (8108-8304)

Click highlighted areas on diagram

diagram 71075B 71075B 71077B 71460B 71460B 71460T 71460T 71460U 71460U 71460V 71460V 71460V 71460W 71460W 71480B 71480C 71480D 71650 71650 71670 71812 71812 71812 72693 72693 9011906172
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1A19004

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19003

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71075-1A19006

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71075-1A19103

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71075-1A19106

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71075-1A19104

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19206

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71075-1A19204

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19203

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71075-1A76008

AE70,KE70..HT..GL

LIME,FB,IVORY,IVORY,TRIM3#

 1
71075-1A19306

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71075-1A19304

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19303

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1A19004

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19003

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71075-1A19006

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71075-1A19103

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71075-1A19106

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71075-1A19104

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19206

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71075-1A19204

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19203

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71075-1A76008

AE70,KE70..HT..GL

LIME,FB,IVORY,IVORY,TRIM3#

 1
71075-1A19306

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71075-1A19304

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71075-1A19303

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1A55003

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71077-1A55006

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71077-1A55004

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71077-1A55104

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71077-1A55103

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71077-1A55106

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71077-1A55204

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71077-1A55203

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71077-1A55206

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71077-1E19008

AE70,KE70..HT..GL

LIME,FB,IVORY,IVORY,TRIM3#

 1
71077-1A55303

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71077-1A55304

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71077-1A55306

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-1289004

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71560-1289003

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71560-1289006

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71560-1289103

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71560-1289106

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71560-1289104

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71560-1289203

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71560-1289206

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71560-1289204

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71460-1A62008

AE70,KE70..HT..GL

LIME,FB,IVORY,IVORY,TRIM3#

 1
71560-1289306

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71560-1289303

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71560-1289304

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-1289004

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71560-1289003

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71560-1289006

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71560-1289103

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71560-1289106

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71560-1289104

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71560-1289203

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71560-1289206

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71560-1289204

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71460-1A62008

AE70,KE70..HT..GL

LIME,FB,IVORY,IVORY,TRIM3#

 1
71560-1289306

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71560-1289303

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71560-1289304

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71611-12310

AE70,KE70..HT..(GL,SX)

 1
71611-12310

AE70,KE70,TE70,71..HT

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71611-12310

AE70,KE70..HT..(GL,SX)

 1
71611-12310

AE70,KE70,TE70,71..HT

 1
71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3
71621-12240

AE70,KE70,TE70,71..HT,LB,SED

 2
71621-12240

AE70,KE70,TE71..HT,LB

 2
71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3
71621-12240

AE70,KE70,TE70,71..HT,LB,SED

 2
71621-12240

AE70,KE70,TE71..HT,LB

 2
71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3
71621-12240

AE70,KE70,TE70,71..HT,LB,SED

 2
71621-12240

AE70,KE70,TE71..HT,LB

 2
71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4
71622-12070

AE70,KE70,TE70,71..HT,LB

 1
71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4
71622-12070

AE70,KE70,TE70,71..HT,LB

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1A54004

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71480-1A54003

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71480-1A54006

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71480-1A54106

AE70,KE70..HT..GL

FB,L-BROWN & D-BROWN,BROWN,TRIM4#

 1
71480-1A54103

AE70,KE70..HT..GL

FB,GRAY & BLACK,GRAY,TRIM2#

 1
71480-1A54104

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71480-1A54204

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71480-1A54203

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM2#

 1
71480-1A54206

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71480-1A54304

AE70,KE70..HT..GL

FB,BLUE,BLUE,TRIM8#

 1
71480-1E21008

AE70,KE70..HT..GL

LIME,FB,IVORY,IVORY,TRIM3#

 1
71480-1A54306

AE70,KE70..HT..GL

FB,BROWN,BROWN,TRIM4#

 1
71480-1A54303

AE70,KE70..HT..GL

FB,GRAY,GRAY,TRIM3#

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71407-12150

AE70,KE70,TE70..HT..(DX,GL)

 1
71407-12151

AE70,KE70..HT..(GL,SX)

 1
71480D - PAD, REAR SEAT BACK, NO.2 (FOR BENCH TYPE)
71665-12040

AE70,KE70..HT..(GL,SX)

 2
71665-12040

AE70,KE70,TE70,71..HT..(GL,GT,SE)

 2
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-12190

AE70,KE70,TE70,71..HT,LB

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-12190

AE70,KE70,TE70,71..HT,LB

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-12170

AE70,KE70,TE70,71..HT..(GL,GT,SE)

 1
71670-12171

AE70,KE70..HT..(GL,SX)

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

AE70,CE7#,KE7#,TE7#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

AE70,CE7#,KE7#,TE7#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

AE70,CE7#,KE7#,TE7#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

AE70,KE70,TE70,71

 2
72693-12010

AE70,CE70,KE70,TE71

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

AE70,KE70,TE70,71

 2
72693-12010

AE70,CE70,KE70,TE71

 2
Common parts
90119-06172

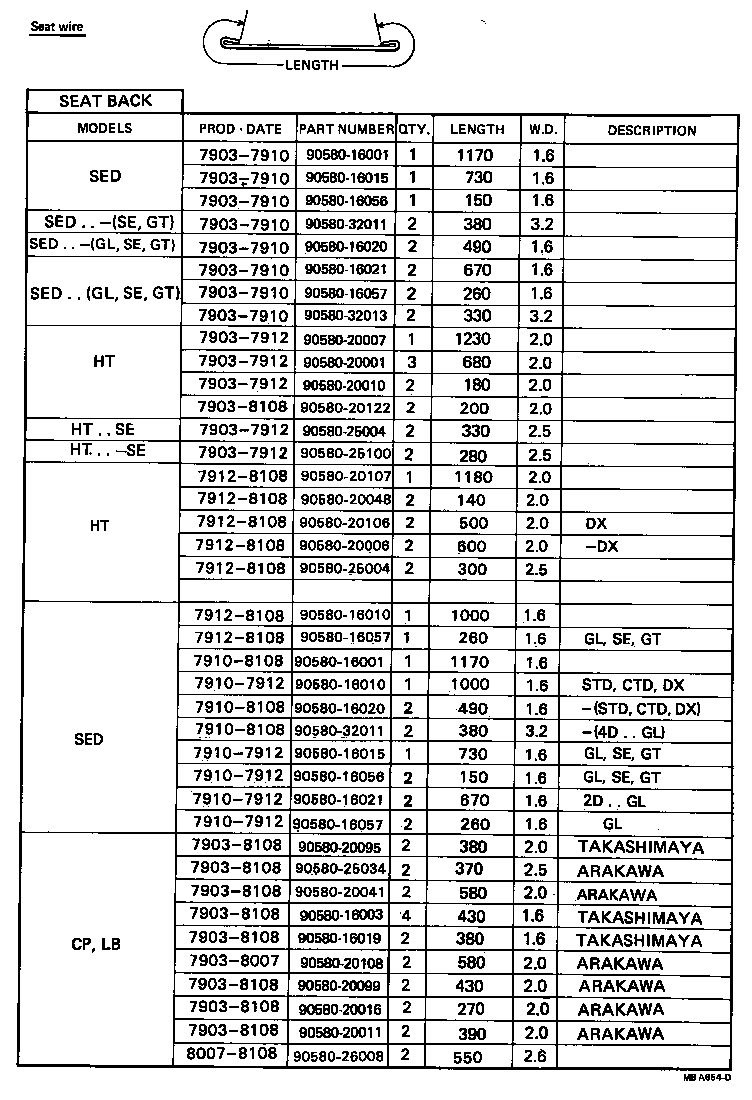

ILLUST NO. 3 OF 3(7903-8108)

Click highlighted areas on diagram

diagram 9058016001 9058016001 9058016003 9058016010 9058016010 9058016015 9058016015 9058016019 9058016020 9058016020 9058016021 9058016021 9058016056 9058016056 9058016057 9058016057 9058016057 9058020001 9058020006 9058020007 9058020010 9058020011 9058020016 9058020041 9058020048 9058020095 9058020099 9058020106 9058020107 9058020108 9058020122 9058025004 9058025004 9058025034 9058025100 9058026008 9058032011 9058032011 9058032013
Part # Description Qty Price
Common parts
90580-16001
90580-16003
90580-16010
90580-16015
90580-16019
90580-16020
90580-16021
90580-16056
90580-16057
90580-20001
90580-20006
90580-20007
90580-20010
90580-20011
90580-20016
90580-20041
90580-20048
90580-20095
90580-20099
90580-20106
90580-20107
90580-20108
90580-20122
90580-25004
90580-25034
90580-25100
90580-26008
90580-32011
90580-32013

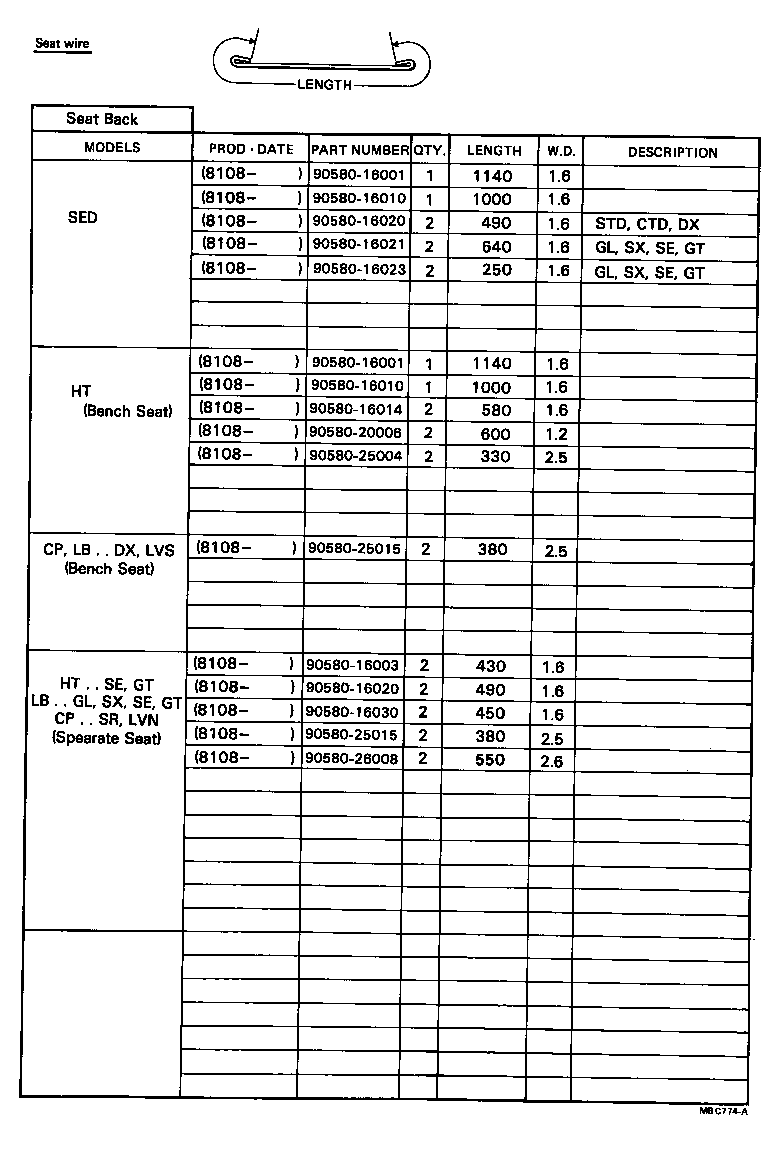

ILLUST NO. 3 OF 3(8108-8304)

Click highlighted areas on diagram

diagram 9058016001 9058016001 9058016003 9058016010 9058016010 9058016014 9058016020 9058016020 9058016021 9058016023 9058016030 9058020006 9058025004 9058025015 9058025015 9058026008
Part # Description Qty Price
Common parts
90580-16001
90580-16003
90580-16010
90580-16014
90580-16020
90580-16021
90580-16023
90580-16030
90580-20006
90580-25004
90580-25015
90580-26008

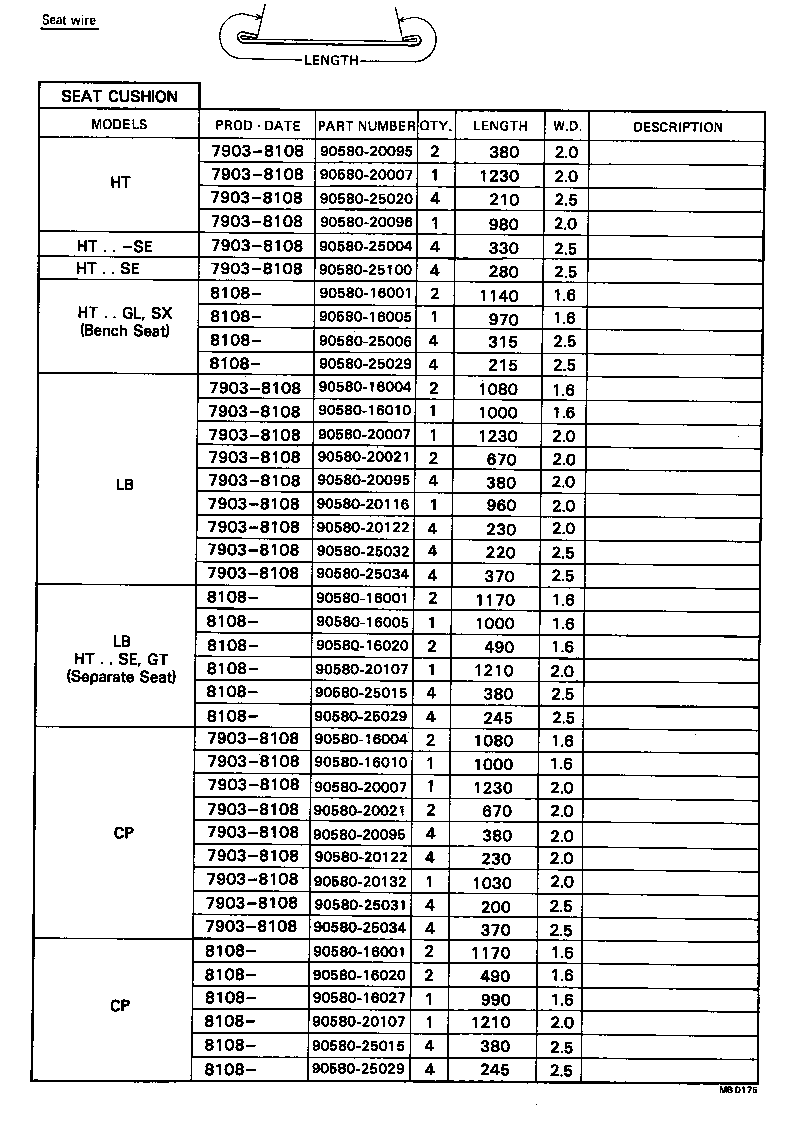

ILLUST NO. 3 OF 3(7903-8304)CP,HT,LB

Click highlighted areas on diagram

diagram 9058016001 9058016001 9058016001 9058016004 9058016004 9058016005 9058016005 9058016010 9058016010 9058016020 9058016020 9058016027 9058020007 9058020007 9058020007 9058020021 9058020021 9058020095 9058020095 9058020095 9058020096 9058020107 9058020107 9058020116 9058020122 9058020122 9058020132 9058025004 9058025006 9058025015 9058025015 9058025020 9058025029 9058025029 9058025029 9058025031 9058025032 9058025034 9058025034 9058025100
Part # Description Qty Price
Common parts
90580-16001
90580-16004
90580-16005
90580-16010
90580-16020
90580-16027
90580-20007
90580-20021
90580-20095
90580-20096
90580-20107
90580-20116
90580-20122
90580-20132
90580-25004
90580-25006
90580-25015
90580-25020
90580-25029
90580-25031
90580-25032
90580-25034
90580-25100
