AE70-ESHES (1979)

Toyota Corolla

Production Oct 1979 - Apr 1983
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8101-8108)3FC ; (8108- )ATM

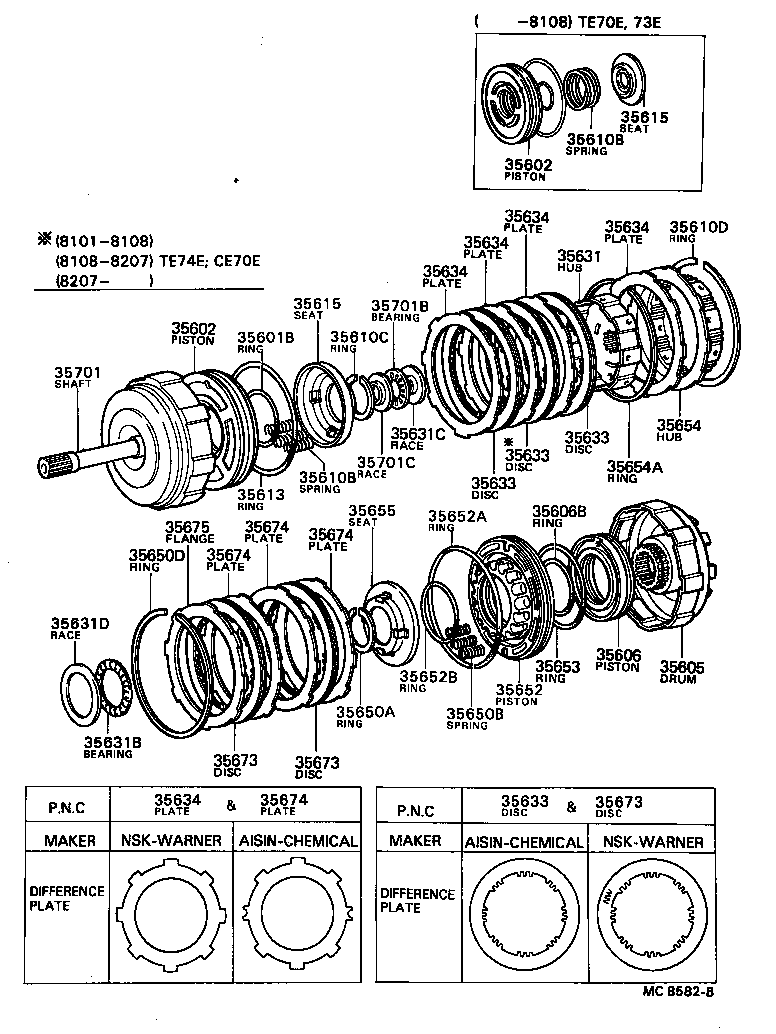

Click highlighted areas on diagram

diagram 35601B 35602 35602 35605 35606 35606B 35610B 35610B 35610C 35610D 35613 35615 35615 35631 35631B 35631C 35631D 35633 35633 35633 35633 35634 35634 35634 35634 35634 35650A 35650B 35650D 35652 35652A 35652B 35653 35654 35654A 35655 35673 35673 35673 35674 35674 35674 35674 35675 35701 35701B 35701C
Part # Description Qty Price
35602 - PISTON SUB-ASSY, FRONT CLUTCH
35602-12040

AE70,KE70..3FC

 1
35602-12030

AE70..3FC

 1
35602 - PISTON SUB-ASSY, FRONT CLUTCH
35602-12040

AE70,KE70..3FC

 1
35602-12030

AE70..3FC

 1
35610B - SPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
90501-10671

AE70..3FC

 18
35610B - SPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
90501-10671

AE70..3FC

 18
35615 - SEAT, CLUTCH PISTON RETURN SPRING
35615-30020

AE70..3FC

 1
35615 - SEAT, CLUTCH PISTON RETURN SPRING
35615-30020

AE70..3FC

 1
35650B - SPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
90501-10671

AE70,TE70,73..3FC

 18
35652 - PISTON, REAR CLUTCH, NO.2
35602-12030

AE70,TE70,73..3FC

 1
35655 - SEAT, REAR CLUTCH PISTON RETURN SPRING
35615-30020

AE70,TE70,73..3FC

 1
35701 - SHAFT SUB-ASSY, INPUT
35701-12010

AE70..3FC

 1
