AE70-ELMNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

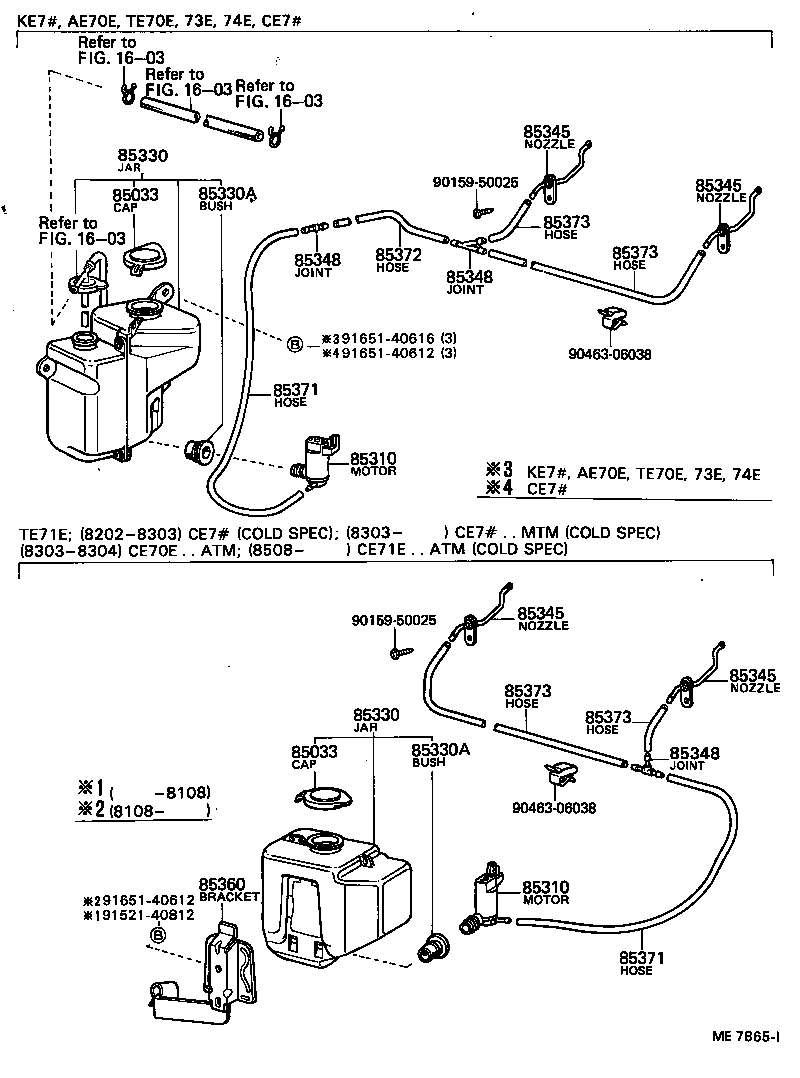

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 85033 85033 85310 85310 85330 85330 85330A 85330A 85345 85345 85345 85345 85348 85348 85348 85360 85371 85371 85372 85373 85373 85373 85373 9015950025 9015950025 9046306038 9046306038 9152140812 9165140612 9165140612 9165140616
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

AE70,CE7#,KE7#,TE7#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

AE70,CE7#,KE7#,TE7#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

AE70,KE7#,TE7#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

AE70,KE7#,TE7#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12090

AE70,KE7#,TE70,73

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12090

AE70,KE7#,TE70,73

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE70,CE7#,KE7#,TE7#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE70,CE7#,KE7#,TE7#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE70,CE7#,KE7#,TE7#

RH

 1
85341-12150

AE70,CE7#,KE7#,TE7#

LH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE70,CE7#,KE7#,TE7#

RH

 1
85341-12150

AE70,CE7#,KE7#,TE7#

LH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE70,CE7#,KE7#,TE7#

RH

 1
85341-12150

AE70,CE7#,KE7#,TE7#

LH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE70,CE7#,KE7#,TE7#

RH

 1
85341-12150

AE70,CE7#,KE7#,TE7#

LH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

AE70,CE7#,KE7#,TE70,73,74

2 WAY TYPE

 1
85355-14010

AE70,CE7#,KE7#,TE70,73,74

3 WAY TYPE

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

AE70,CE7#,KE7#,TE70,73,74

2 WAY TYPE

 1
85355-14010

AE70,CE7#,KE7#,TE70,73,74

3 WAY TYPE

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

AE70,CE7#,KE7#,TE70,73,74

2 WAY TYPE

 1
85355-14010

AE70,CE7#,KE7#,TE70,73,74

3 WAY TYPE

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06341

AE70,KE7#,TE70,73

*H,L=280

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06341

AE70,KE7#,TE70,73

*H,L=280

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06006

AE70,CE7#,KE7#,TE70,73,74

*H,L=1300

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE70,CE7#,KE7#,TE70,73,74

*H,L=60

 1
90446-06013

AE70,CE7#,KE7#,TE7#

*H,L=700

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE70,CE7#,KE7#,TE70,73,74

*H,L=60

 1
90446-06013

AE70,CE7#,KE7#,TE7#

*H,L=700

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE70,CE7#,KE7#,TE70,73,74

*H,L=60

 1
90446-06013

AE70,CE7#,KE7#,TE7#

*H,L=700

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE70,CE7#,KE7#,TE70,73,74

*H,L=60

 1
90446-06013

AE70,CE7#,KE7#,TE7#

*H,L=700

 1
Common parts
90159-50025
90463-06038
91521-40812
91651-40612
91651-40616
Linked diagrams
1603
