AE70-ELKNS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

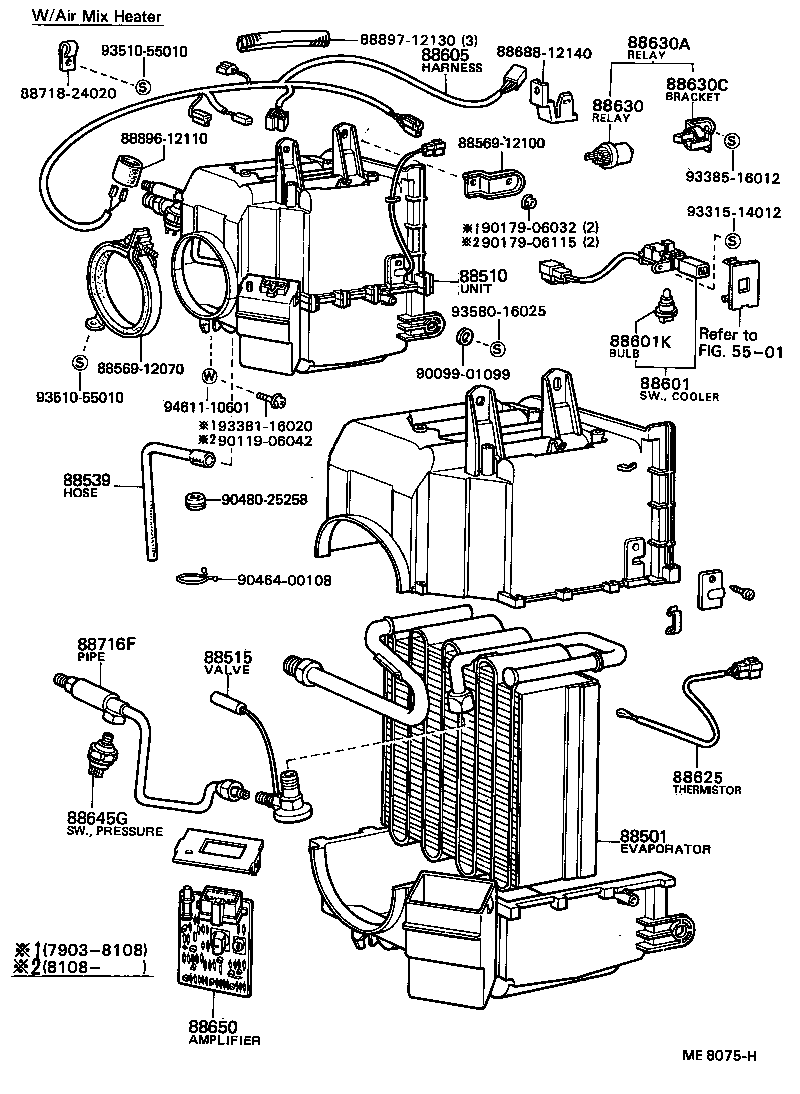

Click highlighted areas on diagram

diagram 5501 88501 88510 88515 88539 8856912070 8856912100 88601 88601K 88605 88625 88630 88630A 88630C 88645G 88650 8868812140 88716F 8871824020 8889612110 8889712130 9009901099 9011906042 9017906032 9017906115 9046400108 9048025258 9331514012 9338116020 9338516012 9351055010 9351055010 9358016025 9461110601
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12230

AE70,KE70,TE70,71

W/AIR MIX HEATER,OKINAWA SPEC

 1
88501-12150

AE70,KE7#,TE7#

W/AIR MIX HEATER

 1
88501-12280

AE70,TE71

*AAC

 1
88510 - UNIT ASSY, COOLER
88510-12190

AE70,TE70

 1
88510-12270

AE70,TE70

OKINAWA SPEC

 1
88510-12310

AE70,TE71

*AAC

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

AE70,CE7#,KE7#,TE7#

 1
88515-14040

AE70,TE71

*AAC

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12040

AE70,CE7#,KE7#,TE7#

 1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
84660-12010

AE70,CE7#,KE7#,TE7#

 1
88601K - BULB(FOR COOLER SWITCH)
88607-14020

AE70,CE7#,KE7#,TE7#

14V 1.4W,12V 1.4W

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12220

AE70,TE70

 1
88605-12270

AE70,TE71

*AAC

 1
88605-12230

AE70

COLD SPEC

 1
88650-16010

AE70

 1
88605-12221

AE70

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

AE70,KE7#,TE7#

 1
88630 - RELAY ASSY, COOLER
88925-12010

AE70,TE71

*AAC

 3
90987-02001

AE70

COLD SPEC

 1
88630C - BRACKET, COOLER RELAY
85999-26010

AE70

COLD SPEC

 1
88645G - SWITCH, PRESSURE
88645-30250

AE70,KE7#,TE7#

 1
88645-22010

AE70,KE70,TE71

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16010

AE70,TE70

 1
88650-16020

AE70,TE70

 1
88650-12070

AE70

*AAC(NO.2)

 1
88650-12080

AE70,TE71

*AAC(NO.1)

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12470

AE70,KE7#,TE7#

 1
Common parts
88569-12070
88569-12100
88688-12140
88718-24020
88896-12110
88897-12130
90099-01099
90119-06042
90179-06032
90179-06115
90464-00108
90480-25258
93315-14012
93381-16020
93385-16012
93510-55010
93580-16025
94611-10601
Linked diagrams
5501

(8108-8304)AE70,TE71

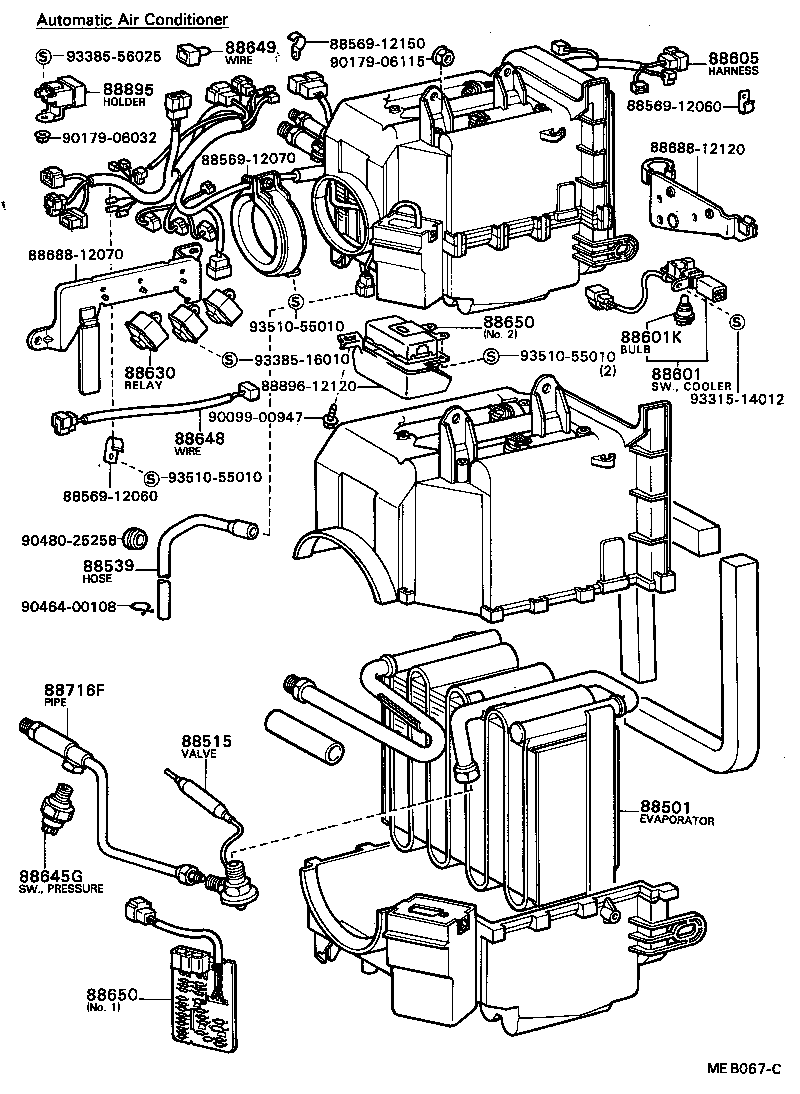

Click highlighted areas on diagram

diagram 88501 88515 88539 8856912060 8856912060 8856912070 8856912150 88601 88601K 88605 88630 88645G 88648 88649 88650 88650 8868812070 8868812120 88716F 88895 8889612120 9009900947 9017906032 9017906115 9046400108 9048025258 9331514012 9338516010 9338556025 9351055010 9351055010 9351055010
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12230

AE70,KE70,TE70,71

W/AIR MIX HEATER,OKINAWA SPEC

 1
88501-12150

AE70,KE7#,TE7#

W/AIR MIX HEATER

 1
88501-12280

AE70,TE71

*AAC

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

AE70,CE7#,KE7#,TE7#

 1
88515-14040

AE70,TE71

*AAC

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12040

AE70,CE7#,KE7#,TE7#

 1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
84660-12010

AE70,CE7#,KE7#,TE7#

 1
88601K - BULB(FOR COOLER SWITCH)
88607-14020

AE70,CE7#,KE7#,TE7#

14V 1.4W,12V 1.4W

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12220

AE70,TE70

 1
88605-12270

AE70,TE71

*AAC

 1
88605-12230

AE70

COLD SPEC

 1
88650-16010

AE70

 1
88605-12221

AE70

 1
88630 - RELAY ASSY, COOLER
88925-12010

AE70,TE71

*AAC

 3
90987-02001

AE70

COLD SPEC

 1
88645G - SWITCH, PRESSURE
88645-30250

AE70,KE7#,TE7#

 1
88645-22010

AE70,KE70,TE71

 1
88648 - WIRING, COOLER, NO.1
88648-12190

AE70,TE71

*AAC

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16010

AE70,TE70

 1
88650-16020

AE70,TE70

 1
88650-12070

AE70

*AAC(NO.2)

 1
88650-12080

AE70,TE71

*AAC(NO.1)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16010

AE70,TE70

 1
88650-16020

AE70,TE70

 1
88650-12070

AE70

*AAC(NO.2)

 1
88650-12080

AE70,TE71

*AAC(NO.1)

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12470

AE70,KE7#,TE7#

 1
88895 - HOLDER, FUSE
88895-12060

AE70,TE71

*AAC

 1
Common parts
88569-12060
88569-12070
88569-12150
88688-12070
88688-12120
88896-12120
90099-00947
90179-06032
90179-06115
90464-00108
90480-25258
93315-14012
93385-16010
93385-56025
93510-55010
