AE70-ELKNS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

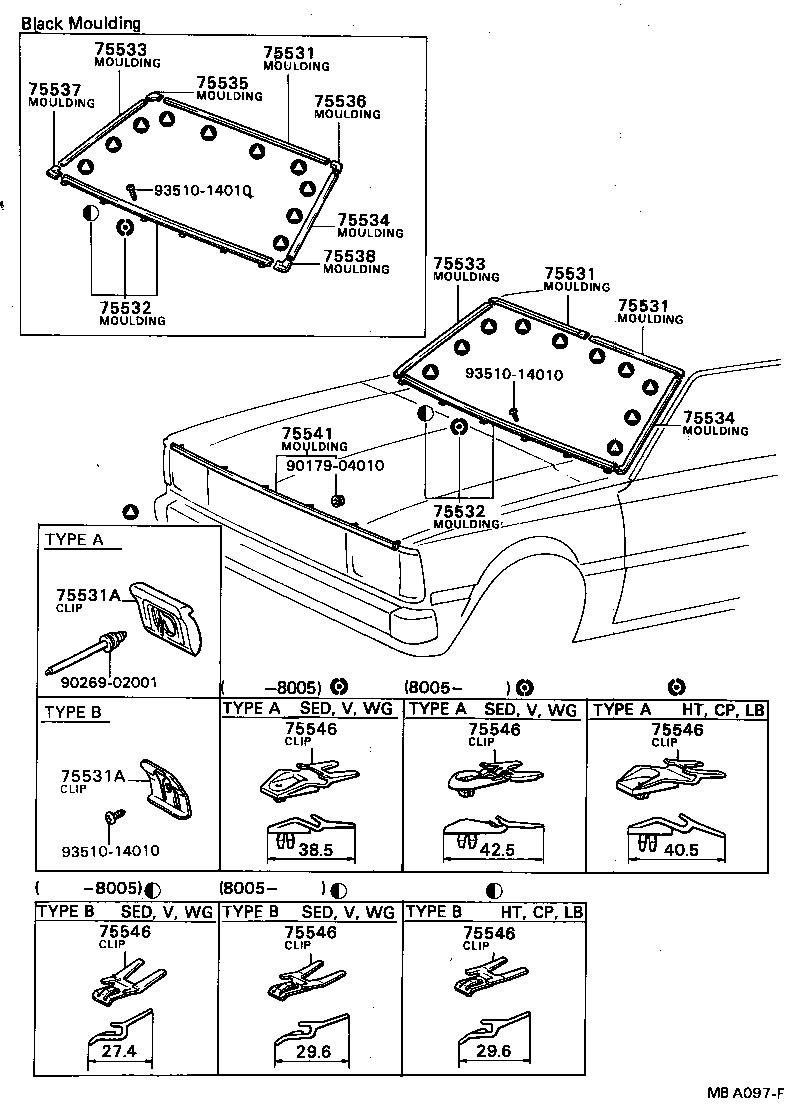

Click highlighted areas on diagram

diagram 75531 75531 75531 75531A 75531A 75532 75532 75533 75533 75534 75534 75535 75536 75537 75538 75541 75546 75546 75546 75546 75546 75546 9017904010 9026902001 9351014010 9351014010 9351014010
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12200

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

RH

 1
75532-12120

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

LH

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12200

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

RH

 1
75532-12120

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

LH

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12200

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

RH

 1
75532-12120

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

LH

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30040

AE70,CE7#,KE7#,TE7#

TYPE B

 14
75545-12030

AE70,KE7#,TE7#

TYPE A

 12
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30040

AE70,CE7#,KE7#,TE7#

TYPE B

 14
75545-12030

AE70,KE7#,TE7#

TYPE A

 12
75532 - MOULDING, WINDSHIELD, LOWER
75504-12020

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-12020

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12210

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12210

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12140

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12140

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

 1
75541 - MOULDING, HOOD, FRONT
75770-19125

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SE,SL)

 1
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-12050

AE70,KE70,TE70,71..CP,HT,LB

TYPE A

 6
75547-12020

AE70,KE70,TE70,71..CP,HT,LB

TYPE B

 5
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-12050

AE70,KE70,TE70,71..CP,HT,LB

TYPE A

 6
75547-12020

AE70,KE70,TE70,71..CP,HT,LB

TYPE B

 5
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-12050

AE70,KE70,TE70,71..CP,HT,LB

TYPE A

 6
75547-12020

AE70,KE70,TE70,71..CP,HT,LB

TYPE B

 5
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-12050

AE70,KE70,TE70,71..CP,HT,LB

TYPE A

 6
75547-12020

AE70,KE70,TE70,71..CP,HT,LB

TYPE B

 5
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-12050

AE70,KE70,TE70,71..CP,HT,LB

TYPE A

 6
75547-12020

AE70,KE70,TE70,71..CP,HT,LB

TYPE B

 5
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-12050

AE70,KE70,TE70,71..CP,HT,LB

TYPE A

 6
75547-12020

AE70,KE70,TE70,71..CP,HT,LB

TYPE B

 5
Common parts
90179-04010
90269-02001
93510-14010
