AE70-ELHNS (1979)

Toyota Corolla

Production Oct 1979 - Apr 1983
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8304)AE70..3FC

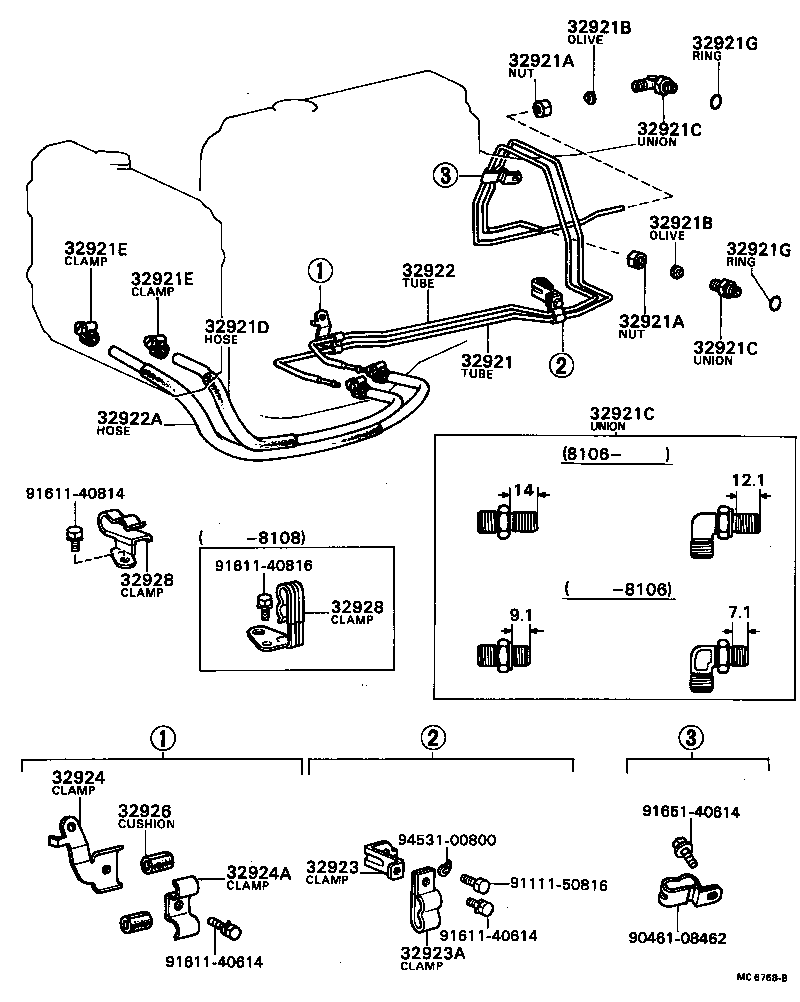

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921B 32921B 32921C 32921C 32921C 32921D 32921E 32921E 32921G 32921G 32922 32922A 32923 32923A 32924 32924A 32926 32928 32928 9046108462 9111150816 9161140614 9161140614 9161140814 9161140816 9165140614 9453100800
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12160

AE70..3FC

 1
32921-12080

AE70..3FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-12020

AE70..3FC

 1
32941-12060

AE70..3FC

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12070

AE70..3FC

 1
32922-12150

AE70..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-12030

AE70..3FC

 1
32942-12050

AE70..3FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-12031

AE70..3FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08070

AE70..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32928-12010

AE70..3FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AE70,CE70,71,KE70,74,TE70,73,74..ATM

長さ=25,ε†…εΎ„=8

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
90461-06141

AE70..3FC

 1
90949-01010

AE70..3FC

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
90461-06141

AE70..3FC

 1
90949-01010

AE70..3FC

 1
Common parts
90461-08462
91111-50816
91611-40614
91611-40814
91611-40816
91651-40614
94531-00800
