AE70-EEMSS (1981)

Toyota Corolla

Production Aug 1981 - Apr 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8508)MTM ; (8508- )KE7#..MTM

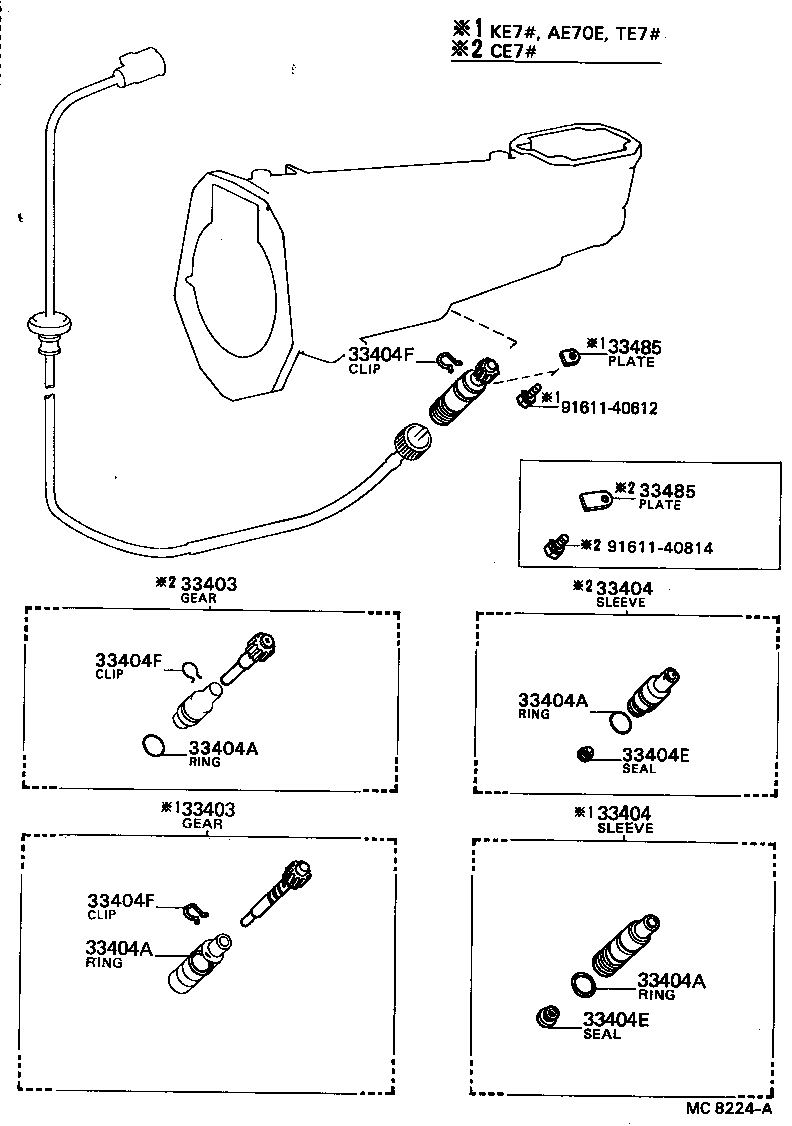

Click highlighted areas on diagram

diagram 33403 33403 33404 33404 33404A 33404A 33404A 33404A 33404E 33404E 33404F 33404F 33404F 33485 33485 9161140612 9161140814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19165

AE70,KE70..MTM

N=21,DIFF R=3.909

 1
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19165

AE70,KE70..MTM

N=21,DIFF R=3.909

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-16010

AE70,KE7#,TE7#..MTM

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-16010

AE70,KE7#,TE7#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96710-02018

AE70,KE7#,TE7#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96710-02018

AE70,KE7#,TE7#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96710-02018

AE70,KE7#,TE7#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96710-02018

AE70,KE7#,TE7#..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE70,CE7#,KE7#,TE7#..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE70,CE7#,KE7#,TE7#..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE70,CE7#,KE7#,TE7#..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE70,CE7#,KE7#,TE7#..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE70,CE7#,KE7#,TE7#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-16010

AE70,KE7#,TE7#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-16010

AE70,KE7#,TE7#..MTM

 1
Common parts
91611-40612
91611-40814
