AE70-EEMNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )4D

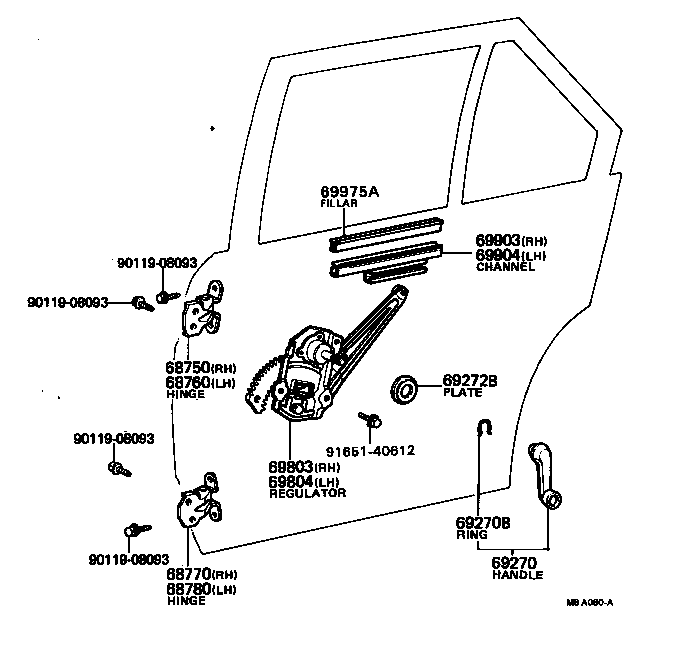

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69270 69270B 69272B 69803 69804 69903 69904 69975A 9011908093 9011908093 9011908093 9011908093 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-12030

AE70,CE7#,KE7#,TE7#..4D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-12030

AE70,CE7#,KE7#,TE7#..4D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12020

AE70,CE7#,KE7#,TE7#..4D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12010

AE70,CE7#,KE7#,TE7#..4D

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1201005

AE70,KE7#,TE70,73..(CTD,DX,GL)..4D

BEIGE,BEIGE,TRIM4#

 2
69260-2202005

AE70,TE70,71..(GT,SE)..4D

BEIGE,BEIGE,TRIM4#

 2
69260-1201004

AE70,KE70,TE70..(CTD,DX,GL)..4D

BLUE,BLUE,TRIM8#

 2
69260-2202001

AE70,TE70,71..(GT,SE)..4D

BLACK,BLACK,TRIM2#

 2
69260-2202004

AE70,TE70,71..(GT,SE)..4D

BLUE,BLUE,TRIM8#

 2
69260-1201011

AE70,KE7#,TE70,73..(CTD,DX,GL,STD)..4D

BLACK,BLACK,TRIM2#

 2
69260-2202026

AE70,TE70,71..(GT,SE)..4D

LIGHT BROWN,BROWN,TRIM4#

 2
69260-1201036

AE70,KE7#,TE70,73..(CTD,DX,GL)..4D

LIGHT BROWN,BROWN,TRIM4#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

AE70,KE7#,TE7#..4D

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-22010

AE70,KE7#,TE70,73..(CTD,DX,GL,STD)..4D

 2
69272-30010

AE70,TE70,71..(GT,SE)..4D

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-12080

AE70,CE7#,KE7#,TE7#..4D

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-12080

AE70,CE7#,KE7#,TE7#..4D

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-12050

AE70,KE7#,TE7#..4D

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-12040

AE70,KE7#,TE7#..4D

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-22020

AE70,CE7#,KE7#,TE7#..4D

 2
Common parts
90119-08093
91651-40612
