AE70-EEKNS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

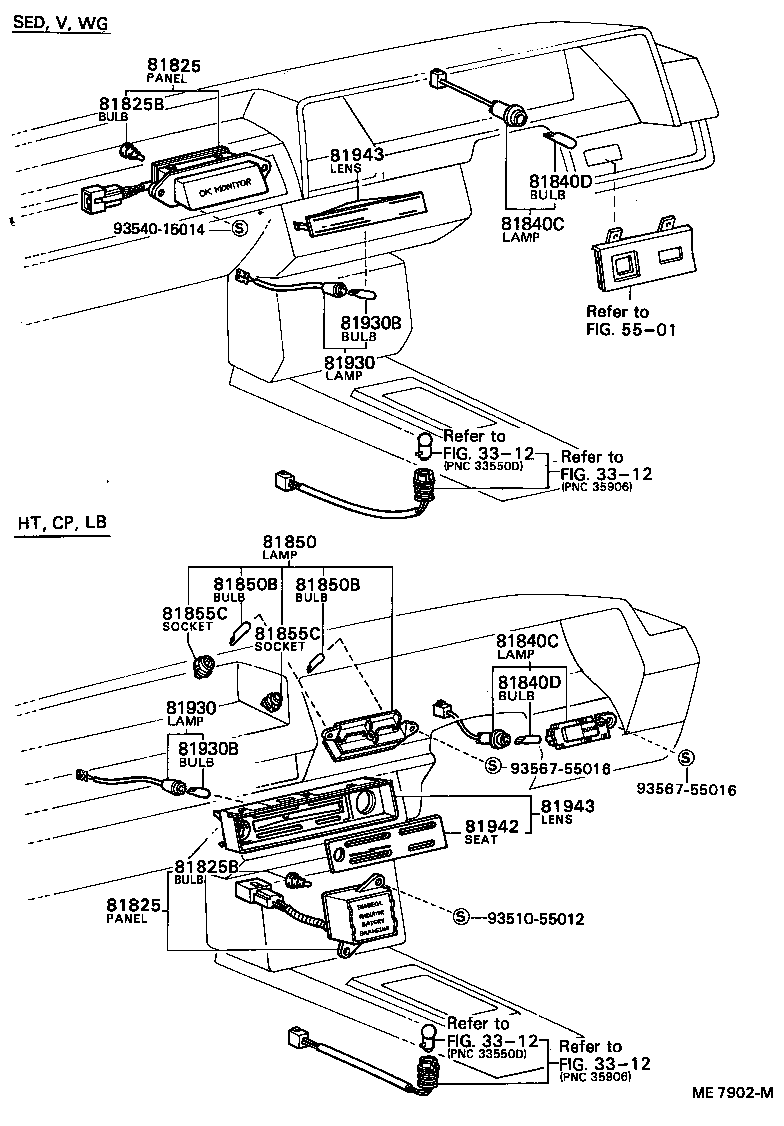

Click highlighted areas on diagram

diagram 3312 3312 3312 3312 5501 81825 81825 81825B 81825B 81840C 81840C 81840D 81840D 81850 81850B 81850B 81855C 81855C 81930 81930 81930B 81930B 81942 81943 81943 9351055012 9354015014 9356755016 9356755016
Part # Description Qty Price
81840C - LAMP ASSY, DOOR INDICATOR
81850-12050

AE70,KE70,TE70,71..SED..(GL,GT,SE)

 1
81840C - LAMP ASSY, DOOR INDICATOR
81850-12050

AE70,KE70,TE70,71..SED..(GL,GT,SE)

 1
81840D - BULB, DOOR INDICATOR LAMP
99132-12034

AE70,KE70,TE70,71..SED..(GL,GT,SE)

12V 3.4W

 1
81840D - BULB, DOOR INDICATOR LAMP
99132-12034

AE70,KE70,TE70,71..SED..(GL,GT,SE)

12V 3.4W

 1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81850-12041

AE70,KE7#,TE7#

 1
81850-12040

AE70,KE7#,TE7#

 1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81850-12041

AE70,KE7#,TE7#

 1
81850-12040

AE70,KE7#,TE7#

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018

AE70,KE70,71,TE70,71,73

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018

AE70,KE70,71,TE70,71,73

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 1
81943 - LENS, HEATER CONTROL INDICATOR
81943-12040

AE70,KE7#,TE7#..SED,V

W/AIR MIX HEATER

 1
81943-12041

AE70,KE7#,TE7#..SED,V

W/AIR MIX *HEA

 1
81943-12110

AE70,TE71..4D

W/AUTOMATIC AIR CONDITIONER

 1
81943 - LENS, HEATER CONTROL INDICATOR
81943-12040

AE70,KE7#,TE7#..SED,V

W/AIR MIX HEATER

 1
81943-12041

AE70,KE7#,TE7#..SED,V

W/AIR MIX *HEA

 1
81943-12110

AE70,TE71..4D

W/AUTOMATIC AIR CONDITIONER

 1
Common parts
93510-55012
93540-15014
93567-55016
Linked diagrams
3312
5501

(8202-8304)

Click highlighted areas on diagram

diagram 89539A 89642 89643 89644 89645 9017906097 9331515010
Part # Description Qty Price
Common parts
90179-06097
93315-15010
