AE70-ECMXS (1979)
Toyota Corolla
ILLUST NO. 1 OF 3(7903-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 7102 | ||||
ILLUST NO. 2 OF 3(7903-8108)HT,SED ; (8108-8304)AE70..SE..4D ; (8108-8304)KE70..HT..GL ; (8108-8304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A53001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A53006 |
AE70,TE71..LVN,SR FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A53004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A53104 |
AE70,KE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A53106 |
AE70,KE70,TE71..LVN,SR FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A53101 |
AE70,KE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A53001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A53006 |
AE70,TE71..LVN,SR FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A53004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A53104 |
AE70,KE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A53106 |
AE70,KE70,TE71..LVN,SR FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A53101 |
AE70,KE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A14001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A14006 |
AE70,TE71..LVN,SR FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A14004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A14104 |
AE70,KE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A14106 |
AE70,KE70,TE71..LVN,SR FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A14101 |
AE70,KE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A14001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A14006 |
AE70,TE71..LVN,SR FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A14004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A14104 |
AE70,KE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A14106 |
AE70,KE70,TE71..LVN,SR FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A14101 |
AE70,KE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12320 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12320 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE70,71 |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE70,71 |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| Common parts | ||||
| 90119-06172 | ||||

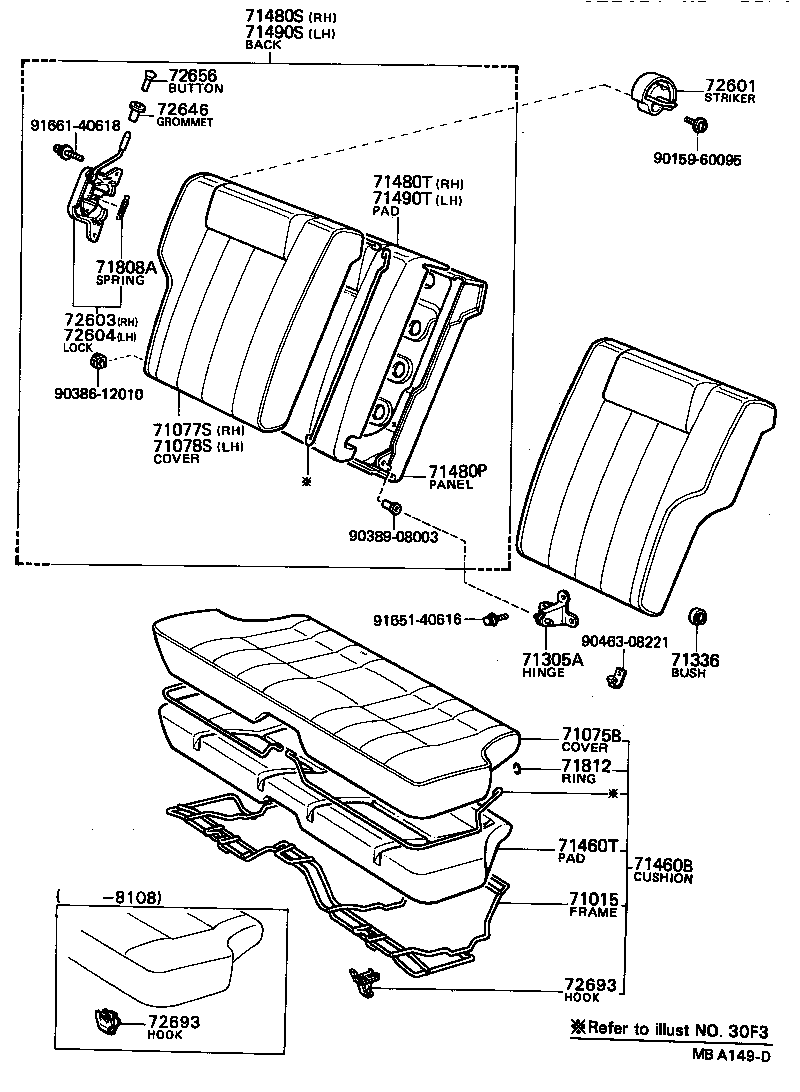

ILLUST NO. 2 OF 3(7903-8108)CP ; (8108-8304)LVN,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12220 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A53001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A53006 |
AE70,TE71..LVN,SR FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A53004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A53104 |
AE70,KE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A53106 |
AE70,KE70,TE71..LVN,SR FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A53101 |
AE70,KE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1A61001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1A61006 |
AE70,TE71..LVN,SR FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1A61004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1A61101 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1A61104 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1A61106 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1229006 |
AE70,TE71..LVN,SR FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1229004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1229001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1229106 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1229104 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1229101 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12020 |
AE70,KE70,TE70,71..CP,LB |
1 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-12010 |
AE70,KE70,TE70,71..CP,LB |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A14001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A14006 |
AE70,TE71..LVN,SR FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A14004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A14104 |
AE70,KE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A14106 |
AE70,KE70,TE71..LVN,SR FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A14101 |
AE70,KE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12320 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71480P - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-12040 |
AE70,KE70,TE70,71..CP,LB RH,SEPARATE SEAT |
1 | ||
| 71203-12020 |
AE70,KE70,TE70,71..CP,LB LH,SEPARATE SEAT |
1 | ||
| 71202-12040 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) RH,SEPARATE SEAT |
1 | ||
| 71203-12020 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) LH,SEPARATE SEAT |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1A64006 |
AE70,TE71..LVN,SR FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A64004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1A64001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1A64101 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1A64106 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A64104 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480T - PAD, REAR SEAT BACK, RH (FOR SEPARATE SEAT) | ||||
| 71651-12310 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) |
1 | ||
| 71651-12310 |
AE70,KE70,TE70,71..CP,LB |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1229006 |
AE70,TE71..LVN,SR FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1229004 |
AE70,TE71..LVN,SR FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1229001 |
AE70,TE71..LVN,SR FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1229101 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1229106 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1229104 |
AE70,KE70,TE71..(CP,LB)..(GT,LVN,SR) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490T - PAD, REAR SEAT BACK, LH (FOR SEPARATE SEAT) | ||||
| 71652-12180 |
AE70,KE70,TE70,71..CP,LB |
1 | ||
| 71652-12180 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) |
1 | ||
| 71808A - SPRING, REAR SEAT BACK STOPPER | ||||
| 90506-08003 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) |
2 | ||
| 90506-08003 |
AE70,KE70,TE70,71..CP,LB |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72602-12010 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,LVN,SL,SR) LH,SEPARATE SEAT |
1 | ||
| 72602-12010 |
AE70,KE70,TE71..(CP,LB)..(GL,LVN,SR,SX) LH,SEPARATE SEAT |
1 | ||
| 72601-12030 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,LVN,SL,SR) RH,SEPARATE SEAT |
1 | ||
| 72601-12030 |
AE70,KE70,TE71..(CP,LB)..(GL,LVN,SR,SX) RH,SEPARATE SEAT |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12040 |
AE70,KE70,TE70,71..CP,LB SEPARATE SEAT |
1 | ||
| 72630-12040 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) SEPARATE SEAT |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12040 |
AE70,KE70,TE70,71..CP,LB SEPARATE SEAT |
1 | ||
| 72640-12040 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) LH,SEPARATE SEAT |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002016 |
AE70,KE70,TE70,71..CP,LB D-BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002004 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002016 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) D-BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002001 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) BLACK,BLACK,TRIM2# |
2 | ||
| 72655-2002004 |
AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002001 |
AE70,KE70,TE70,71..CP,LB BLACK,BLACK,TRIM2# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001001 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) BLACK,BLACK,TRIM2# |
2 | ||
| 72656-2001016 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) D-BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001004 |
AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001016 |
AE70,KE70,TE70,71..CP,LB D-BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001001 |
AE70,KE70,TE70,71..CP,LB BLACK,BLACK,TRIM2# |
2 | ||
| 72656-2001004 |
AE70,KE70,TE71..(CP,LB)..(GL,GT,LVN,SE,SR,SX) BLUE,BLUE,TRIM8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE70,71 |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE70,71 |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| Common parts | ||||
| 90159-60095 | ||||
| 90386-12010 | ||||
| 90389-08003 | ||||
| 90463-08221 | ||||
| 91651-40616 | ||||
| 91661-40618 | ||||
ILLUST NO. 3 OF 3(7903-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16003 | ||||
| 90580-16010 | ||||
| 90580-16015 | ||||
| 90580-16019 | ||||
| 90580-16020 | ||||
| 90580-16021 | ||||
| 90580-16056 | ||||
| 90580-16057 | ||||
| 90580-20001 | ||||
| 90580-20006 | ||||
| 90580-20007 | ||||
| 90580-20010 | ||||
| 90580-20011 | ||||
| 90580-20016 | ||||
| 90580-20041 | ||||
| 90580-20048 | ||||
| 90580-20095 | ||||
| 90580-20099 | ||||
| 90580-20106 | ||||
| 90580-20107 | ||||
| 90580-20108 | ||||
| 90580-20122 | ||||
| 90580-25004 | ||||
| 90580-25034 | ||||
| 90580-25100 | ||||
| 90580-26008 | ||||
| 90580-32011 | ||||
| 90580-32013 | ||||
ILLUST NO. 3 OF 3(8108-8304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16003 | ||||
| 90580-16010 | ||||
| 90580-16014 | ||||
| 90580-16020 | ||||
| 90580-16021 | ||||
| 90580-16023 | ||||
| 90580-16030 | ||||
| 90580-20006 | ||||
| 90580-25004 | ||||
| 90580-25015 | ||||
| 90580-26008 | ||||
ILLUST NO. 3 OF 3(7903-8304)CP,HT,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16004 | ||||
| 90580-16005 | ||||
| 90580-16010 | ||||
| 90580-16020 | ||||
| 90580-16027 | ||||
| 90580-20007 | ||||
| 90580-20021 | ||||
| 90580-20095 | ||||
| 90580-20096 | ||||
| 90580-20107 | ||||
| 90580-20116 | ||||
| 90580-20122 | ||||
| 90580-20132 | ||||
| 90580-25004 | ||||
| 90580-25006 | ||||
| 90580-25015 | ||||
| 90580-25020 | ||||
| 90580-25029 | ||||
| 90580-25031 | ||||
| 90580-25032 | ||||
| 90580-25034 | ||||
| 90580-25100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
