AE70-ECMSS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)CP

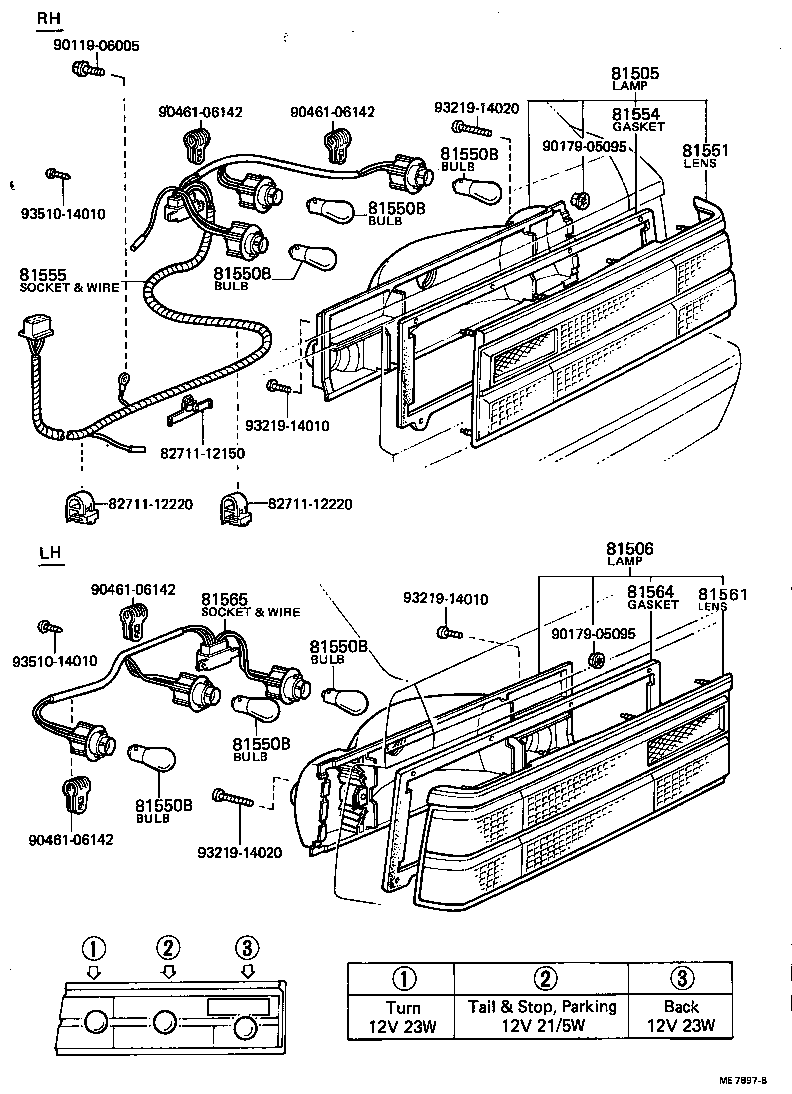

Click highlighted areas on diagram

diagram 81505 81506 81550B 81550B 81550B 81550B 81550B 81550B 81551 81554 81555 81561 81564 81565 8271112150 8271112220 8271112220 9011906005 9017905095 9017905095 9046106142 9046106142 9046106142 9046106142 9321914010 9321914010 9321914020 9321914020 9351014010 9351014010
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-19315

AE70,KE70,TE70,71..CP

 1
81506 - LAMP SUB-ASSY, REAR COMBINATION, LH
81506-19185

AE70,KE70,TE70,71..CP

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-12650

AE70,KE70,TE70,71..CP

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12640

AE70,KE70,TE70,71..CP

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12640

AE70,KE70,TE70,71..CP

 1
81555-12651

AE70,KE70,TE70,71..CP

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-12650

AE70,KE70,TE70,71..CP

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-12640

AE70,KE70,TE70,71..CP

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-12640

AE70,KE70,TE70,71..CP

 1
Common parts
82711-12150
82711-12220
90119-06005
90179-05095
90461-06142
93219-14010
93219-14020
93510-14010
